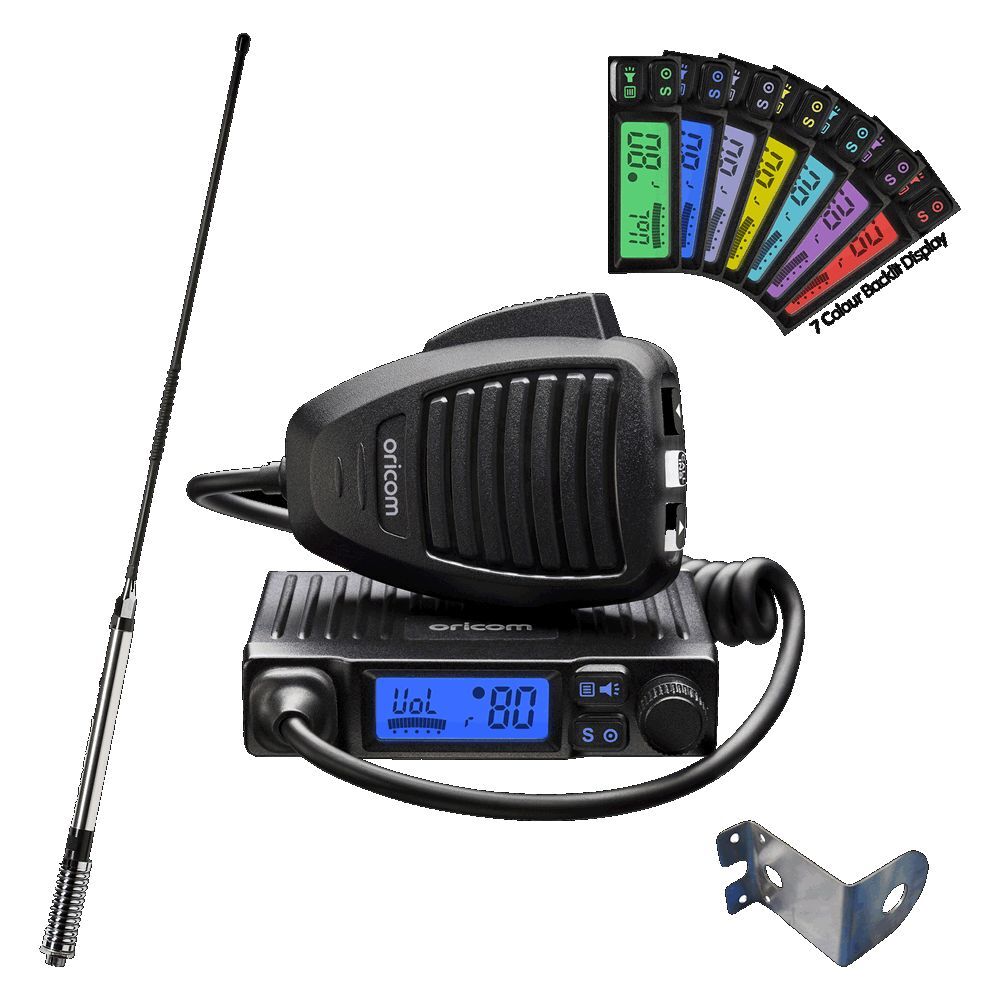

We recommend this radio for customers who just want a basic radio with basic send and receive functions and also for customers who don't have much room or space within the vehicle. You really don't need too much than this for basic users. Our customers ask us for a basic radio and this is the one for you.

• 5.0 Watts (max TX power)
• 80 Narrowband Channels*
• Ultra compact micro size
• Flip LCD function
• Automatic level control (ALC) for consistant audio levels
• Heavy-duty microphone with volume control
• 38 CTCSS and 104 DCS Codes
• 7 Colour backlit display
• Duplex (range extender)
• Open/Group Scan
• Priority channel
• Rotary channel select
• Digital squelch control
• Busy channel lockout
• Die cast metal chassis with integrated heat sink
• Optional external speaker (3.5mm jack)

Dimensions of transceiver: 22.5(h) x 100 (w) x 84 (d) mm

Designed and engineered in Korea

• Compliance AS/NZS 4365:2011
• Frequency Range 476.425 - 477.4125 MHz
• Number of TX/RX Channels 80 UHF CB (75 Voice channels)
• Channel Spacing TX/RX 12.5KHz
• Operating modes Simplex, Repeater TX offset (+750kHz)
• Scanning Speed 130 msec per channel
• Automatic Level control (ALC) For consistant audio levels
• Antenna Impeadance 50 Ohms
• Operating Volts nominal 13.8 VDC
• Operating Volts Range 10 to 15 VDC
• Over Voltage Protection voltage regulator
• Over Current Protection 2 Amp fuse
• Reverse Polarity Protection Series diode
• Frequency Stability +/- 2.5ppm

• RF Output Power 5watts max.
• Modulation F3E (FM)
• Maximum Deviation 2.5KHz
• Spurious Emissions < -70 dBc
• TX Audio pre-emphasis + 6dB/octave from 300Hz to 3kHz
• Current Consumption during TX 1.5 Amps with 50 Ohm antenna termination

• Circuit Type Dual conversion superheterodyne
• IF Frequencies 1st IF = 21.4MHz , 2nd IF = 450kHz
• Current Consumption during RX 200mA
• Sensitivity < -121 at 12dB SINAD
• Selectivity +/-3.75kHz min @ 3dB to +/-15kHz max @ 40dB
• Intermodulation Immunity > 70dB
• Spurious Immunity > 70dB
• Audio Output Power 3 Watts Maximum
• RX Audio de-emphasis -6dB/octave 300Hz to 3kHz
• Audio frequency response 300Hz to 3kHz
• External speaker jacks for optional 8 Ohm mono speaker (3.5mm jack)

A 6.5dbi antenna with elevated feed, counter balanced spring and solid black fiberglass whip. This unit includes 4.3m of low-loss coaxial cable and a PL259 connector.

This antenna configuration is by far the most popular on the Australian market. Ideal for use in four-wheel drives, or for vehicles with diesel engines. The heavy duty spring is designed to absorb the vibrations from the engine and/or rough corrugated roads for better performance.

This antenna allows for a variety of mounting options from bullbar, gutter to wing mount. A specific bracket will be required depending on the mounting option chosen (bracket not supplied). The 6.5dBi high-gain low SWR antenna gives the best "all-round" transmit and receive performance.

• Ground Independent
• Solid Construction
• Interchangeable Top Antenna
• 4.3m Of Cable + PL259 Connector
• Stainless Steel, PVC & Brass
• 6.5dB gain
• SWR < 1.5 to 1 over 12Mhz
• No tuning Required
• Made in Australia
• 5 Year Warranty
• 950mm in height

From off-road recreation to communication in the transport industry, our range of Oricom Genuine UHF Accessories are built with quality, performance and price in mind. The BR100 "Z" antenna bracket is suitable for boot or bonnet gutter mount.
