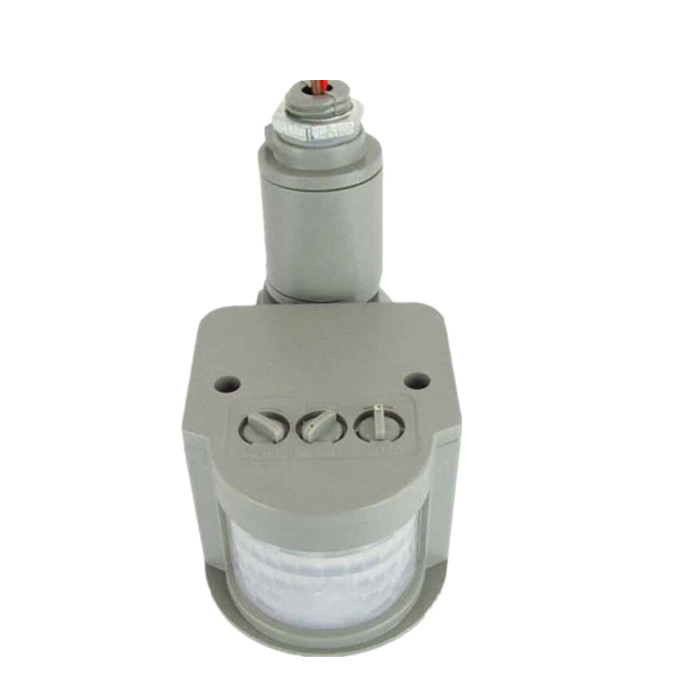

Outdoor Wall Light Lamp LED PIR Infrared Motion RF Sensor Detector AC90V~250V

Descriptions:
1. Easy to install.
2. Automatic, convenient, safe and practical.
3. It has the function of power and detection indication.
4. The motion sensor can identify day and night automatically.
5. It has wide detection range made up of up and down, left and right service field.
6. This product is a new type of energy-saving lighting switch, it adopts high sensitivity detector, integrate circuit and SMT.
7. It utilizes human motion infrared rays as control signal sources, when one enters the detection field, it will start the controlled load at once.

Specifications:
Color: Grey, Black
Material: ABS
Working Rotation: 180??
Voltage: AC90V~250V
Standard: LVD, EMC, CE, RoHS
IP Rating: Indoor application IP44
LUX Setting: 2-2000lux svr adjustable
Size: As shown on the picture
Induction lighting time: 5s~6min adjustable time
Detection distance: Approx 12M, installation 1.5-2.5M High

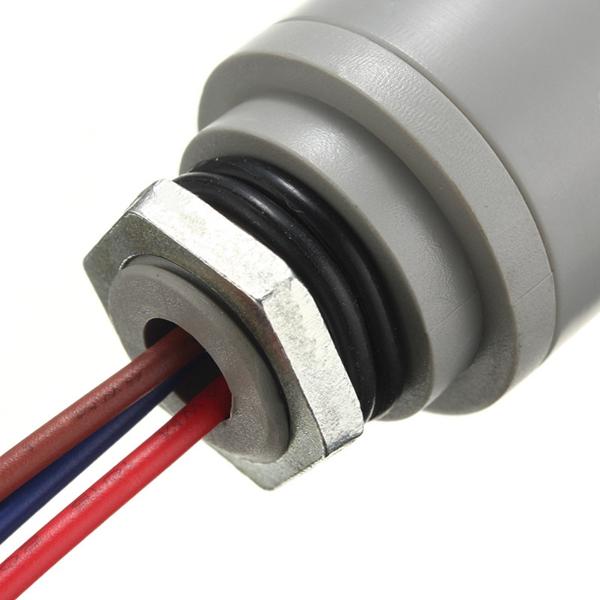

Connection:
Blue color: Zero line
Brown color: Live wire
Red: Ground wire
Output: Maximum 1000W incandescent lamp, 100W fluorescent lamp ,
Exhaust fan 100W, Motor 100W, Electric bell 100W

NOTE:
The item can be less sensitive if you go forward the detector,
but it can be sensitive if you go down the cross section.
If the person stop moving under the motion sensor, it can't light on also.
When it is very hot in summer, then temperature of environment is nearly the same as people, it may not detect well.

Package Included:
1 x Motion Sensor
