Outdoor WiFi 7 Antenna 4X4 MIMO 2100-7200 MHz Omni pattern Bluetooth M2M IoT

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Hurry! 2 items left!
$195

Collect 195 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by RF Outlet
Secure ways to pay at checkout

Description:

Brand Maswell

ITEM ID:AN_Master_Cubic_4W

All WiFi Bands Supported: WiFi 2.4GHz, WiFi 5GHz, WiFi 6 and WiFi 6E at 7.125GHz 4X4 MIMO version

All Bluetooth Zigbee Wimax bands Supported

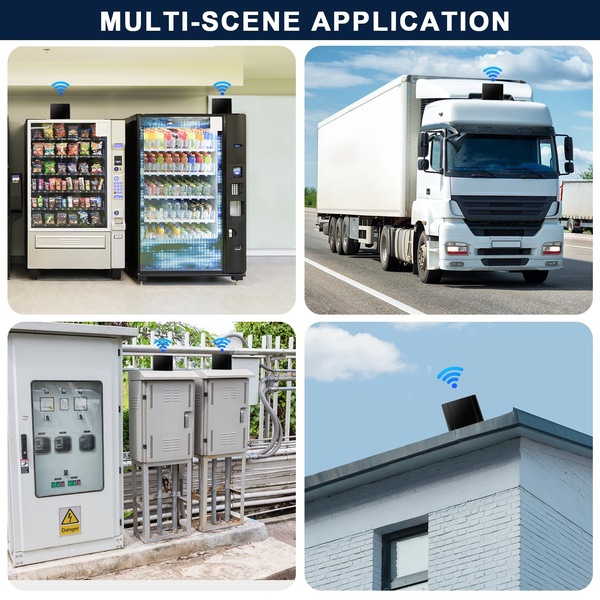

M2M Communication, Router signal reception, Vending Machine and IoT Boxes outdoor and indoor applications.

IP66 waterproof standard passed: EN 60529:1991+A1:2000+A2:2013+AC:2019 and GB/T4208-201

Screw Mount with 3M adhesive under the radome

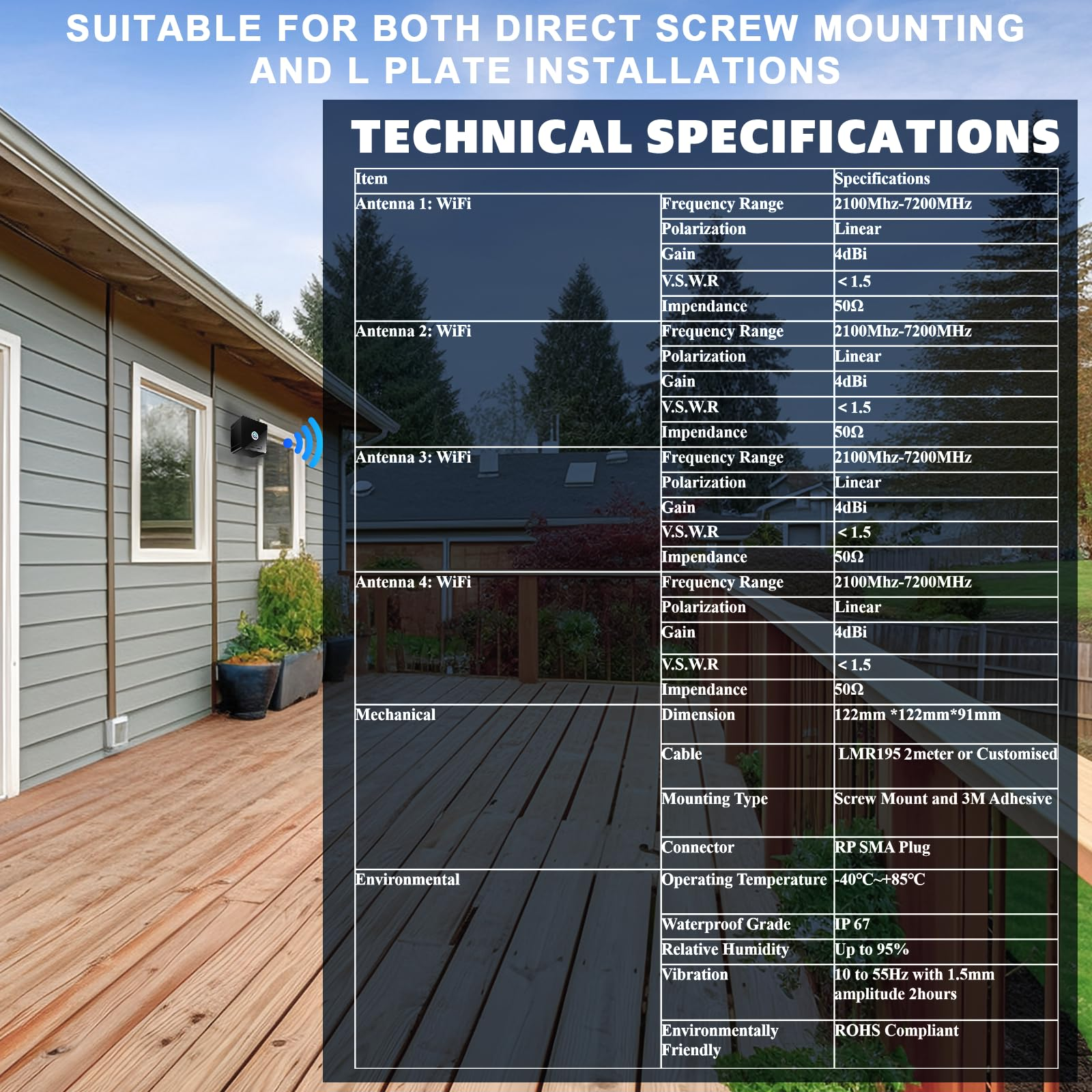

Specifications:

Specifications

Antenna1-Antenna 4:

Operation Frequency 2100-7200MHz

Gain: 4dBi Omnidirectional

V.S.W.R(5m) 2 : 1

Band Width 5100Mhz
Impendence 50 ohm

Polarization Type Linear

Cable LMR195 (2m)
Connector RP SMA plug for all 4 leads

Working Temp -40Degrees Celsius~+85Degrees Celsius

Humidity 55%~75%RH

UV Stabilized Yes

Waterproof IP67: EN 60529:1991+A1:2000+A2:2013+AC:2019 and GB/T4208-201

Size: 122mm *122mm*91mm

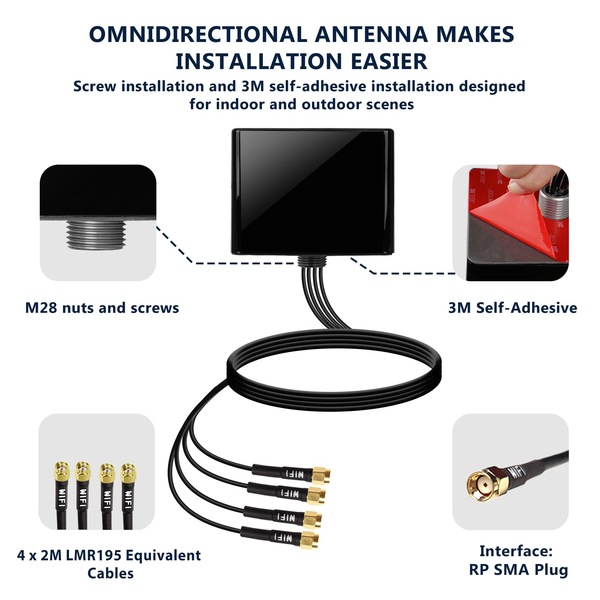

Mounting type: M24 Screw Mount and 3M adhesive

  • Works for 2.4GH WiFi, WiFi 5G ,WiFi 6, WiFi 6E and all the Bluetooth Wimax Zigbee equipment
  • Square shape with M28 screw and 3M adhesive mounting.
  • Suitable for various routers indoor/outdoor wifi/bluetooth/zigbee/wimax signals transmitting and reception

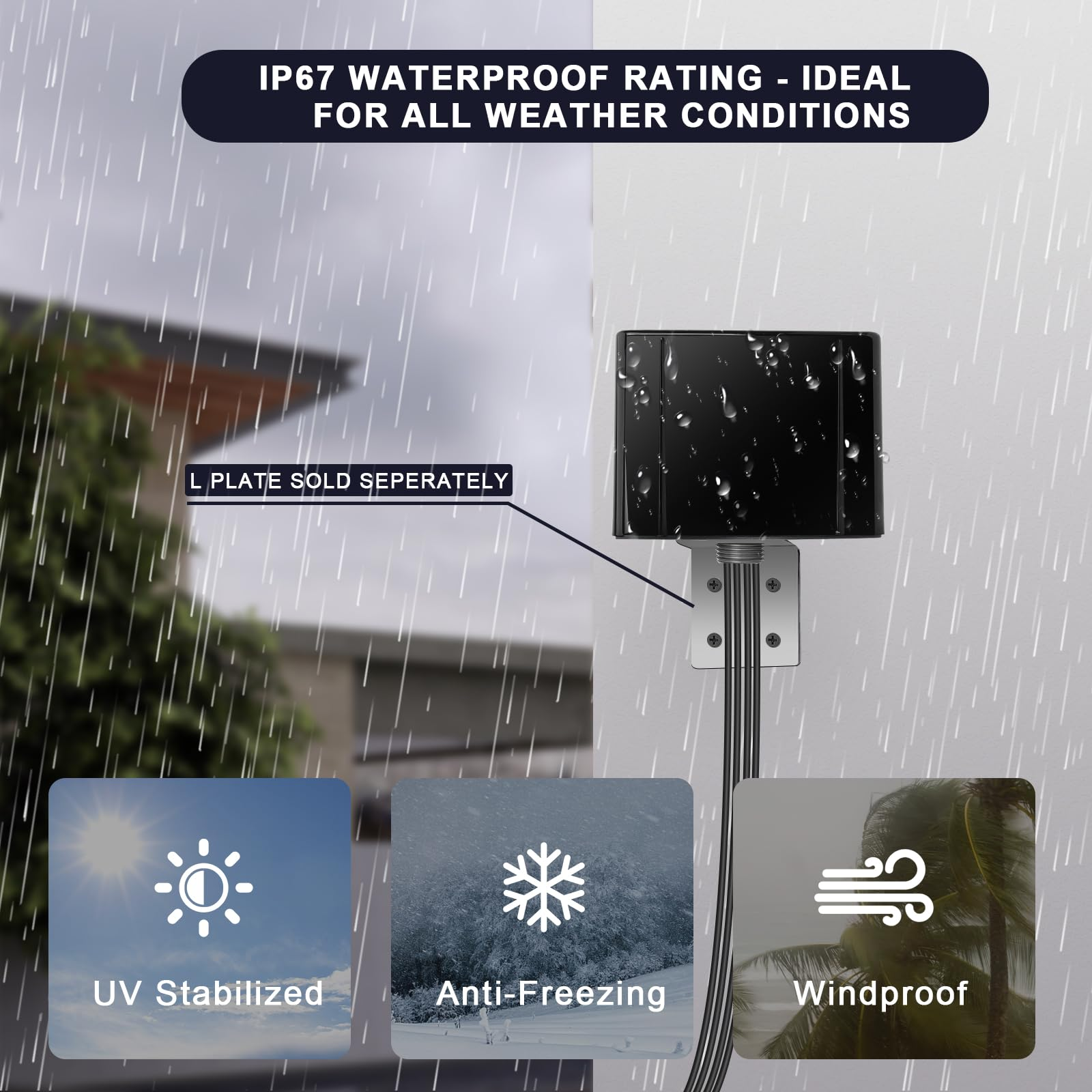

  • IP 67 waterproof: for all outdoor environment
  • Compatible with M2M communication for Vending Machine IoT Box Vehicular Equipments,
  • Glossy Black Radome with UV stabilized capacity
  • WiFi 6E @7.125GHz Suitable!
