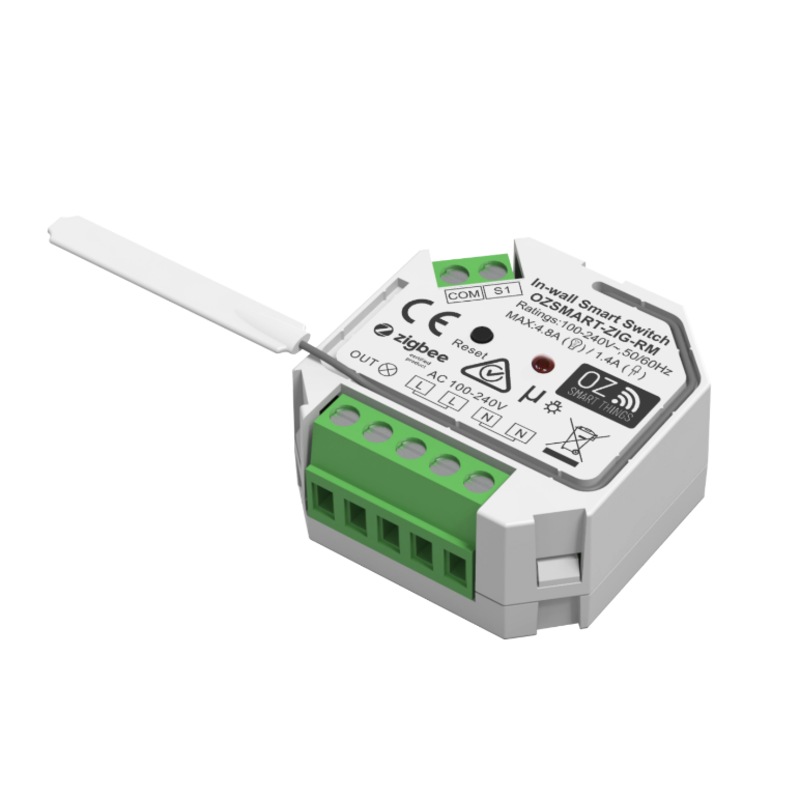

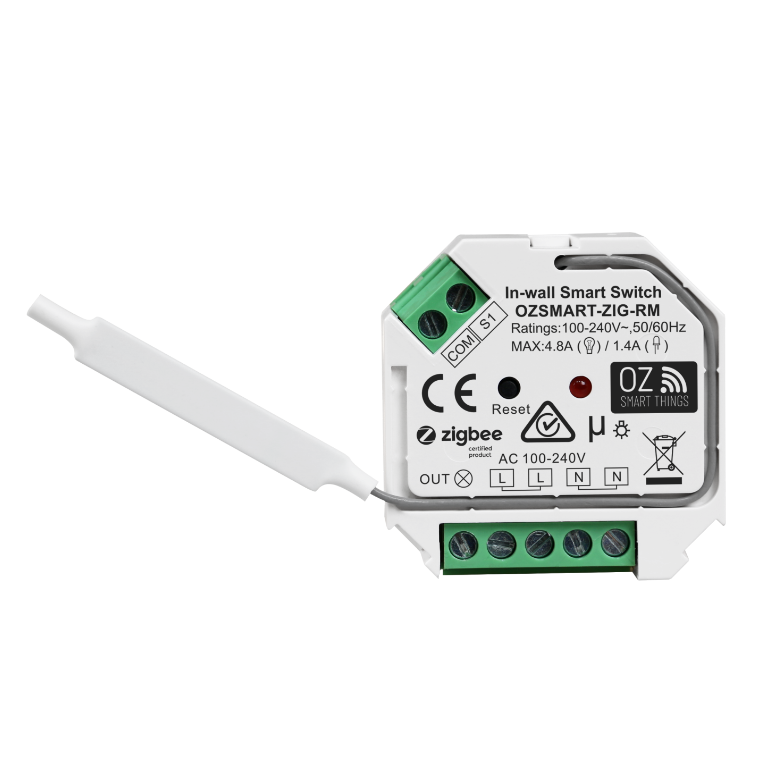

Oz Smart Zigbee Relay Puck (Toggle)

Oz Smart Zigbee Relay in Wall Switch Module, Works with

Philips Hue and Homekit Compatible.

Zigbee is an IEEE 802.15.4-based specification for a suite of high-level communication protocols used to create personal area networks with small, low-power digital radios, such as for home automation!

The technology defined by the Zigbee specification is intended to be simpler and less expensive than other wireless personal area networks (WPANs), such as Bluetooth or more general wireless networking, such as Wi-Fi. Applications include wireless light switches, home energy monitors, traffic management systems, and other consumer and industrial equipment that requires short-range low-rate wireless data transfer.

Its low power consumption limits transmission distances to 10-100 meters line-of-sight, depending on power output and environmental characteristics. Zigbee devices can transmit data over long distances by passing data through a mesh network of intermediate devices to reach more distant ones. Zigbee is typically used in low data rate applications that require long battery life and secure networking. Zigbee automatic networking technology, no manual code matching, simple system debugging. App Control -Control switches from anywhere with your smartphone.

1. Voice Control -Works perfectly with Amazon Alexa, Google Home, and Apple Homekit
2. Timing-Set scheduled/countdown timers to turn on/off at a specified time
3. Share Control- Control your smart home together with your family.
4. Smart Scene-Trigger on/off by temperature, humidity, or by environmental conditions
5. Easy to install
6. Status indication
7. Works with standard toggle switches, Not Momentary push buttons. See our other listing

Product parameters

Input Voltage: 100-240VAC

Output Voltage: 100-240VAC

Output Current: Load: Resistive load: max. 4.8A Capacitive/Inductive load: max. 1.4A

Product Data Size (LxWxH) 45.5x45x20.3mm

Frequency: Wifi 2.4G (Requires Zigbee Controller see below)

Support IEEE 802.15.4 PHY/MAC

Routing Function Enabled: No

Power Monitoring: Yes

Tested with the following Zigbee controllers:

FIBARO Home Center 3 (HC3)

SmartThings / Aeotec Hub

ZemiSmart Hub

Azoula Zigbee Homekit Hub

ConBee II Zigbee

Tuya Zigbee

TRADFR (Is possible contact us)

HUE (Including Homekit)

Online Help Page and Manual
