Description:
Certification: Battery Shipping Report
APP: v380
Product parameters:
Sensor type: 1/2.9" Progressive Scan CMOS
Illumination: Color: 0.1Lux@(F2.0,AGC ON), 0 Lux with Light
Lens: 4.0mm F1.6, field of view: 110°5°; 4.0mm F1.6, field of view: 110°5°
Shutter: 1/3s ~1/100.000s
Day and night conversion mode: ICR infrared filter type
Wide dynamic function: Support digital wide dynamic
Image:
Pixels: 3MP+3MP+3MP (binocular 3 screens)
Image size: Main stream: 1920x2160: Sub stream: 640x720
Tilt rate: 5fps
Image settings: Support image inversion
Image enhancement: 3D Digital noise reduction, strong light suppression, digital wide dynamic
Compression standard:
Video compression standard: H.265 AVI
Video compression bit rate: 32Kbps~1.5Mbps bit rate adaptive
Audio compression standard: AAC
Audio compression bit rate: 8kbps
Interface and function:
Pan-tilt control: horizontal direction: 355° vertical direction: 90°
Communication interface: WiFi wireless transmission (support 2.4GHz, 2.4GHz+5.8GHz)
Audio interface: built-in 1 microphone, 1 speaker
General function: NTP time synchronization, time watermark, support Micro SD card (128G) local storage video, support cloud service
Abnormal detection: motion detection, motion tracking, human detection
Restore factory settings: device body recovery
Others:
Power supply: photovoltaic battery power supply/DC 5V/2A (max)
Power consumption: about 5W in working state
Photovoltaic panel: 7W
Zoom: 10x electronic zoom
Adaptability to working environment: Working temperature: -10℃~+50℃; Working humidity: Relative humidity ≤75%
Fill light: Gun camera: 4 infrared and white light integrated lamp beads; Ball camera: 4 infrared lamps + 4 white light lamps
Night vision distance: infrared fill light 10m~15m (depending on the specific environment)
Battery capacity: 8000 mAh (built-in 4 18650 battery packs)

Product features:
1. Upgraded 3 screens, binocular 3 screens;
2. Fully upgraded rechargeable lithium battery, ultra-long battery life, intelligent low power consumption, no need for frequent charging;
3. Ultra-clear pixels, fine picture quality, Close to real scene;
4. Outdoor IP66 waterproof protection, waterproof, dustproof, lightning protection;
5. PIR human body sensing alarm, can trigger alarm and push alarm to user's mobile phone;
6. Infrared night vision/full-color night vision, default ordinary infrared night vision, if you need full-color night vision, you can set it in APP;
7. Full-duplex voice intercom, easy call, mobile phone APP can communicate with the camera end;
8. PTZ rotation, full coverage, can be viewed anytime, anywhere through mobile phone APP;

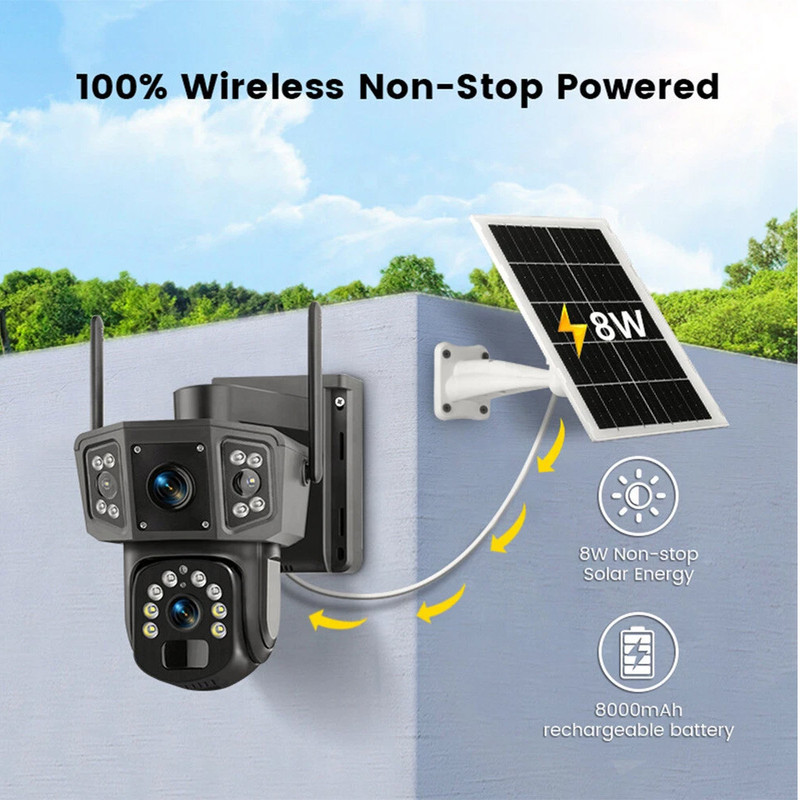

9. Smart charging, automatic charging through solar panels during the day, battery continues to work at night;
10. Two storage methods, video screen playback at will, support card storage and cloud recording storage (purchased separately).

Product list:
Camera + bracket * 1
Solar panel with extension cable * 1
Installation package * 1
Instruction manual * 1
