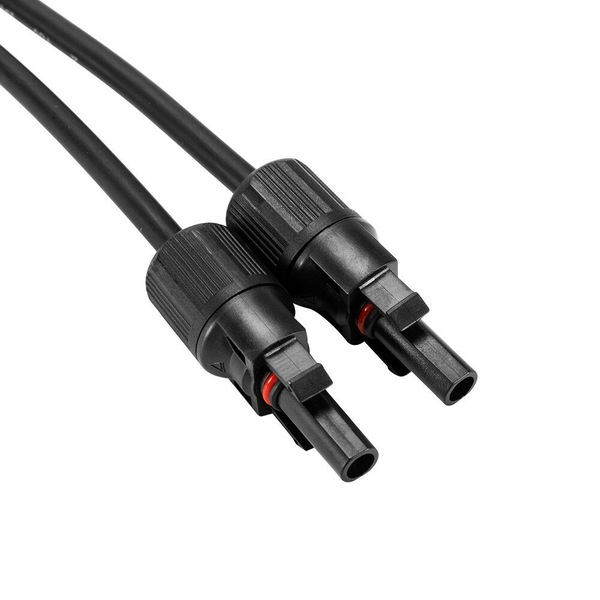

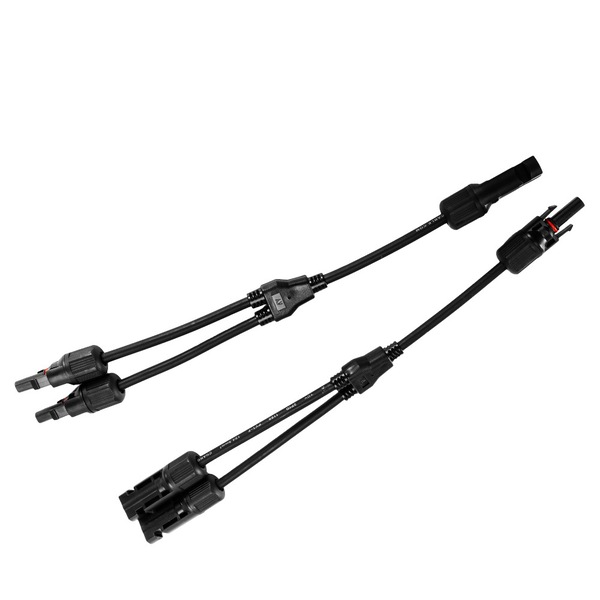

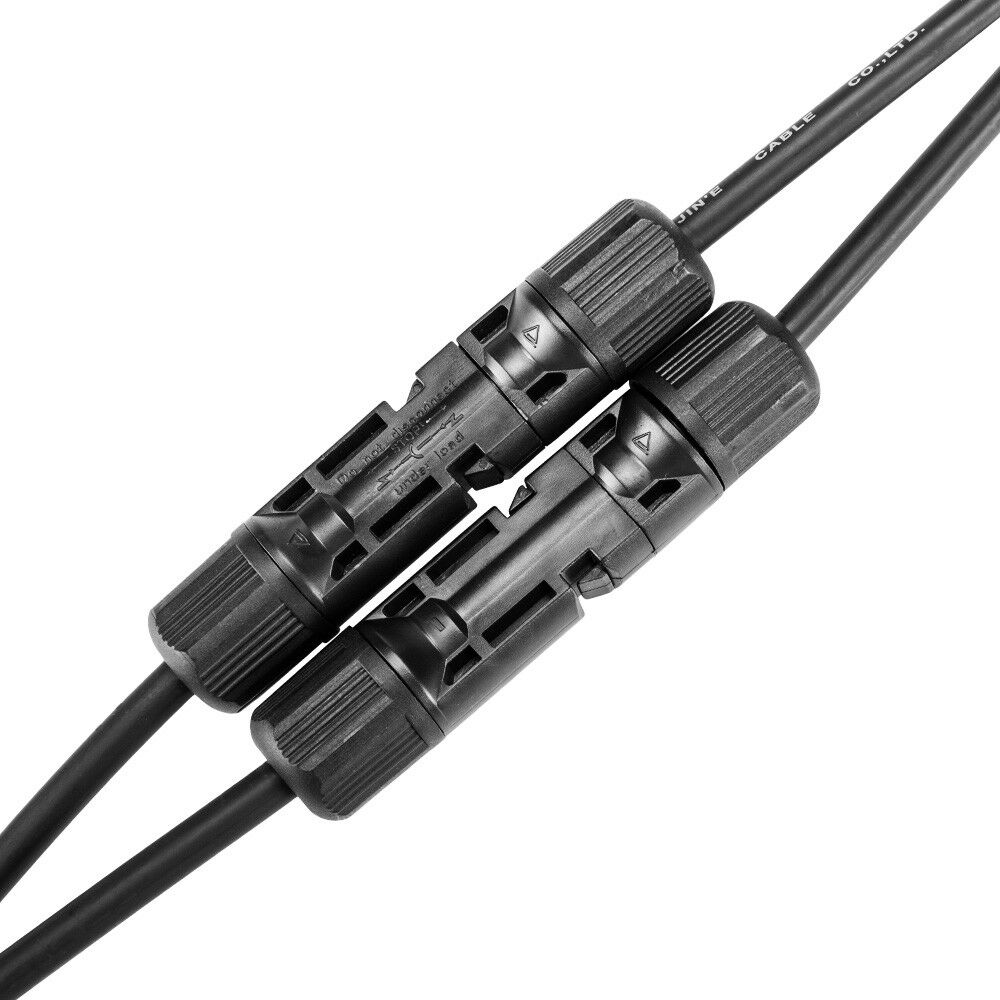

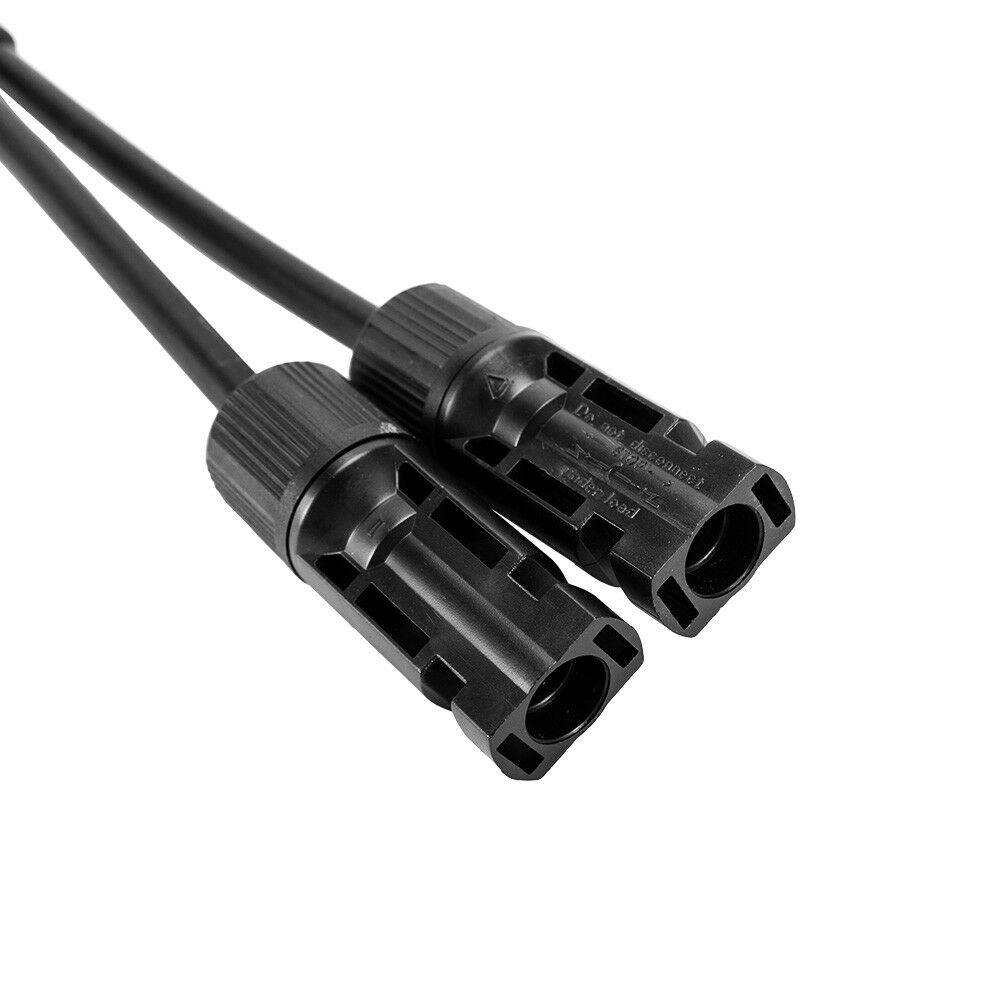

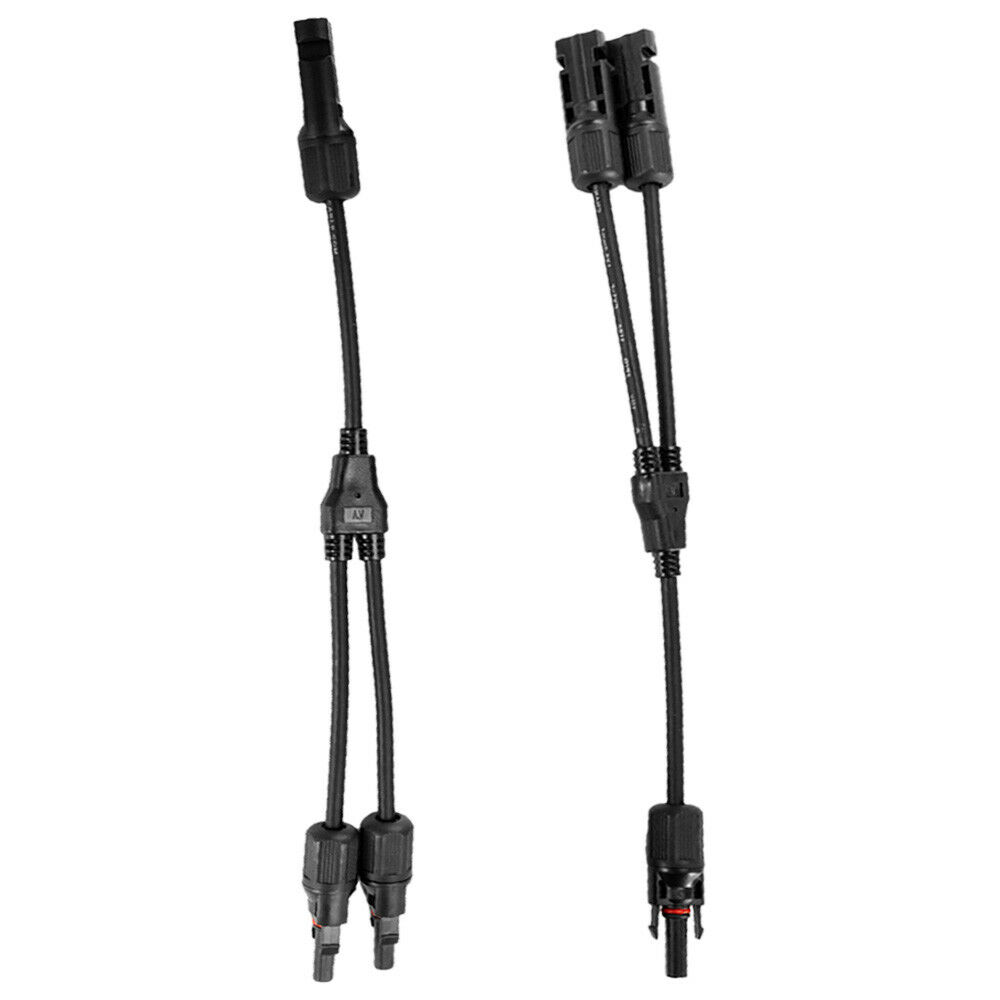

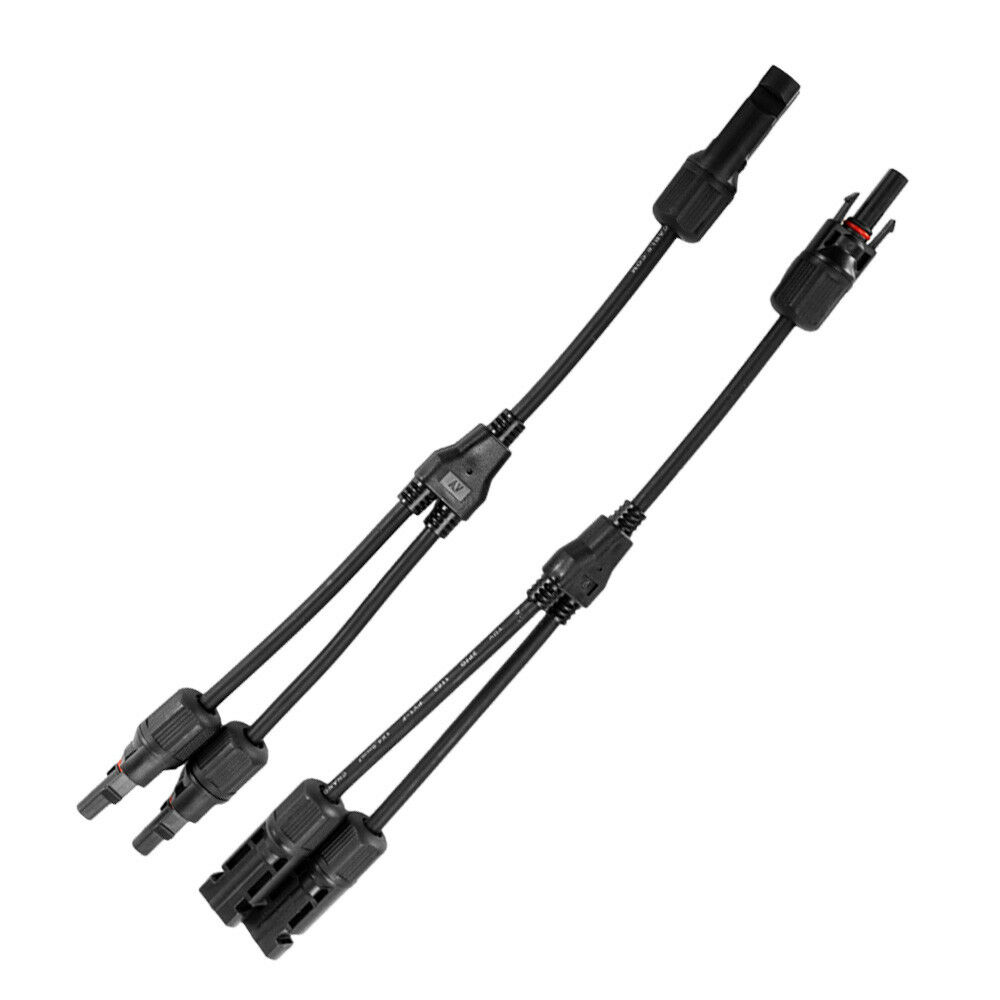

Pair Y Branch Connectors Solar Cable Plug Inline Solar PV Panel IP67 2 connection

1 Review

Unavailable

Pair Y Branch Connectors Solar Cable Plug Inline Solar PV Panel IP67 2 connection

1 Review

Shop More Products

DESCRIPTION
.

FEATURES
Protection Class:2
Rated Current:22(2.5 mm),30A(4,6 mm)
Protection Degree:IP2X,unmated;IP67,mated
Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument
Compatible with PV cables with different insulation diameters
Resistance of extra high & low temperature and fireproof
Load capability with big current and high voltage
Locking system Snap in

SPECIFICATIONS
Rate Voltage:1000V
Rated Current:30A(4mm2,6mm2)
Waterproof Rate:IP 67
Test Voltage:6000V(50Hz)
Insulation material:PPO
Contact material Copper:Sliver plated
Safe Class :2
Flame Class:UL94-V0
Contact resistant of plugg Connectors: 5m
Insertion force:50N

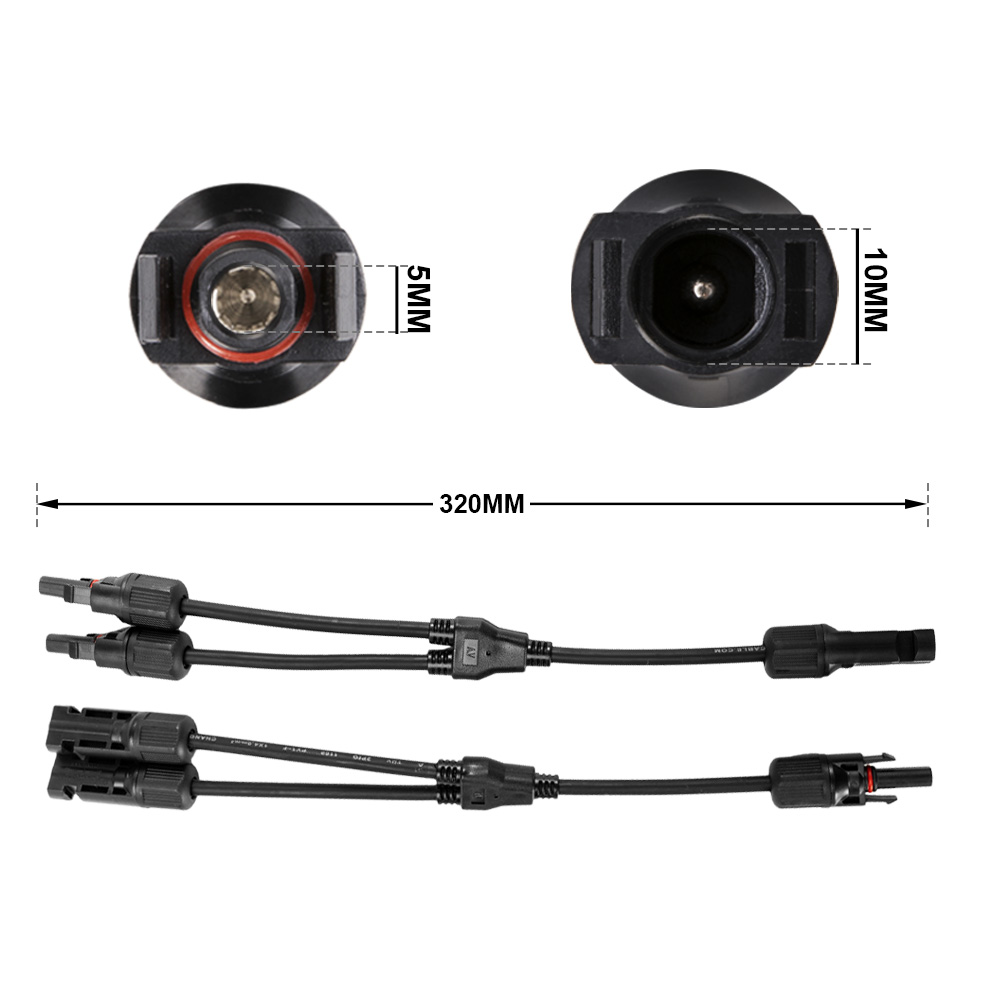

Diameter of Pin or Socket:4mm
Locking System:Snap in
Suitable cable :2.5mm2/4mm2/6mm2(AWG14/12/10)

PACKAGE INCLUDES
1x Male Y Type Solar Panel cable Connector
1x Female Y Type Solar Panel cable Connector
