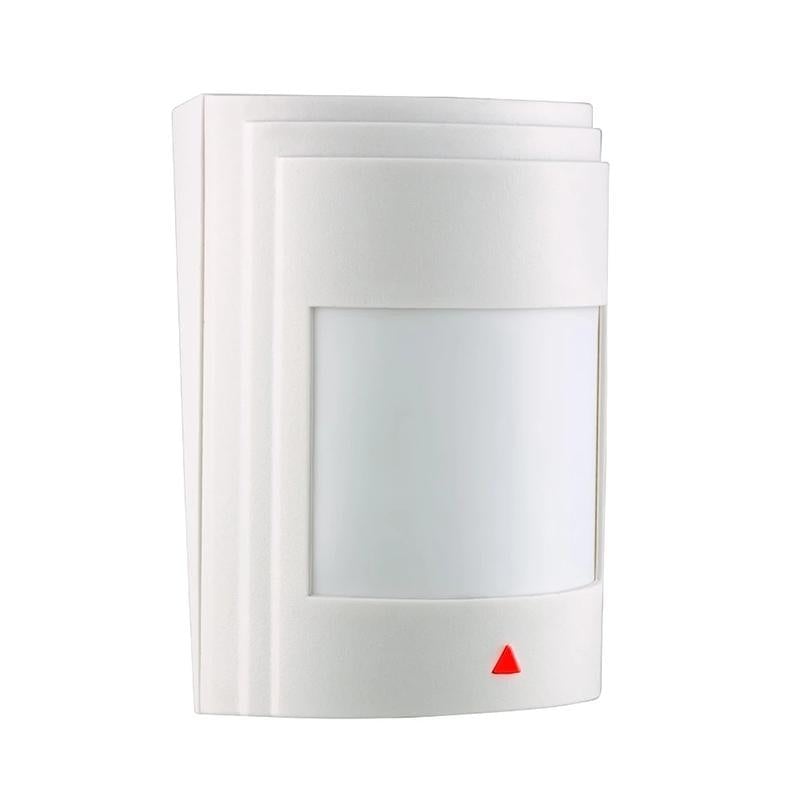

Passive Infrared Motion Sensor Alarm - Wide Angle
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
Collect 36 Everyday Rewards points
Dispatch in 2 business days
Collect 36 Everyday Rewards points
Dispatch in 2 business days
Delivery Timeline:8-12 days.
Features:
? Auto pulse signal processing with 2 adjustable levels
? Auto temperature compensation
? High density SMD design
? Additional connector for EOL resistor
? Fire resistant case
? Low noise, high sensitivity, dual element PIR sensor
? Two levels of pulse count sensitivity: 1-3 pulses or 2-6 pulses
? Second generation Fresnel lens
? White light immunity
? 22 zones: 9+5+5+3
? Green LED alarm indication (can be disabled)
? N.C. alarm output with rating of DC 28V, 0.15A
? N.C. anti-tamper switch with rating of 0.15A, 28Vdc
? Power input of DC 9-16V, 18mA
? Operating temperature range of -10C to 50C
? Operating humidity of 95%
Specifications:
? Material: Fire Resistant Case
? Sensor: Low Noise, High Sensitivity, Dual Element Pir Sensor
? Lens: Second Generation Fresnel Lens
? Coverage: 12M x 110 Degrees
? Zones: 22 (9+5+5+3)
? Installation Height: 1.1-3.1M
? Alarm Output: N.C., Rating Dc 28V, 0.15A
? Anti-Tamper Switch: N.C., Opens when Cover is Removed, Rating 0.15A, 28Vdc
? Power Input: Dc 9-16V, 18Ma
? Operating Temperature: -10C to 50C
? Operating Humidity: 95%
? White Light Immunity: Yes
Package Includes:
? 1 x Pa-476 Wired Passive Infrared Wide Angle Pir Motion Sensor Infrared Detector Alarm White
