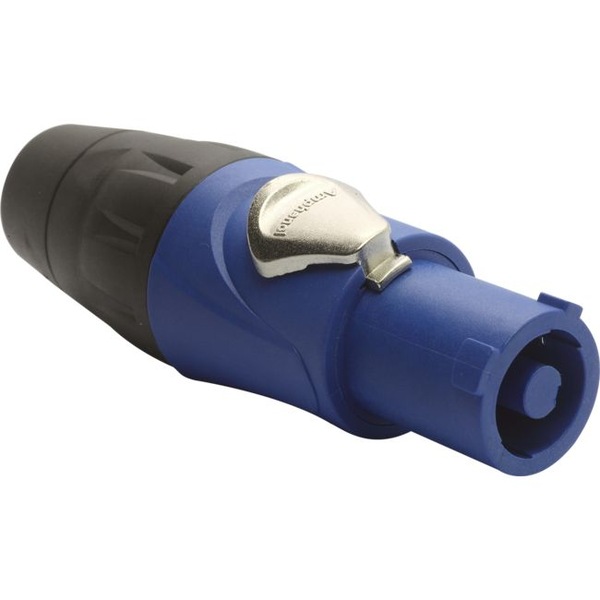

AMPHENOL PD4020 25A 250Vac Powercon Connector Blue Keyed For Power In Put Quick Release, Vibration

Image 1
Limited Stock
$10

Collect 10 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Radio Parts
Secure ways to pay at checkout
Overview
PD4020 25A 250VAC POWERCON CONNECTOR BLUE KEYED FOR POWER IN PUT
HP Series connectors are suitable for AC power supply where a latch locking connector is required. They are rated at 25 A / 250 Vac. Connectors are keyed and colour coded forpower-in (Blue) and power-out (Grey).

Features

  • Quick release, vibration resistant latch lock
  • 3 pole
  • Screw Terminals
  • Chuck type cable clamp
  • 25A Current rating
  • Thermoplastic housing
  • Industry standard mating
  • UL, cUL recognized components (File no. E339831)

Specs

  • Number of contacts: 2 + PE
  • Termination: Screw
  • Flammability: UL94HB
  • Environmental: Complies with EU RoHS 2 Directive 2011/65/EU
  • Rated Operating Voltage 250VAC
  • Test Voltage AC RMS 1500V
  • Current carrying capacity 25A
  • Typical Contact Resistance: =3mO
  • Insulation Resistance (initial): =2GO
  • Insulation Resistance (after damp heat test): =1GO
  • Protection Class: IP54
  • Operating Temperature: -25°C to +75°C (-13°F to +167°F)
  • Weight - Thermoplastic: 32g (0.070lb)
  • Typical Cable retention force: 200N (Subject to cable material and O.D.)
  • Cable O.D range (Chuck Clamp): 5 - 15mm’ (0.19" -0.59")
  • Conductor Size (Screw Terminals): 2.5mm’ (AWG14)
  • Connector Shell / Finish: PA66 GF30 / Black
  • Insulators: PA66 GF30
  • Cable Boot / Backshell: Santoprene / PBT
  • Cable Clamp (Chuck): P.O.M
  • Contact (Material / Plating): Brass / Silver


Weight: 0.036
