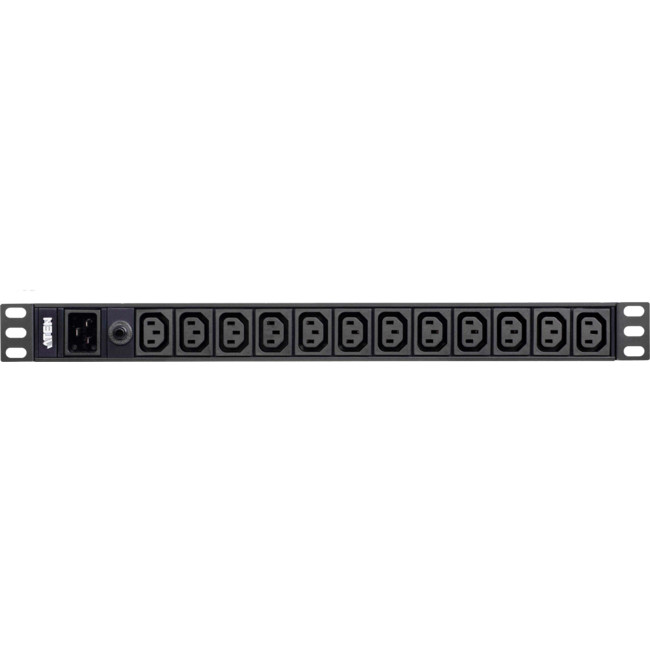

ATEN PE0112G 12 Port 1U Pdu 10A Iec-C13 X 12 Space Saving - 1U Rack Mount Design 12 PORT 1U
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
Collect 128 Everyday Rewards points
Collect 128 Everyday Rewards points
The PE0112 series Basic PDU contains 12 AC outlets. The PE0112 series Basic PDU features a space-saving 1U design that allows it to be mounted vertically on the outside of a rack, resulting in a moreeffi cientuse of space in the server room, while providing 12 AC outlets.
Electrical | |
Nominal Input Voltage | 100-240 VAC |
Maximum Input Current | 10A(Max) |
Input Frequency | 50-60 Hz |
Input Connection | IEC-320 C14 |
Input Power | 2400 VA(Max) |
Outlet Type | (12) IEC 320 C13 |
Nominal Output Voltage | 240V |
Maximum Output Current (Outlet) | 10A(Max) |
Maximum Output Current (Bank) | 10A(Max) |
Maximum Output Current (Total) | 10A(Max) |
OPD(Overcurrent Protection Device) | Yes |
Physical Properties | _ |
Dimensions (L x W x H) | 48.80 x 4.40 x 4.50 cm (19.21 x 1.73 x 1.77 in.) |
Weight | 0.62 kg ( 1.37 lb ) |
Power Cord Length | 10ft(3×1.0mm2) |
Environmental | _ |
Temperature (Operating / Storage) | 0 - 40°C / -20 - 60°C *When the environmental temperature comes close 40 degrees, it is recommended to lower the load to 60% to comply to the safety regulations. |
Elevation (Operating / Storage) | 3000m |
Compliance | _ |
EMC Verification | CE Class A |
Safety Verification | CE,LVD |
Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
GTIN: 4719264647178
Estimated Delivery Time Frame:4-8 business days
Ask a Question About This Product
Reference ID: 769573
