Application

• These pumps are widely used in civil, agricultural
• and industrial applications such as for supplying water, in air
• conditioning and cooling systems, for irrigation, etc.

Features

• Manometric suction lift up to 7 m
• Liquid temperature between -10 °C and +90 °C
• Ambient temperature between -10 °C and +40 °C
• Max. working pressure 10 bar
• Continuous service S1

Construction

• PUMP BODY Cast iron complete with threaded ports in compliance with ISO 228/1
• BODY BACKPLATE Cast iron
• IMPELLER Stainless steel for CP160 Brass for CP 210
• MOTOR SHAFT Stainless steel AISI 431
• MECHANICAL SEAL
• Pump Model CP 160
• Seal Model FN-18
• Shaft Diameter Ø 18 mm
• Materials
• Stationary ring Graphite
• Rotational ring Ceramic
• Elastomer NBR

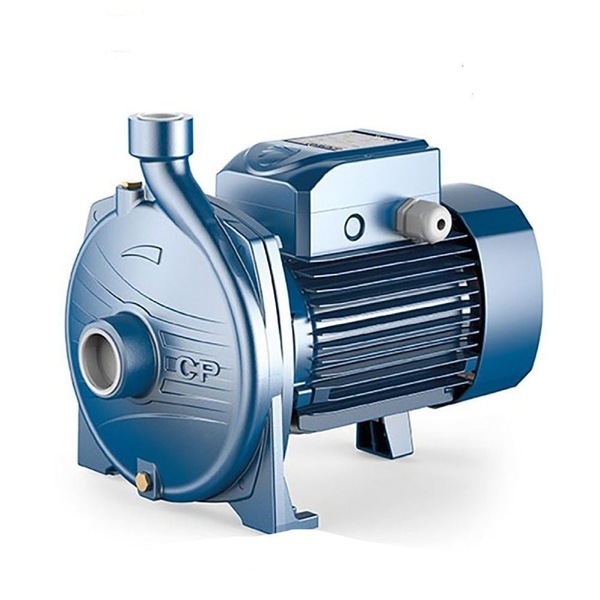

The product image shown is for illustration purpose only
