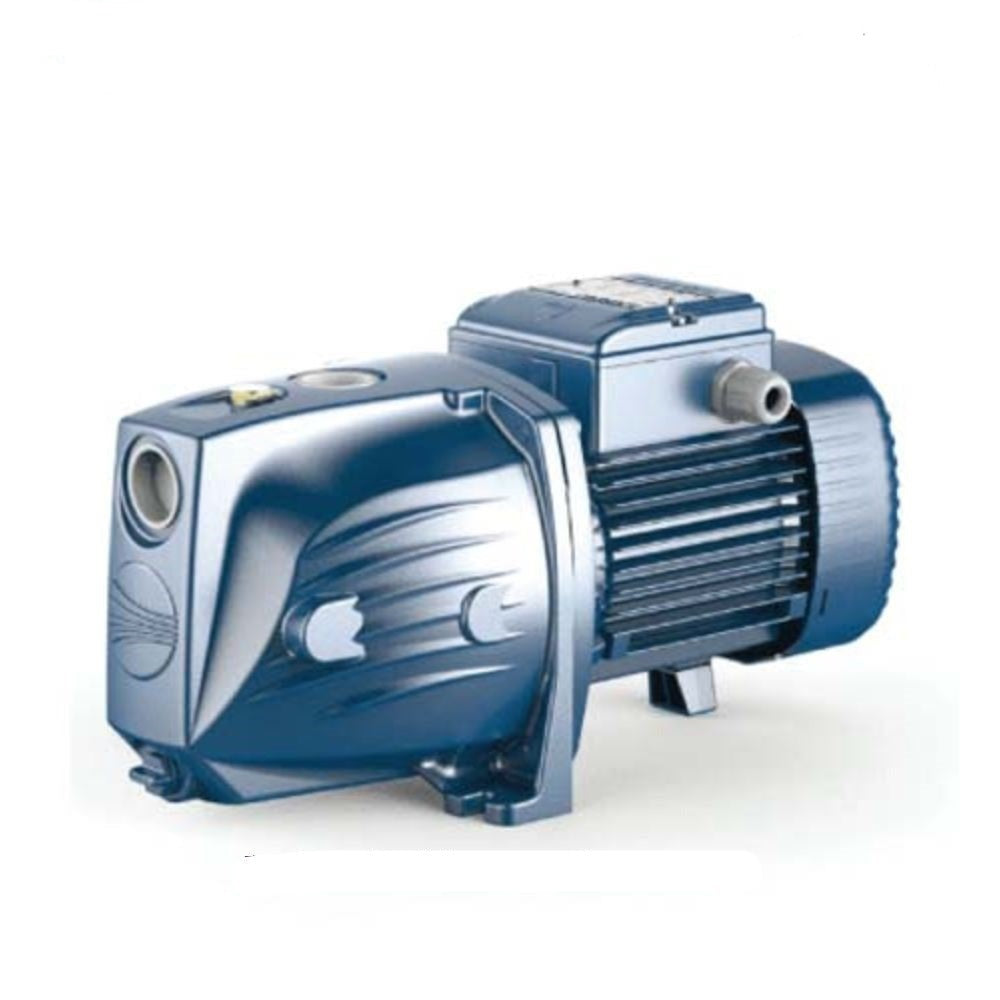

Pedrollo Self Priming Centrifigul Irrigation Water Transfer Pump

Image 1
Image 2
Image 3
Limited Stock
From$654.48

Collect 654 Everyday Rewards points

Log in to MyDeal to link your card
$75.00 Australia-wide (per-item)
Sold & shipped by Sprinklerpros
Secure ways to pay at checkout
Specifications

PUMP MODEL

JSWM-2A

JSWM-3BM

JSW-3BM

Kw

1.1

1.5

1.5

HP

1.5

2

2

MAX FLOW L/Min.

70

120

120

MAX HEAD

60

57

57

VOLTAGE

240

240

415

Outlet (mm)

25

25

25

Inlet mm

25

32

32

CABLE

1.5





Height mm

200

240

240

Length mm

389

522

522

GW

14.7

25.6

25.6

PHASE

Single

Single

Three

 Application

  • Water supply for Agricultural, Domestic, Commercial and Industrial applications.
  • Irrigation
  • Water Transfer
  • Wash Down
  • Heating and Cooling Systems.

Features

  • Manometric suction lift up to 9 m (HS)
  • Liquid temperature between -10 °C and +40 °C
  • Ambient temperature up to +40 °C
  • Max. working pressure 7 bar
  • Continuous service S1

Construction

  • 1 PUMP BODY Cast iron, complete with threaded ports in compliance with ISO 228/1
  • 2 BODY BACKPLATE Stainless steel AISI 304
  • 3 NOZZLE ASSEMBLY Noryl FE1520PW
  • 4 IMPELLER Stainless steel AISI 304
  • 5 MOTOR SHAFT Stainless steel AISI 431
  • 6 MECHANICAL SEAL
  • Seal Model ring AR-14
  • Shaft Diameter Ø 14 mm
  • Materials
  • Stationary Ceramic
  • Rotational ring Graphite
  • Elastomer NBR

The product image shown is for illustration purpose only
