Pedrollo SS304 Multistage Submersible Pump 240V Single Phase

Limited Stock

From$153.98

Collect 153 Everyday Rewards points

Log in to MyDeal to link your card

$75.00 Australia-wide (per-item)

Sold & shipped by Sprinklerpros

Secure ways to pay at checkout

Specifications

Pump Model	UPm 2/4-GE	Upm 4/5-GE	ASSKITUPF02
Assembly Kit			Assembly Kit to Horizontal Mount UP Series Submersible Pumps
Kw	0.75	1.1
Hp	1	1.5

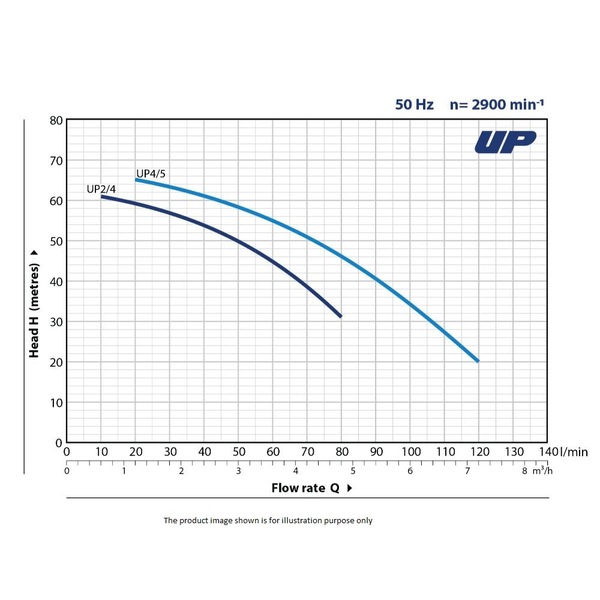

Max Flow L/Min.	80	120
Max Head (m)	61	65
AMPS	6	6.9
Voltage	240	240
Connection Outlet (mm)	32	32
Cable	10
Size(mm) Height	482	509
Width	150	150
GW	14.8	16.2
Phase	Single	Single

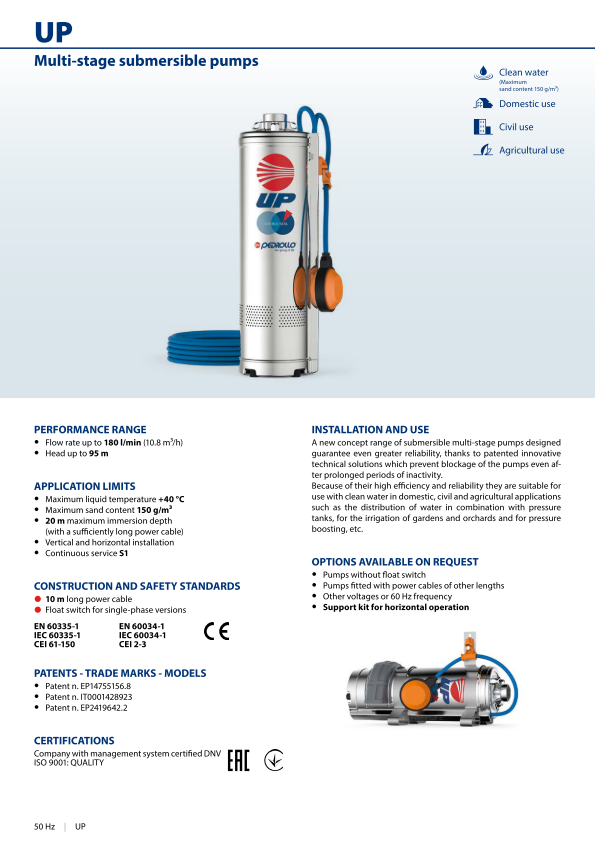

Application

Because of their high efficiency and reliability they are suitable for use with clean water in domestic, civil and agricultural applications such as the distribution of water in combination with pressure tanks, for the irrigation of gardens and orchards and for pressure boosting, etc.

Features

A new concept range of submersible multi-stage pumps designed guarantee even greater reliability, thanks to patented innovative technical solutions which prevent blockage of the pumps even after prolonged periods of inactivity.
Maximum liquid temperature +40 °C
Maximum sand content 150 g/m³
20 m maximum immersion depth(with a sufficiently long power cable)
Vertical and horizontal installation
Continuous service S1

Construction

1 EXTERNAL SLEEVE Stainless steel AISI 304 complete with threaded delivery port in compliance with ISO 228/1
2 MOTOR SLEEVE Stainless steel AISI 304
3 IMPELLERS AND DIFFUSERS Noryl FE1520PW
4 DIAPHRAGMS Stainless steel AISI 304
5 MOTOR SHAFT Stainless steel AISI 431
6 TWO MECHANICAL SEALS SEPARATED BY AN OIL CHAMBER Seal Model STA-17 ST1-16 Shaft Diameter Ø 17 mm Ø 16 mm Position Motor side Pump side Materials

The product image shown is for illustration purpose only

Estimated Delivery Time Frame:7-14 business days

Reference ID: 12585561
