Kit includes:
1 x 200w Monocrystalline Solar Panel ( 12 years product , 25 years output warranty)
1 x 20A solar charge controller

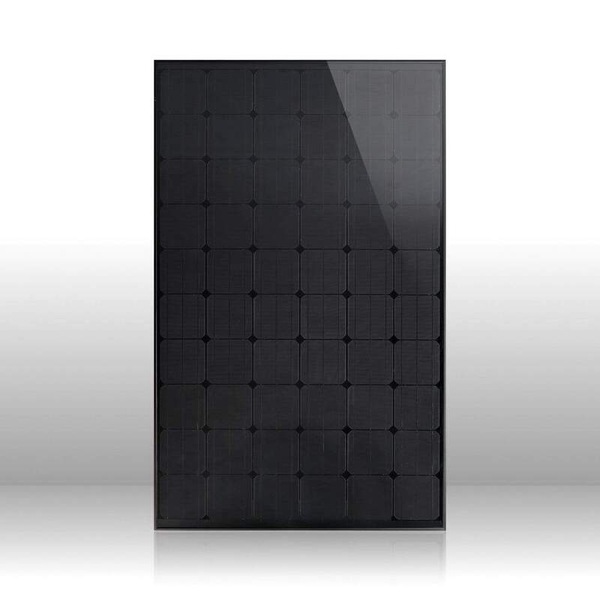

Solar Panel
The Monocrystalline Delta Black Module Series is a module built for the UK, now they are available in AUS.
World First 100% ALL BLACK PV Module.
World First ALL BLACK PV Module Certified by TUV.
12 Years Product Warranty
25 Years Output Warranty
Looking for a solar panel with a great power output but working to a budget? The Perlight 12V 200W Rooftop Solar Panel might just be the thing you’re looking for! Efficient, beautiful and great for the environment, what is there not to love?
A world first design that saves you money is a good start. The Perlight range are a world first for an all black solar panel, which, as we all know from our high school science classes, will increase the efficiency due to the fact that the colour black absorbs more sunlight than other shades and colours. Not only does it look awesome in all black, it also makes it more efficient too! An innovative combination to say the least!
Not only is this an awesome product for those reasons, but the Perlight 12V 200W Rooftop Solar Panel might just win you over with its build quality. The company makes these solar panels to last (with 12 and 25 years guarantees to prove it!) with features such as frost prevention drainage, 2 earth ground points and a static load passed protection bar. Whatever happens to our energy sources in the next quarter of a decade, you can rely on the fact that your solar panels will still be working in the 2040s, how exciting is that?!
| The Delta Black Series from Perlight | Features | ||||||||||||||||
|
|
||||||||||||||||
| Fully Certified and Independantly Tested | Dimensions & Weight | ||||||||||||||||
|
|
||||||||||||||||
| About Perlight Solar | |||||||||||||||||
|
CELEBRATING OUR 33RD ANNIVERSARY Perlight Solar: 1982-2015 |
|||||||||||||||||
| Recent Projects | |||||||||||||||||
|
ITALY 1MW |
|||||||||||||||||
|
CZECH REPUBLIC 1MW |
|||||||||||||||||
|
SLOVENIA 300KW |
|||||||||||||||||
|
NEW JERSEY 18KW For this rural farm in Alloway, NJ a handmade wooden racking system was constructed with SMA inverters.
|
|||||||||||||||||
|
PERLIGHT SOLAR SYSTEM 360KW A fixed angle rooftop system mounted across 4 different rooftops at our world headquarters. Using solar power to make solar modules. Product Specs: |
Charge Controller
PRL 1010, PRL1515, PRL2020, PRL3030,PRL245
The Fangpusun PRL10-45 series of charge controllers is the highlight in the range.
The lates charging technologies, combined with a Fangpusun AtonIC state of charge determination which has been significantly improved once again, result in optimal battery maintenance and control of the module output of up to 900 Wp which can be connected to it.
A large display informs the user about all operating modes with the aid of symbols. The state of charge is represented visually in the form of a tank display. Data such as voltage, current and state of charge can also be displayed digitally as figures on the display. In addition, the controller has an energy meter which can be reset by the user.
Product features
Hybrid controller
State of charge determination with Fangpusun AtonIC (SOC)
Automatic detection of voltage
PWM control
Multistage charging technology
Load disconnection depending on SOC
Automatic load reconnection
Temperature compensation
Common positive grounding or negative grounding on one terminal
Integrated self test
Night light function
Integrated self test
Monthly maintenance charge
Electronic protection functions
Electronic protection functions
Over charge protection
Deep discharge protection
Reverse polarity protection of load, module and battery
Automatic electronic fuse
Short circuit protection at module input
Overvoltage protection at module input
Open circuit protection without battery
Reverse current protection at night
Over temperature and overload protection
Battery overvoltage shutdown
Displays
Graphical LCD display, with background light, could read data in dark
For operating parameters, fault messages, self test
Operation
Simple menu-driven operation
Programming by buttons
Manual load switch
Options
Prepayment interface
External temperature sensor
Alarm contact
Certificates
Approved by the World Bank for Nepal
Compliant with European Standards (CE)
ROHS compliant
Made in china
|
|
PRL 1010 |
PRL1515 |
PRL2020 |
PRL3030 |
PRL245 |
|
Characterisation of the operating performance |
|||||
|
System voltage |
12V(24V) |
||||
|
Own consumption |
12mA |
||||
|
DC input side |
|||||
|
Open circuit voltage solar module |
＜47V |
||||
|
Module current |
10A |
15A |
20A |
30A |
45A |
|
DC output side |
|||||
|
Load current |
10A |
15A |
20A |
30A |
45A |
|
End of charge voltage |
liquid 13.9V(27.8V) gel 14.1V(28.2V) |
||||
|
Boost charge voltage |
14.4V(28.8V) |
||||
|
Equalisation charge |
14.7v(29.4v) |
||||
|
Reconnection voltage(SOC/LVR) |
＞50%/12.6V(25.2V) |
||||
|
Deep discharge protection(SOC/LVD) |
＜30%/11.1V(22.2V) |
||||
|
Operating conditions |
|||||
|
Ambient temperature |
-10℃…+50℃ |
||||
|
Fitting and construction |
|||||
|
Terminal(fine/single wire) |
16m㎡/25m㎡-AWG6/4 |
||||
|
Degree of protection |
IP 32 |
||||
|
Dimension(X x Y x Z) |
187X95X44mm |
||||
|
Weight |
350g |
