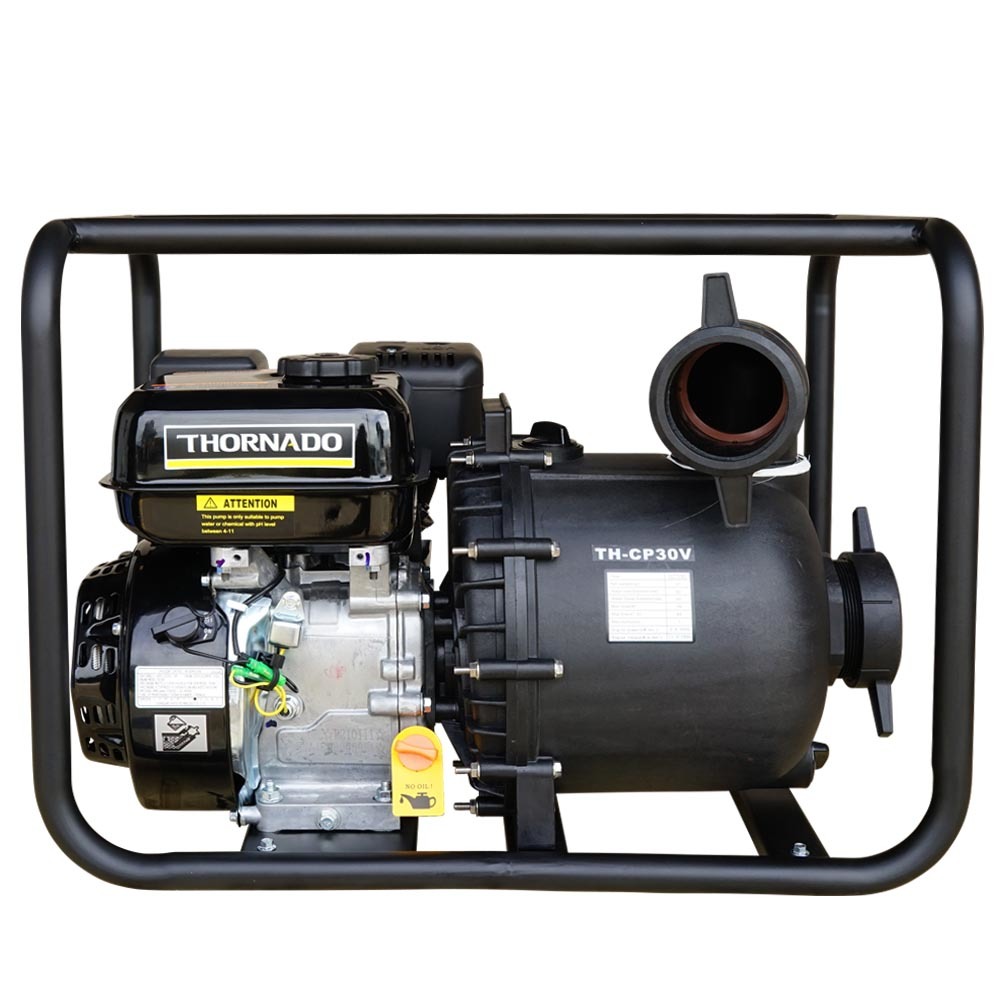

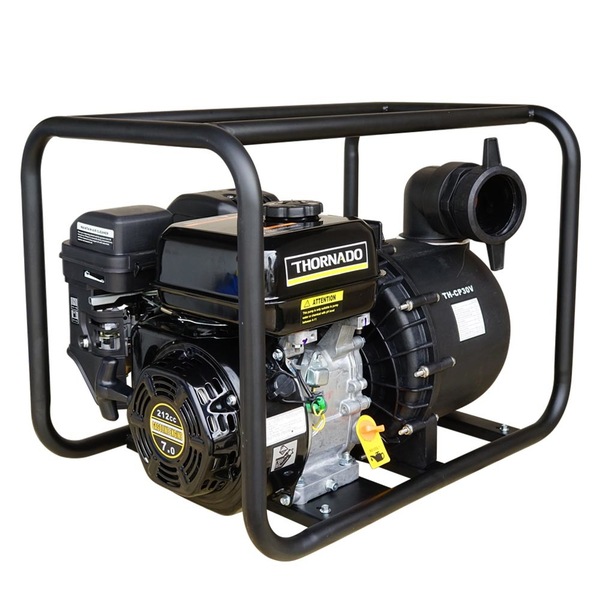

Petrol 3 Inch Chemical Transfer Poly Pump VITON Seals THORNADO 7HP
The Thornado TH-CP30V 3 inch chemical transfer pump is suitable for pumping Flexi-N-Chemicals. The pump is made of glass reinforced thermoplastic that resist the aggressive and corrosive affects from the attack of chemicals, water, sewage, or salt water. The pump is powered by a true commercial 7HP 212cc 4 Stroke OHV Thornado engine. With a suction/discharge diameter of 80mm, or 3 inches, this water pump has a maximum delivery lift of 35m and flow rate of 60,000 litre per hour. With the ability to draw water up to 7m in height, the Thornado
This pump is fitted with Viton® seals. Viton seal is better able to withstand high temperature and harsh chemicals. This seals also works well with transferring biodeisel fuel due to its unstable and oxidising nature.
The Thornado engine is a 4-stroke, single cylinder Overhead Valve (OHV) design for increased efficiency and optimal power transfer while lower fuel consumption. A precision metal camshaft and forged crankshaft design supported by ball bearing makes the Thornado engine more durable and reliable as compare to low quality engine that using plastic camshaft. The engine is installed with an automatic low oil alert shut off system to prevent the engine damage from insufficient oil. Furthermore, the automatic mechanical decompression system will give you easier starter and get the equipment running on task. With a 3.6L fuel tank, this water pump is ready for up to 2.2 hours at 3/4 load capacity.
| Pump | TH-CP20V |
| Max Flow Rate | 60,000 litres/hour |
| Max Suction Depth | 7m |
| Max Head Lift | 35m |
| Max Soft Solid Size | - |
| Mechanical Seal | Silicon Carbide |
| Included Accessories | Intake Strainer, Hose Clamps, Spark Plug Wrench |
| Dimension (L, W, H) | 610 x 440x 510 mm |
| Net Weight | 28kg |
| ENGINE | |
| Displacement | 212cc |
| Engine Type | 4 Stroke OHV Air Cooled Engine |
| Engine Model | TH-070QR (7HP) |
| Certification | EPA phase III Compliant |
| Max Power HP / Rpm | 7HP / 3600 Rpm |
| Fuel Type | Unleaded Petrol |
| Fuel Tank Capacity | 3.6L |
| Oil Type | SAE10w-30 / SAE30 |
| Oil Capacity | 0.5L |
| Run time @50% Load | ~3 hr |
| Fuel Consumption | ≤ 395 (g/kw x h) |
| Bore x Stroke | 70 mm x 55 mm |
| Compression Ratio | 9.0 : 1 |
| Shaft Size | 19.05 mm |
| Keyway | 4.76 mm |
| Spark Plug Compatible | NGK® BP-6ES; Torch® F6TC |
| Spark Plug Gap | 0.69 - 0.7 9mm |
| Valve Clearance - Intake | 0.15 mm |
| Valve Clearance - Exhaust | 0.20 mm |
