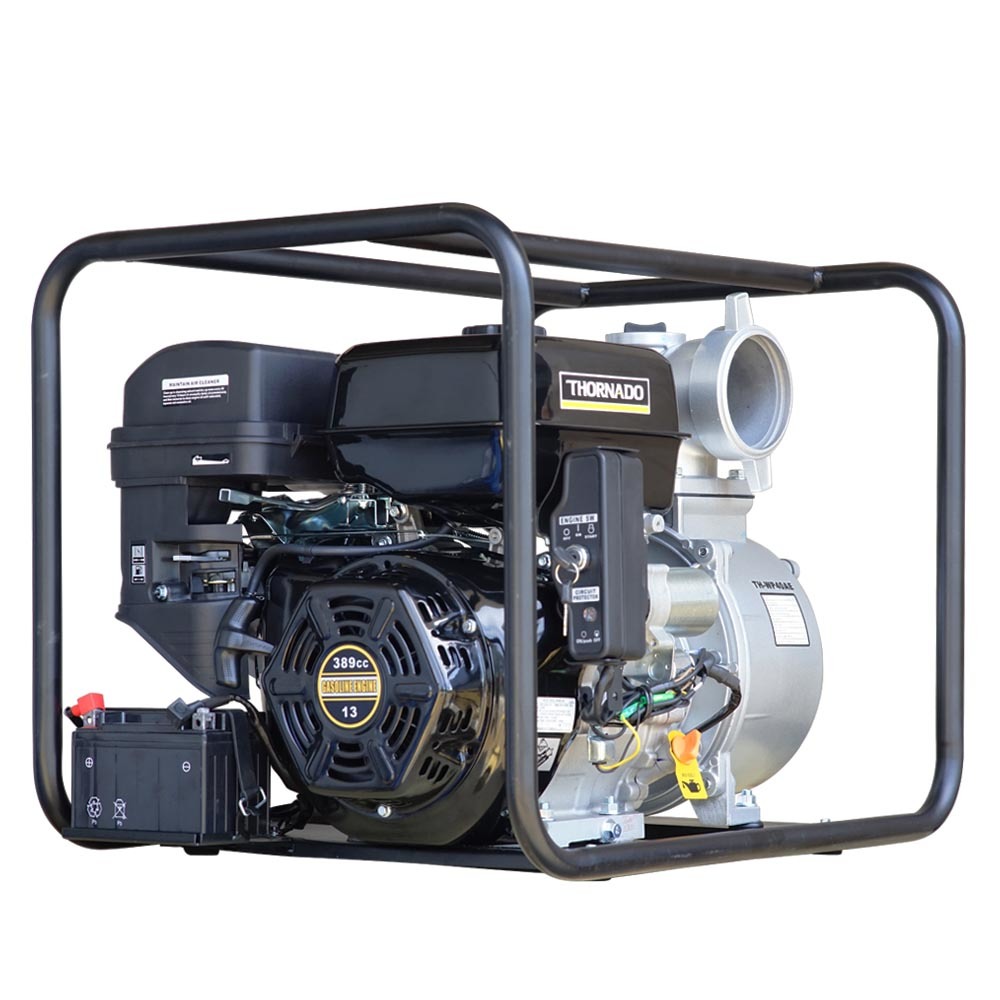

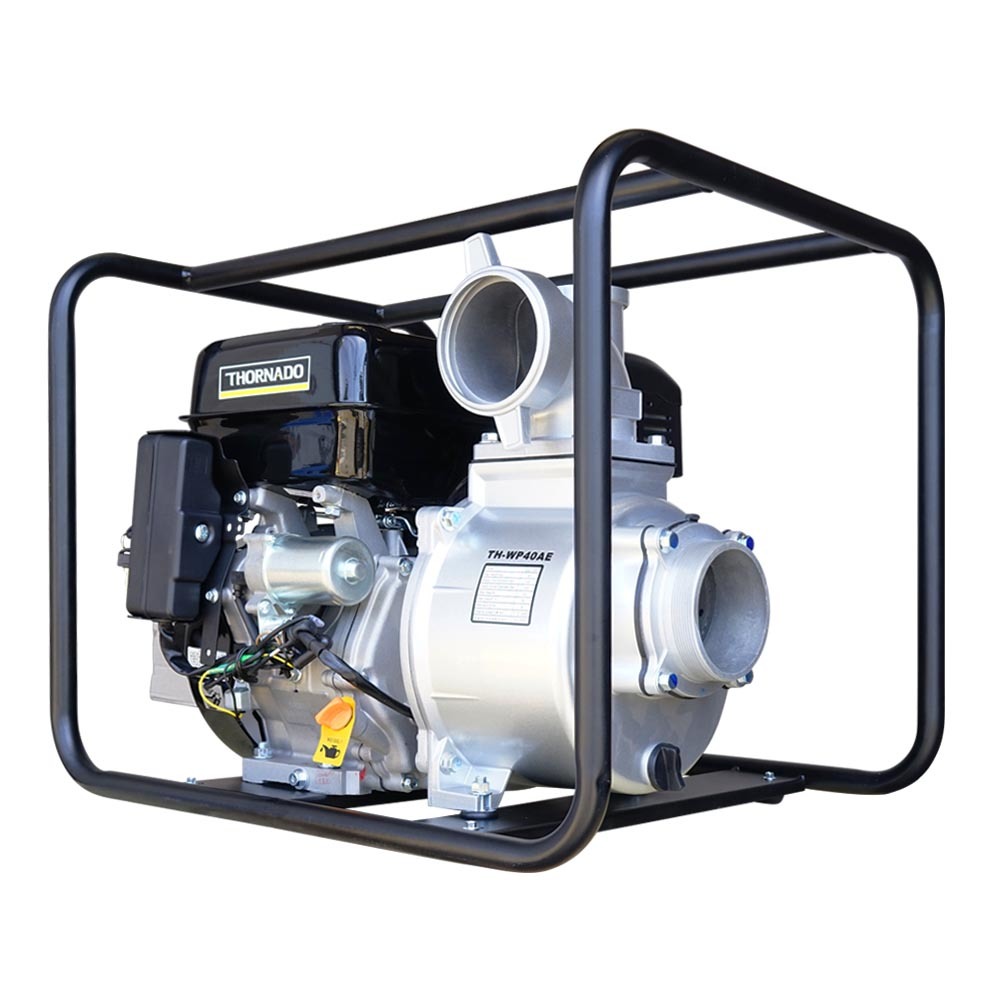

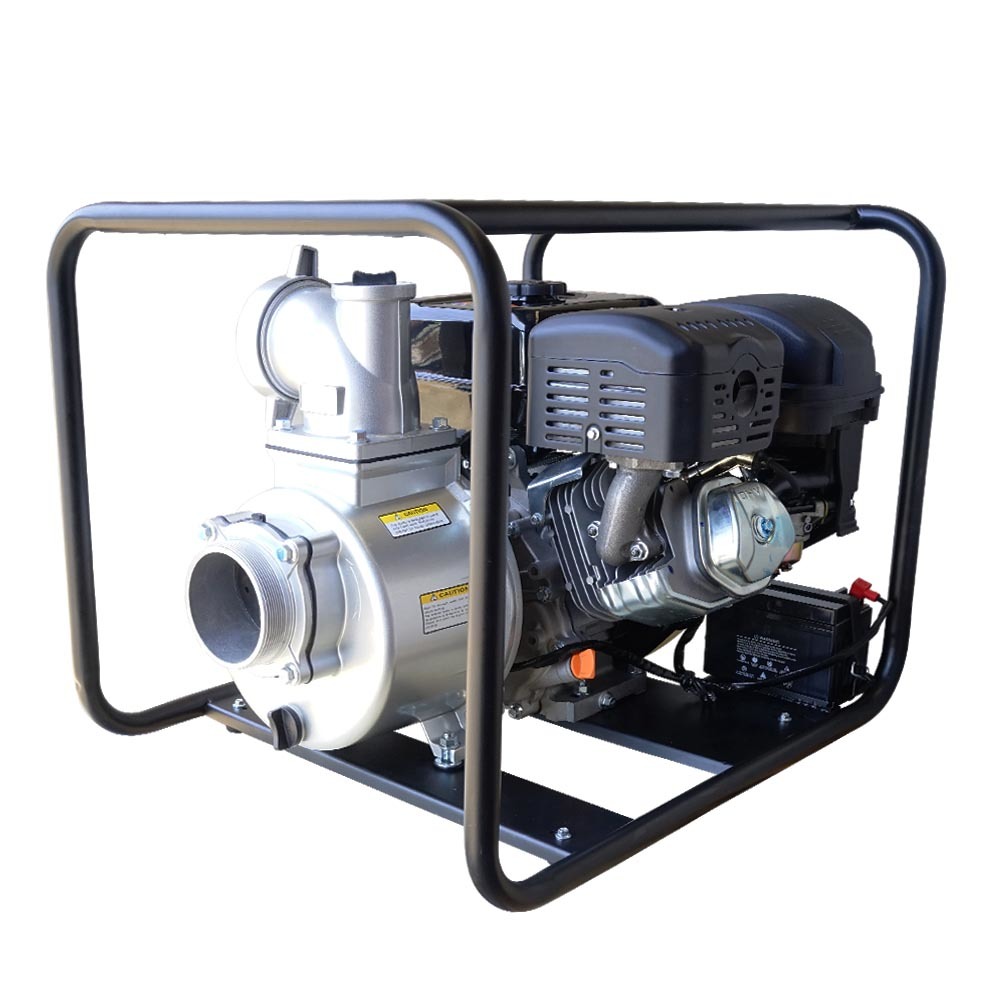

The THORNADO petrol water pump not only improve the power that you need but also a new design of the pump impeller and pump body thickness. The pump is powered by a true commercial 13HP 389cc 4 Stroke OHV engine. With a suction/discharge diameter of 100mm, or 4 inches, this water pump has a maximum delivery lift of 30m and a maximum water displacement rate of 86,000 litre per hour. With the ability to draw water up to 7m in height, the Thornado WP40AE is sure to be helpful to you in a variety of situations.
The engine is a 13HP (389cc) 4-stroke, single cylinder OHV forced air-cooled petrol engine with a recoil starter that makes it easy to get the equipment running and on task. Also with a 6.5 fuel tank, this water pump is ready for up to 2.6 hours at 3/4 load. The engine features a durablel steel cam and crank shaft, cast iron cylinder to withstand wear. High quality carburetor to get the pump start easily and low oil alert sensor for safe operation.
Highly efficient, the Thornado WP40AE petrol water pump has multiple uses because of its portability. This pump seems to be the perfect solution for using in variety of locations including flower nurseries and gardens, water plants, mines, factories, ships, and country sides where water needs to be drained remotely. THORNADO petrol water pump is an ideal solution not only for emergency jobs but also for daily routine.
*T&C's Apply, see Warranty Policy for full details.
| SPECIFICATIONS | |
| Model No | TH-WP40AE |
| Type | Self priming, Centrifugal pump |
| Inlet Size | 4 inch |
| Outlet Size | 4 inch |
| Max Lift Head | 30m |
| Max Flow | 86,000 litres/hour |
| Max Suction Depth | 7m |
| Max Pressure | 42 PSI |
| Material | Alluminium alloy pump housing, cast iron impeller and diffuser |
| Engine | TH-130QE (13HP) |
| Engine Type | 4 stroke, air cooled |
| Max Power HP / Rpm | 13HP / 3600 Rpm |
| Displacement | 389cc |
| Fuel Type | Petrol |
| Oil Type | SAE10w-30 / SAE30 |
| Fuel Tank Capacity | 6.5L |
| Oil Capacity | 1.6L |
| Run Time Full Tank | 2.5h at ¾ load |
| Starting System | Recoil start |
| Product Length | 670mm |
| Product Width | 550mm |
| Product Height | 630mm |
| Product Weight | 59kg |
| In the Box | Water pump, battery, hose fittings, hose clamps, intake strainer, spark plug wrench, user manual, |
| Pump | TH-WP40AE |
| Max Flow Rate | 96,000 litres/hour |
| Max Suction Depth | 7m |
| Max Head Lift | 25m |
| Max Soft Solid Size | 10mm |
| Mechanical Seal | Silicon Carbide |
| Included Accessories | Intake Strainer, Hose Clamps, Spark Plug Wrench |
| Dimension (L, W, H) | 610 x 435 x 540 mm |
| Net Weight | 63kg |
| ENGINE | |
| Displacement | 389cc |
| Engine Type | 4 Stroke OHV Air Cooled Engine |
| Engine Model | TH-130QE (13HP) |
| Certification | EPA phase III Compliant |
| Max Power HP / Rpm | 13HP / 3600 Rpm |
| Fuel Type | Unleaded Petrol |
| Fuel Tank Capacity | 6.5L |
| Oil Type | SAE10w-30 / SAE30 |
| Oil Capacity | 1.1L |
| Run time @50% Load | ~3 hr |
| PTO Shaft Rotation | Counter Clockwise |
| Bore x Stroke | 88 mm x 64 mm |
| Compression Ratio | 8.5 : 1 |
| Shaft Size | 25.4 mm |
| Keyway | 6.35 mm |
| Spark Plug Compatible | NGK® BP-6ES; Torch® F6TC |
| Spark Plug Gap | 0.69 - 0.7 9mm |
| Valve Clearance - Intake | 0.15 mm |
| Valve Clearance - Exhaust | 0.20 mm |
