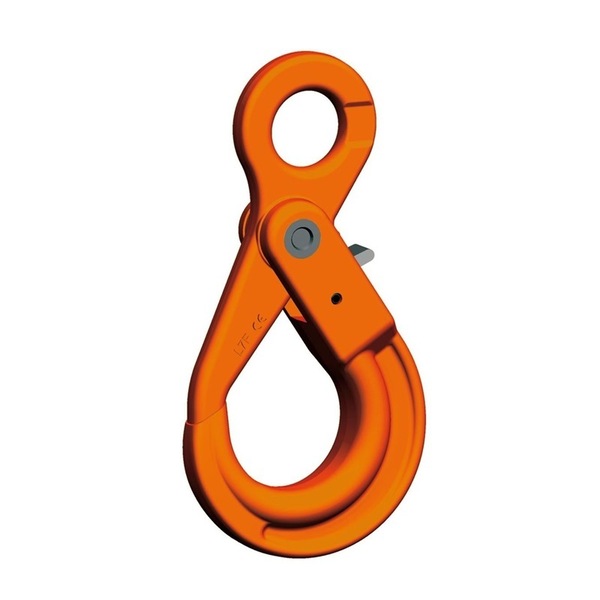

PEWAG 19/20mm Self Locking Eye Sling 3/4" Hook With Safety Latch - Grade 100 - LHW19-20

Safe by name, safe by nature – this hook closes and locks automatically, which means that it cannot open when under load. It is perfect in combination with the Connex system and also offers additional, universal connection options thanks to the flattened section on the eye. As it comes with a wider jaw opening than HSW, it may be used much more flexibly.

Features:

Safe by name, safe by nature - this hook closes and locks automatically, which means that it cannot open when under load
It is perfect in combination with the Connex system and also offers additional, universal connection options thanks to the flattened section on the eye.
As it comes with a wider jaw opening than HSW, it may be used much more flexibly.
Please note that this hook is suitable for straight pull only.
The tip of the hook and the safety catch must not be placed under load and the hook should not be used in the welded system.
If used correctly, assembly of this safety hook is simple and does not require any special tools.
The safety catch set VLHW on the back of the hook is also available as a spare parts set.
Grade 100

Specifications:

Colour: Orange
Chain Size: 19/20mm
Grade: 100
W.L.L (Working Load Limit): 16,000kg
Approx. Weight: 9.75kg
Size - 3/4"

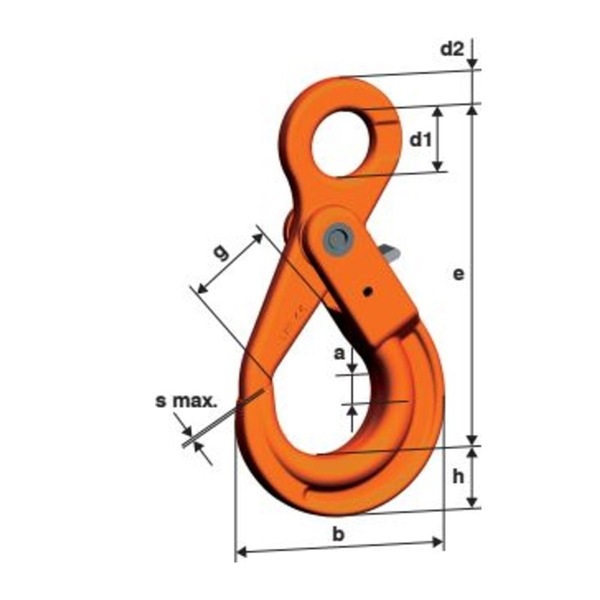

Dimensions (Refer to image):
- e: 290mm
- h: 62mm
- a: 50mm
- b: 194mm
- d1:60mm
- d2: 30mm
- g: 70mm
- s max: 2mm
