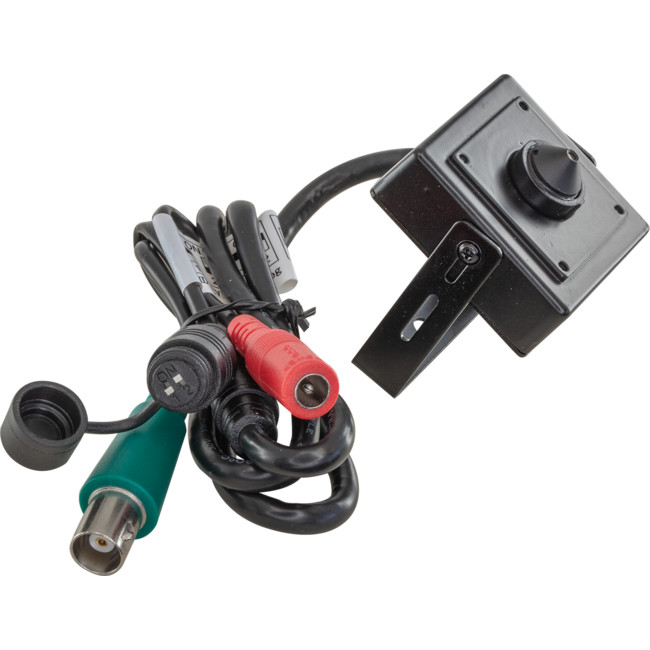

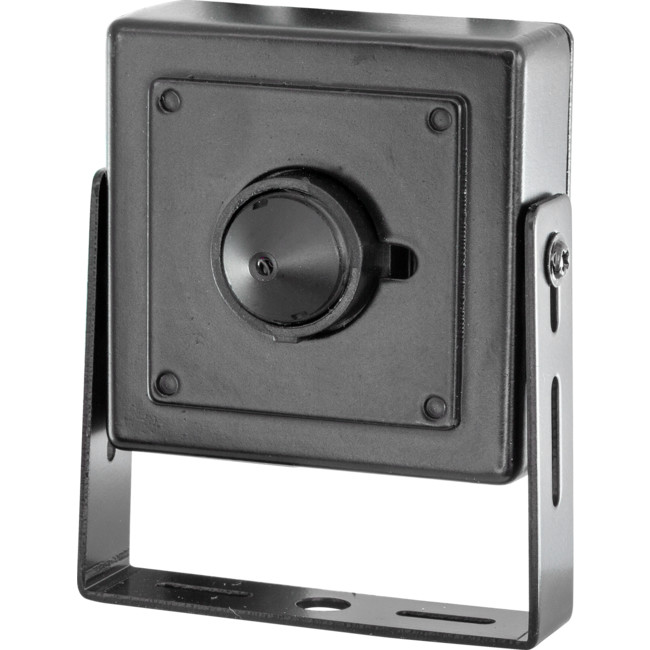

DOSS PH5AHD 5Mp AHD Mini Pinhole Camera 3.7Mm Tvi Cvi or 700Tvl Analog AHD Tvi-HD Cvi-HD Cvbs

DOSS PH5AHD 5Mp AHD Mini Pinhole Camera 3.7Mm Tvi Cvi or 700Tvl Analog AHD Tvi-HD Cvi-HD Cvbs

Hurry! 18 items left!
Earn 3x points and collect 288 Everyday Rewards points. Promotion ends 22/06/2024.
Log in to MyDeal to link your card
Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
24-48 hour dispatch
Maximum item limit (18) has been reached.

Please note this new 5MP feature is compatible with DOSS only. Due to the limitation of the DVR hardware, it is not compatible with DOSS HBD4DVRV3 and HBD8DVRV3 at this stage. Refer to FAQ how to set it up. However you can use it as normal 700TVL analog camera, whichis compatible with other DVR


  • Coaxial transmission AHD HD camera
  • Adopt low illumination1/2.7" 5MP CMOS image sensor
  • Support CVBS 1280H/AHD, 4M/AHD, 5M/CVI-HD, 4M/TVI-HD,5M output
  • Video coaxial transmission distance up to 500 m
  • OSD can select AHD CVI-HD TVI-HD or CVBS standard definition analog signal output mode
  • Support D-WDR, 2D NR
  • OSD menu, various languages


Sensor 1/2.7" 5 Mega pixels CMOS
Effective pixels 2592(H) x 1944(V)
Video frame rate 2560x1440@25/30fps;2592x1944@20fps/12.5fps
Resolution 1280H (CVBS output)
Min. Illumination
Color: 0.1 Lux/F1.2, B/W: 0.01 Lux/F1.2
Lens 3.7mm pinhole lens
Sync System 7
Electronic Shutter Auto/ Manual (X30~1/50000) / FLK
S/N Rate =50db(AGC OFF)
Video output 1.0Vp-p complex video output, 75O
Output model PAL/NTSC adjustable
OSD menu
Image adjustable Brightness, sharpness, AGC
Sens-up OFF/ Auto (X30, X25, X20, X15, X10, X8, X6, X4, X2)
AGC Auto
Day&night switch Auto, EXT, B/W, Color
Privacy mask /
Motion detection /
Mirror Horizontal/ vertical/ rotation
Lens shading compensation OFF/ON
DPC Auto,/B/W
Defog OFF/ Auto
OSD menu Chinese, English and so on 12 languages
Output mode CVBS 1280H/AHD 4M/AHD 5M/CHD 4M/THD 4M/THD 5M
Transmission distance 75-3/300m,75-5/500m
Operating temperature -10°C ~ 55°C
Operating humidity 0%-90%
Power consumption =2w
Power supply DC12V
Dimensions(mm) 43(W)*43(H)*15(L)mm
Weight/PCS(g) 150g



How to set up 5MP feature in DVR?

Go to System Setting, then Device Setting, change the Display Mode to one of the 8 Analog (2592x1944) options.
