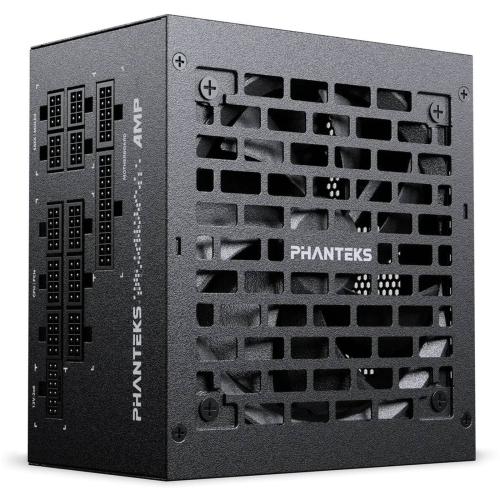

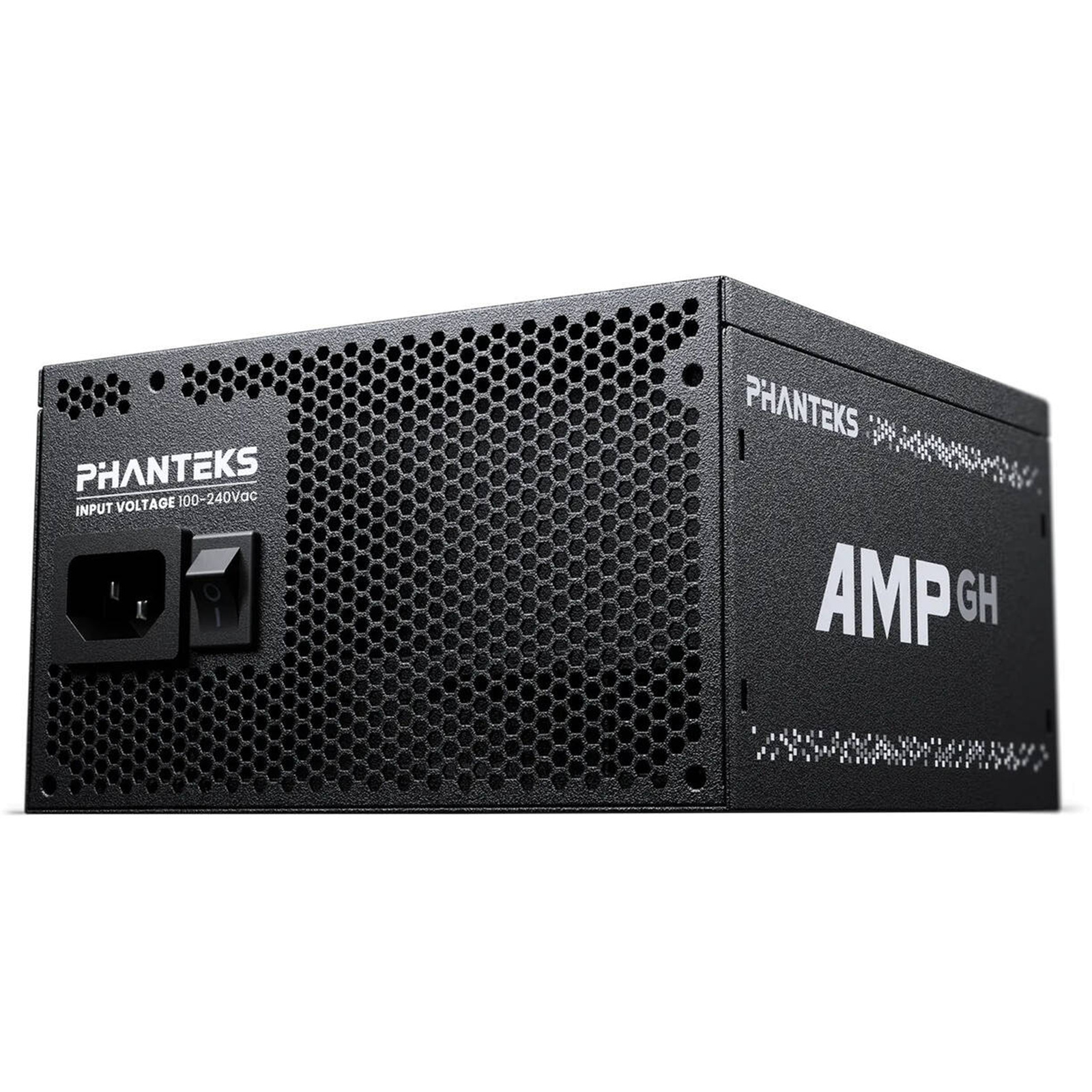

Phanteks AMP 1000W ATX 3.1 80Plus Platinum - Black - Full Modular Power Supply [PH-P1000GH_BK02_AU]

Image 1
Image 2
Image 3
Limited Stock
$226.63

Collect 226 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by F Digital Direct Import
Secure ways to pay at checkout
Phanteks AMP 1000W ATX 3.1 80Plus Platinum - Black - Full Modular Power Supply

The Phanteks AMP GH 1000W: Powerful and Reliable
The Phanteks AMP GH 1000W is a high-performance ATX 3.1 power supply that reliably powers your gaming hardware. Phanteks has developed a compact PSU that, with a depth of only 140 mm, conforms to the standard ATX form factor and fits in most cases. By using high-quality electrical components, this 80 PLUS Platinum-certified power supply operates with outstanding efficiency. Its fully modular design with individually shielded and specially textured cables makes installation easier and ensures a clean look.
- High-performance ATX 3.1 power supply with 1,000 watts for high-end PCs
- 80 PLUS Platinum certification thanks to high efficiency of up to 94%
- Quiet 120 mm fan with hydrodynamic sleeve bearing for efficient cooling
- Less cable clutter and better airflow thanks to modular cable management
- Cables with individually textured cable strands for a tidy build
- Silent operation at the push of a button thanks to semi-passive hybrid mode
- Includes 12V 2x6 power cable for high-performance graphics cards
ATX 3.1 PSU with PCIe 5.1 Connector for Graphics Cards
The AMP-GH series fully complies with ATX 3.0 and 3.1 standards, making it compatible with the latest components. Phanteks has also equipped this PSU with a 12V 2x6 connector based on the PCIe 5.1 standard, so you are well prepared for current and future high-end GPUs.

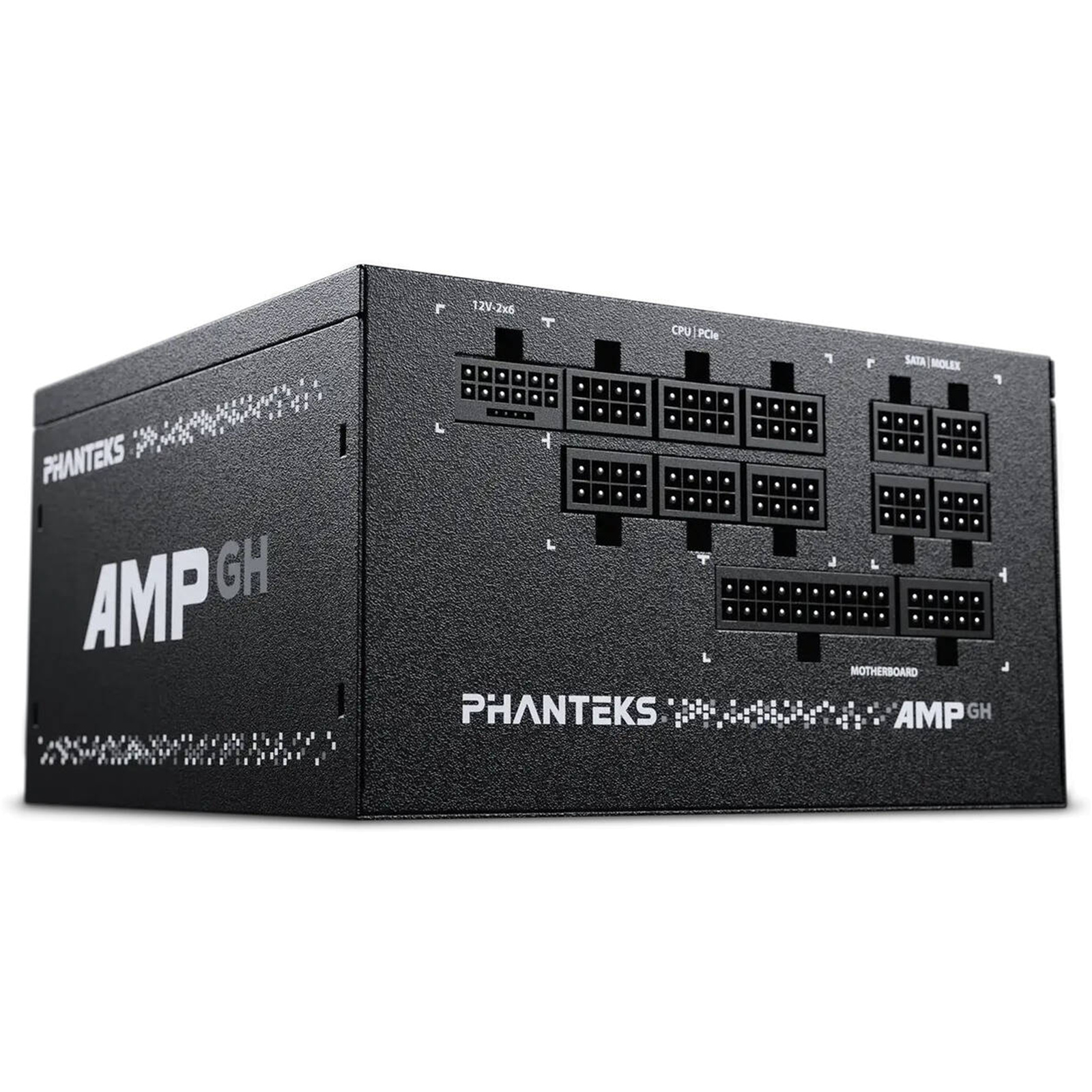

Maximum Flexibility: Various Connection Options and Modular Design
The gold-plated connectors reduce electrical resistance and increase efficiency, ensuring energy-efficient and reliable operation. Included in the package, besides the power supply, are all necessary cables for motherboard, CPU, PCIe cards, SATA, and Molex for drives and accessories. The fully modular design allows for easy installation and reduces cable clutter. Thanks to the wide range of connection options, your desktop PC can be flexibly adapted to your requirements.
Silent, Semi-Passive Hybrid Mode
The 120 mm fan with hydrodynamic sleeve bearing ensures optimal cooling with minimal noise. In this mode, the PSU fan automatically switches off at loads below 40%, enabling virtually silent operation.
Quiet operation offers several benefits: it creates a calmer working and gaming environment, reduces distractions, and thus enhances your overall experience. Additionally, it preserves the fan, leading to an even longer lifespan for your power supply.

Colour
Primary Colour
Black
Dimensions
Length / Depth
140 mm

Width
150 mm

Height
86 mm

Installation depth
140 cm
Fan Specifications
Fan Size
120 mm
Power Supply
PSU Format
ATX

ATX Standard
ATX 3.1

12V Distribution
single rail

Modular Power Supply
Yes

Modular Type
fully modular
Power Specifications
Total Power Output
1000 W

Power Output +12V rails
996 W
Cable Specifications
Max. CPU Power Cable Length
650 mm

Max. 24-Pin Motherboard Power Cable Length
610 mm

Max. PCIe Power Cable Length
720 mm
Cooling
Semi Passive Power Supply
Yes

Semi Passive Type
passive
Internal Ports
CPU Power Connectors 12V ATX/EPS
2

CPU Power Supply
2x 4+4-Pin

12V-2x6 Power Connectors
1

8 Pin PCIe Power Connectors
4

6+2 Pin PCIe Power Connectors
14

SATA Power Connectors
2
Efficiency Class
80PLUS Efficiency
80 PLUS Platinum
Lighting
Lighting / RGB
No
- MPN: PH-P1000GH_BK02_AU

GTIN: 886523511519
