Phanteks NV Series NV7 Tempered Glass Window,DRGB,Black CPU Cooler Supports Upto 185mm, GPU Supports Upto 450mm, 360mm Radiator Supported, 8X PCI Slots, Front I/O: 1XType C, 2X USB.

NV7

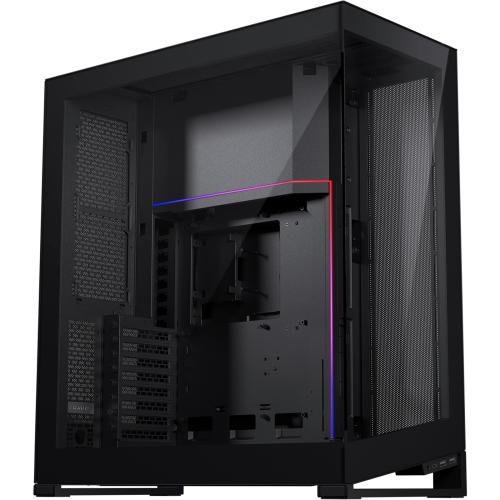

The Phanteks NV7, with its unmistakable purpose design, highlights the system components with the motherboard at its center. One defining design element of the NV7 is its strong and defining outer frame that captures and accentuates the hardware components.
With a clean design from all sides, the NV7 allows you to place your system freely without the traditionally messy rear side. The glass panels offer a near-seamless view of the inside to further focus on the system components.


A PICTURE FRAME FOR YOUR SYSTEM
- Near-seamless glass panels
- The motherboard as a centerpiece of your build
- Fans all around the system with a strong outer frame
- Build to last from thick reinforced steel


PERFORMANCE WITHOUT COMPROMISE
- Direct and dedicated GPU cooling from the bottom
- Immense bottom airflow intake with 65mm clearance
- Ultra-Fine Performance mesh on all external panels
- Extensive cooling supports triple 360 plus a 240 radiator simultaneously

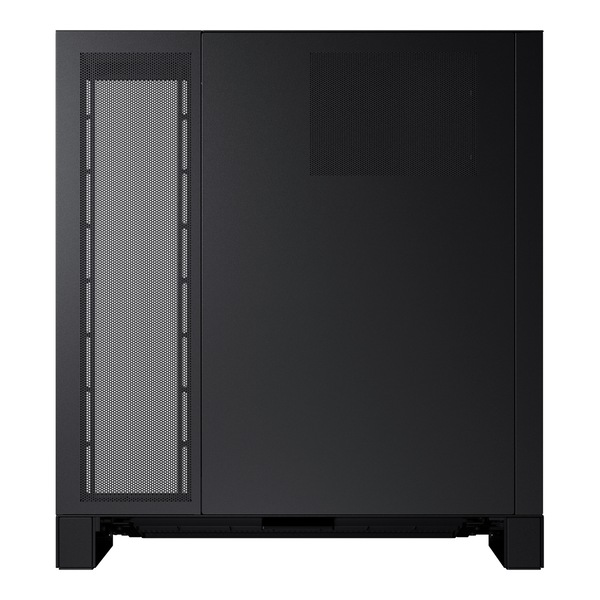

CLEAN EXTERIOR FROM ALL SIDES
The clean rear door and moveable front IO module allows for multiple placement options


NEXT-LEVEL CABLE MANAGEMENT

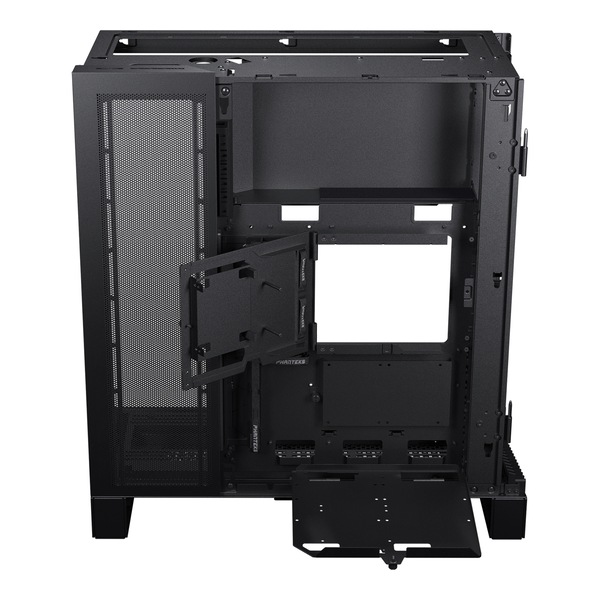

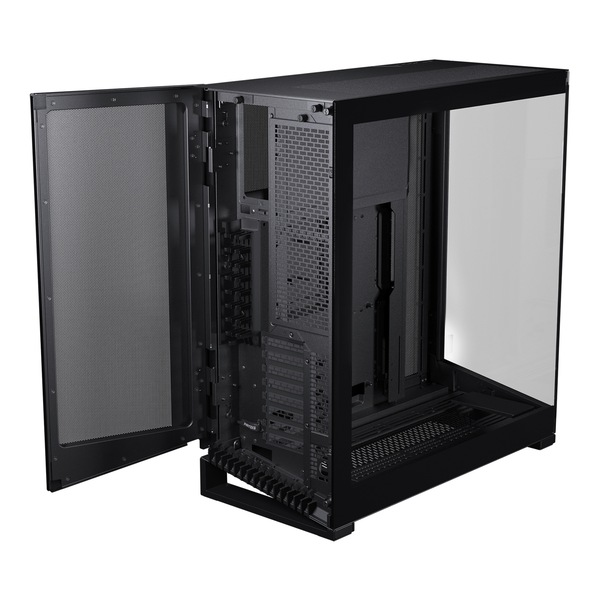

- Rear door swings open to provide easy access
- Unique cable management system for external cables
- Go for a zero-cable setup using the hidden cable exit grommet
- Cover doors and velcro cable combs easily hide and manage the internal cables


UNIQUE INTERIOR FEATURES
- Integrated D-RGB lighting around the motherboard
- Versatile GPU support bracket prevents sag and securely holds the GPU to the motherboard


NEW GENERATION D-RGB CONTROLLER
- Dual channel output to allow for dual color effects
- A total of 4 output ports and dual Sata power expands the possibilities
- Refined D-RGB lighting effects that just work, no software required
- Optionally, choose for software-control with the included cable

Scope of Delivery
NV7 D-RGB Chassis:
1x SSD/Cable bracket
1x SSD/HDD bracket
1x Two-channel D-RGB Controller
1x Front-IO Module
Top LED Cover
Side LED Cover

Accessory Box:
GPU Support bracket
2x Airflow Covers
D-RGB MB Adapter
6x Zip ties
Microfiber cloth
Screw Assortment Box

Package Dimensions
690 x 345 x 628 mm / 27.2 x 13.6 x 24.7 in

Net Weight
16.90 KG

Gross Weight
19.35 KG
Case Dimensioins (D x W x H)
532 x 253 x 586 mm / 20.9 x 10.0 x 23.1 in

Form Factor
Full Tower

Materials
Steel Chassis, Tempered Glass front and side panels

Motherboard Support
ATX, micro-ATX, mini-ITX, SSI-CEB, E-ATX (up to 277mm wide)

Front I/O
1x USB 3.2 GEN 2 Type-C
2x USB 3.0
D-RGB Mode button
D-RGB Colour button
D-RGB Speed button
D-RGB Channel button
Power button
Microphone/headphone Combo

Connectors
Power SW (Power Switch)
Power LED
USB 3.0
USB 3.2 GEN2 Type-E
HD-Audio
2x D-RGB Channel A
2x D-RGB Channel B
D-RGB Motherboard Input
2X SATA Power

D-RGB Controller Output
7A per Channel, 4A per port
Expansion
PCI Slots
8

Internal 3.5" Bay
2 (1x if all SSD positions are used)

Internal 2.5" Bay
6 (4x if both HDD positions are used)

Vertical GPU Support
Yes, with optional bracket PH-VGPUKT4.0_03R

Fan Support
Side Fan
4x 120 mm

Bottom Fan
3x 120 mm / 3x 140 mm

Top Fan
3 x 120 mm

Rear Fan
2 x 120 mm

Radiator Support
Side Radiator
up to 360

Bottom Radiator
up to 360 / up to 280

Top Radiator
up to 360

Rear Radiator
up to 240

Clearances
GPU Length
450 mm / 17.7 in

CPU Cooler Height
185 mm / 7.3 in

PSU Length
255 mm

Side 360 Radiator
Maximum size: 132 x 440 mm

Side 360 Radiator Thickness
65mm (to GPU)

Top 360 Raditor
Maximum size: 132 x 440 mm

Rear 240 Radaitor Maximum size
132 x 320 mm

Bottom Radiator
Maximum size: 140 x 440 mm
- MPN: PH-NV723TG_DBK01

GTIN: 886523302780

Reference ID: 10076672
