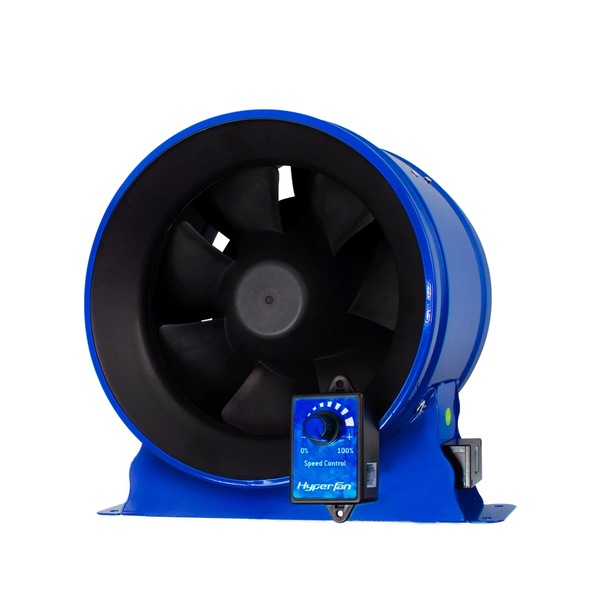

Phresh Hyperfan EC Fan v2 w/ Controller - 300MM (12") - 1825CFM - Speed Variable

Image 1
$809.95

Sold Out

Notify me when this product is back in stock

To understand how we handle your personal information, see our Privacy Collection Notice and Privacy Policy.

Shop More Products
Sold & shipped by Hydro Experts

Hyperfan is the latest technology available in mixed flow fans. Hyperfan utilize aircraft "taper blade technology" to fully optimize the aerodynamic movement of air over the fan blade.


Specifications:

  • New 9 pole digital EC "Brush-Less" motors
  • High fan efficiency @7.85CFM per watt
  • Higher linear airflow output than other fans
  • Higher static pressure output than outer fans
  • Detachable, fully variable speed controller included
  • Sturdy, steel housing and Abec 7 ball bearings
  • 0-10V controller compatible via RJ9 or RJ11 cable
The importance of pressure (pa):

Static pressure is one of the most important factors in ventilation design. Simply put, static pressure refers to the resistance to airflow in a ventilation system's components and ductwork. The push of the air must be greater than the resistance to the flow. The higher the fans static pressure rating (pa) the greater it's ability to remove either hot or stale air from the environment.

  • Size: 300MM (12" Inch)
  • Max Air Flow: 3100 M^3/h - 1825CFM - 861 LPS
  • RPM: 3200
  • Amps: 2.8A
  • Weight: 7.4KG
  • Noise: 73 dBA
  • Fan Pressure: 730 Pa
  • Diameter: 315MM (12" Inch)
  • Width: 364MM (including mounting bracket)
  • Length: 302MM
  • Housing: Stainless Steel
  • Blade Design: Mixed flow - laminar blade
  • Climate Rating: T
  • IPX Rating: IPX2

2-Year Replacement Warranty

  • If the product is faulty within the warranty period, the product will be replaced with a new one.
  • Please send the product to the following address on the contact us page.

SKU: XFANS45124

Reference ID: 3842254
