Pl4 Led Indicator Intelligent Rapid Ni-Mh / Li-Fe / Li-Ion / Imr Battery Charger 4Slots

Specifications:

Product name:Lii-PL4 18650 Battery Charger For 21700 26650 18350 AA AAA

Model:Lii-PL4

DC Input Voltage:12 V / 1 A

Li-ion battery charging current:2000mA*1 (fourth channel only),1000mA*2,500mA*3,500mA*4

NiMH battery charging current:1000mA*2, 500mA*3 500mA*4

Compatible batteries:Li-ion / IMR/LiFePO4: 26650,21700,18650, 18490, 18350, 17670, 17500, 16340 (RCR123), 14500, 10440

NiMH/Cd: AA, AAA, SC, C

Weight:175g

Size:133mm x 100mm x 35mm (length / width / height)

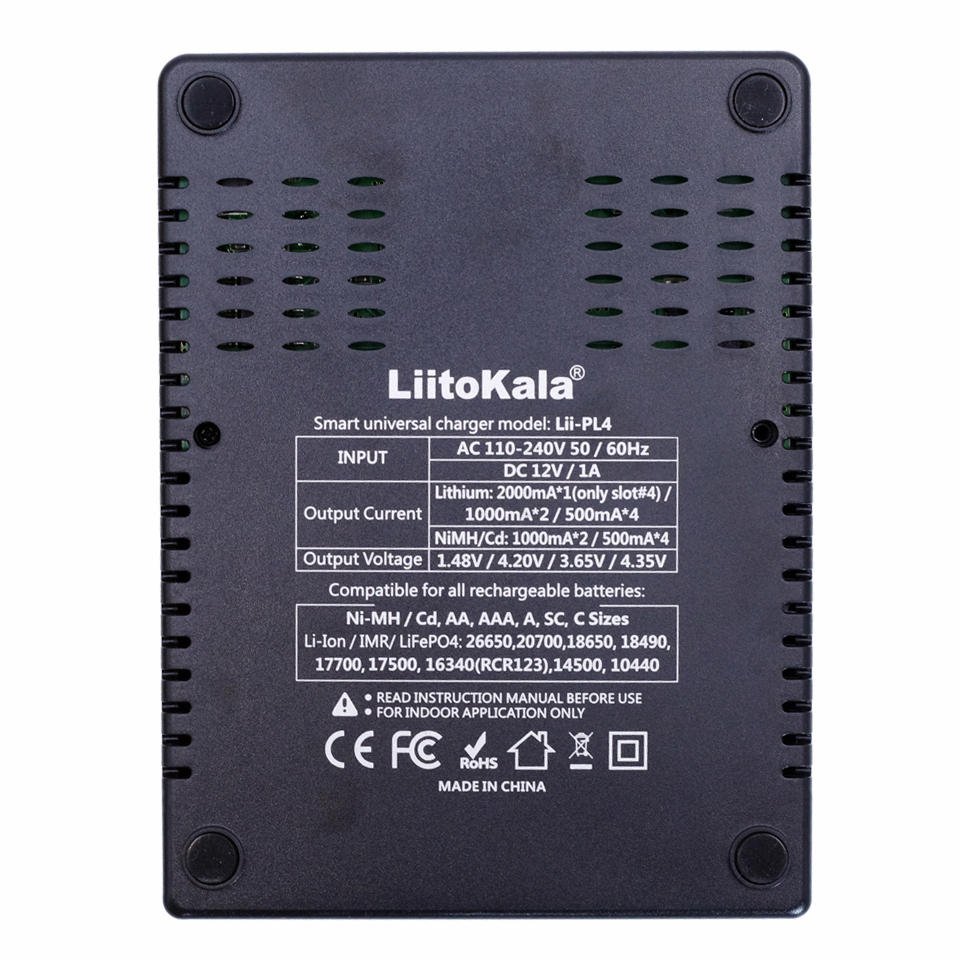

Charger technical parameters:

Input power: AC 110-240V 50/60Hz / DC 12V-1A

Output voltage: DC 4.2V for Li-Ion/DC 4.35V for IMR/DC 3.65V for LeFePO4/DC 1.48V for NiMH/NI-Cd

Output current: Li-Ion/IMR/LiFePO4 2000mA*1 (fourth channel only),1000mA*2,500mA*3��500mA*4

NiMH/NiCd: 1000mA*2, 500mA*3 500mA*4

Constant current, constant voltage charge, cut-off current: <100m A;

External power standby current: <15.0m A;

Features:

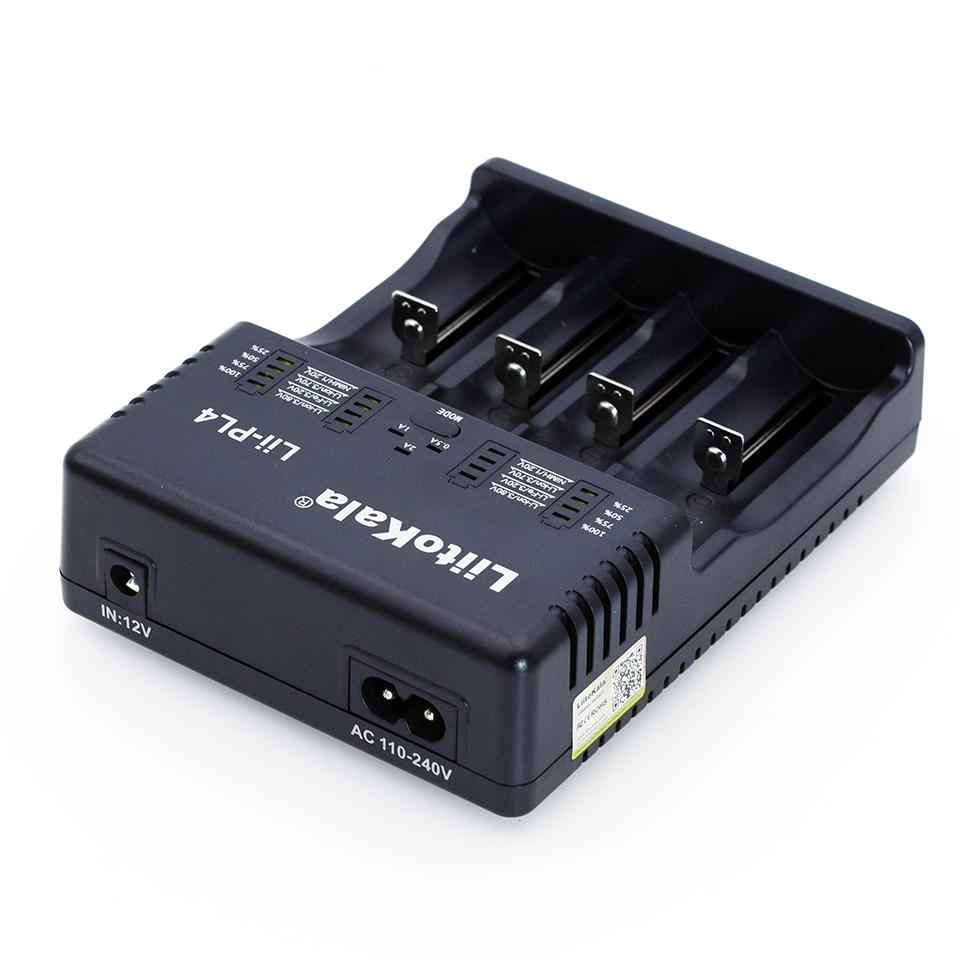

1. Multi-power input: AC cable 110-240V 50/60Hz (included)/ 12V 1A adapter(selective), four independent charging and micro computer management system.

2. Three charging current mode (500mAh/1000mAh/2000mAh, 2000mAh current mode is fixed only on the fourth slot.

3. The LED charging indicators: both for charging progress: 25% - 50% - 75% -100% and battery types: Ni-MH 1.2V , Li-Fe 3.2V, Li-ion 3.7V, Li-ion 3.80V (IMR)

4. Identify Li-ion and Ni-MH batteries automatically and adjust manually the charging mode for LiFePO4 and 3.80V li-ion batteries(IMR)

5. Refresh for OV battery. It will not charge any battery of1.65 -1.85V (refresh current can be detected only)

6. Protection for over-charge and over-discharge and short circuit. Identify broken battery and polar reverse protection.

7. Charing under constant voltage and current

8. Buttons : While power supply is connected, 1) Short press(less than 2S) the mode button to change the battery type. It will start to charge 5 seconds after setting the battery type (3.2V or 3.80V), 1.2V Ni-MH and 3.7V li-ion can be detected automatically, so it needs setting only 3.2V and 3.8V batteries; 2) change the charging current at any time during charging by long press(more than 2S) the mode button

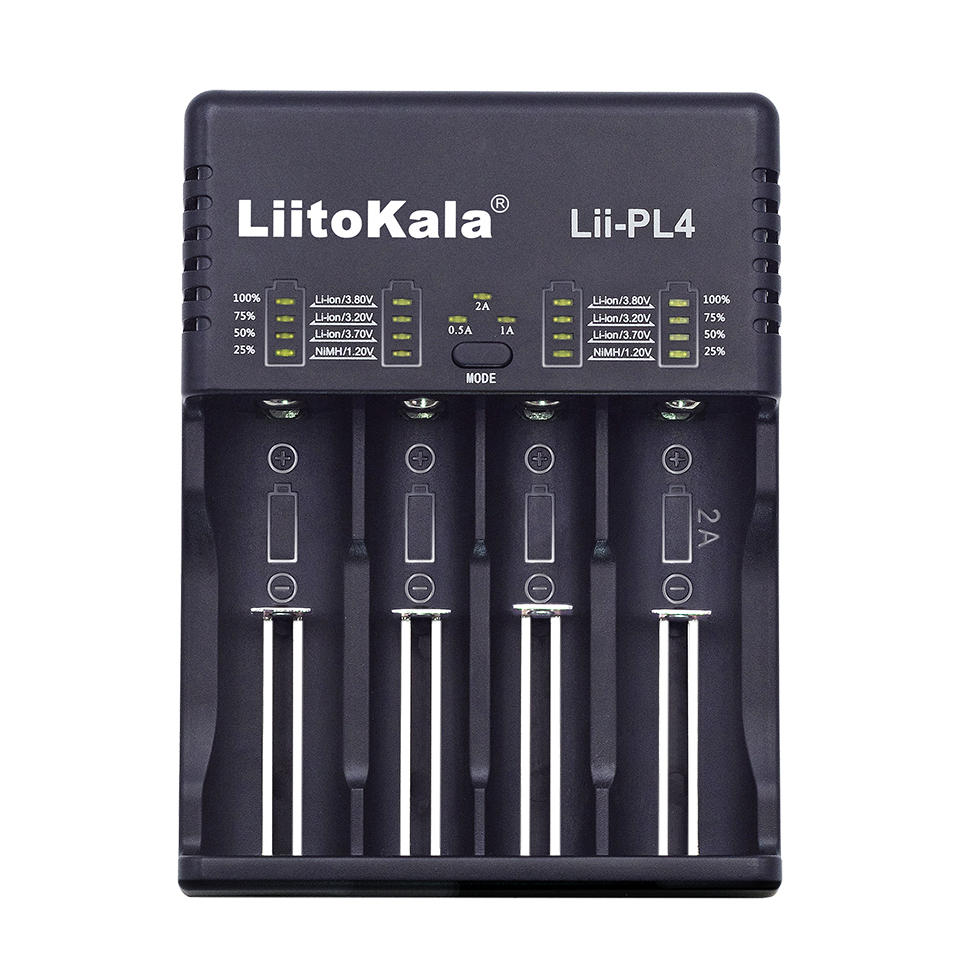

9. LED: While power supply connected, all LEDS light up immediately 1) If no battery is inserted, the 500mAh LED (one of the three current display LEDS ) will keep on and others will be off. 2) When battery is inserted and detected, 4 LED charger indicator for the channel will be on among which 3.7V battery type LED keeps flashing indicating to set the battery type, if no operation in 5 seconds, it begins by automatic detection(Li-Ion 3.7V or NIMH) then four LED indicators will display the charging status. 3) During charging, short-press the mode button to show the battery type within 5 seconds; 4) If no power supply is connected, inserting a battery, it can quick shows the remaining charger volume of the battery.

10. LED displaying graphic reference

Technical specification:

1. Input : AC cable 110-240V 50/60Hz (included)/ DC 12V 1A (selective)

2. Output voltage: DC 4.2V for Li-Ion 3.7V/ DC 4.35V for Li-Ion 3.8V( IMR)/C 3.65V for LeFePO4/DC 1.48V for NiMH/NI-Cd

3. Output current: Li-Ion/IMR/LiFePO4 2000mA*1(only for slot#4), 1000mA*2, 500mA*3 500mA*4

NiMH/NiCd: 1000mA*2, 500mA*3 500mA*4

4. Constant voltage, cut-off current: less

Package included:

1 x Lii-PL4 18650 Battery Charger For 21700 26650 18350 AA AAA

1 x User Manual

1 x Plug
