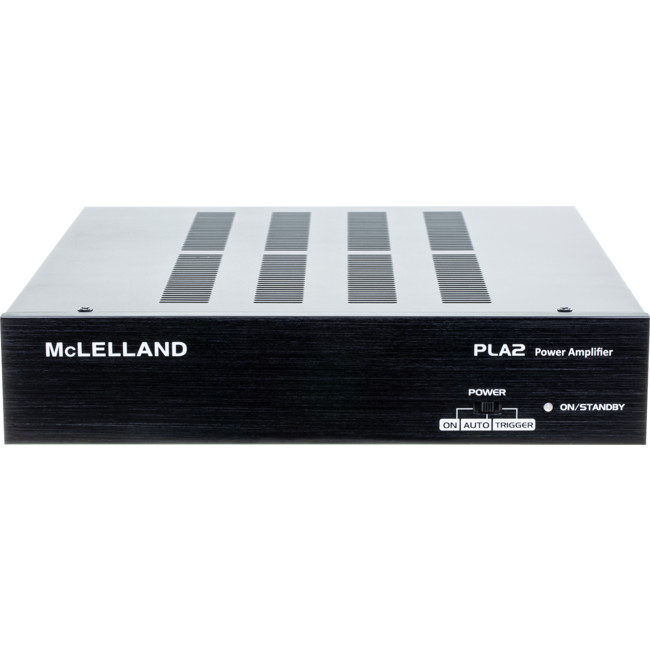

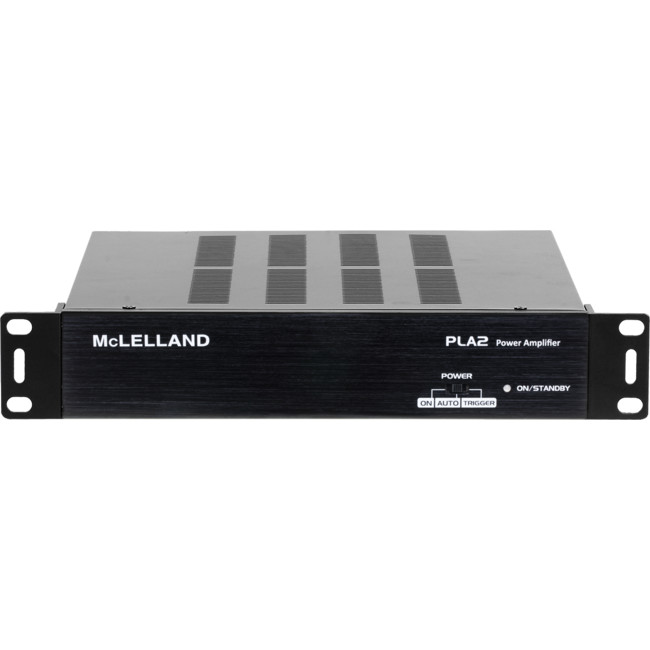

PLA2 MCLELLAND 120W Power Amplifier Compact 100V or 8Ohm Spk Bridged Mode 240W Output For 70V or

PLA2 MCLELLAND 120W Power Amplifier Compact 100V or 8Ohm Spk Bridged Mode 240W Output For 70V or

Be the first to review

Hurry! 6 items left!

Price	$556 WAS Was price applied WAS Was price applied
Shipping	Invalid, please Contact Us Delivery unavailable to Reset
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

Similar Items

PRO1323 Pro2 4-Zone Audio Power Amplifier Integrated 4 Source Stereo 4-Zone Speaker Amplifier

$306

CA1250 MCLELLAND 6 Zone 12Ch Power Amplifier 50W Output Power Per Channel Local Source or Bus In

$1402

A2120DT TOA 120W 100V Line Only PA Amp Vox Muting and Tones 100 Volt Output TOA 120W 100V LINE

$634

PA60 SHOW 60W Multiplex Amplifier Power Output (at 4Ω): Rms 60W / Max 70W 60W MULTIPLEX

$306

PRO1358 Pro2 Stereo Audio Power Amplifier With Remote Control Amplifier Type: Stereo Class-D

$127 RRP $139

PICOBLU AUSTRALIAN MONITOR 30W Mixer Amp With Bluetooth Small Form Factor

$356

MTX88 AUDAC 8 Zone Multi Zone Audio Matrix Mixer With Web Based Control 8 Output Zones 8 ZONE

$2012.30

MA4075 SHOW Multiplex Amplifier 5Ch Inputs 4 Zone Selector 4X Independent Channels MULTIPLEX

$702

PRO1300 Pro2 4 Zone Stereo Power Amplifier Audio With Headphone Out 4-Zone Speaker Amplifier 4

$231 RRP $275

PRO1328 Pro2 Stereo Audio Power Amplifier Microphone and Stereo Class D Small Size and Compact

$95

A5012 TOA 120W 4 Input Class D Mixer Amp 5 Band Eq - Half Size 1Ru Power Output: 120W 120W 4 INPUT

$854

A2240DT TOA 240W 100V Line Only PA Amp Vox Muting and Tones 100 Volt Output TOA 240W 100V LINE

$907

Features

It used 9.5 inches special tiny design.
Two Channels Model 120W RMS/Per channel.
Stereo into 4-8 Ohm loads.
Bridged mode 240W output for 70V or 100V (Direct Drive)
Power down after ~15 minutes of no signal and comply with Energy Star Power consumption limits of < 0.5W in standby.
Red LED ( Front Panel) to indicated Standby mode is active.
Terminal Block analog audio inputs.
Selection for Power-Up mode.
Switch for High Pass Filter.
Natural cooling without Fan.
TRIGGER could be external remoting ON/OFF.
Short circuit protection.
Overheating protection.

Specifications

Stereo Mode (all channels driven)
120W x 2, 8O (31 V) RMS output (steady state), per channel @ < 1 % THD+N
120W x 2, 4O (22 V) RMS output (steady state), per channel @ < 1 % THD+N
Bridged Outputs For 70V/100V (Switch at "HIZ" position)
240W, 70V @ < 1 % THD+N
240W, 100V @ < 1 % THD+N
Frequency Response 20 Hz - 20 kHz, +/- 2 dB @ 4O Load
Signal to Noise >90dB @ 1W(20 Hz - 20 kHz)
Input Sensitivity1.0V (+0dBu) @ Max Output 4O
Gain Value ?25 dB @ 4O
Input Impedance >10k, Balanced.
Maximum Input Level 12.3 V (+24 dBu)
Trigger In/Out DC 12V
High Pass Filter 80 Hz(2dB)

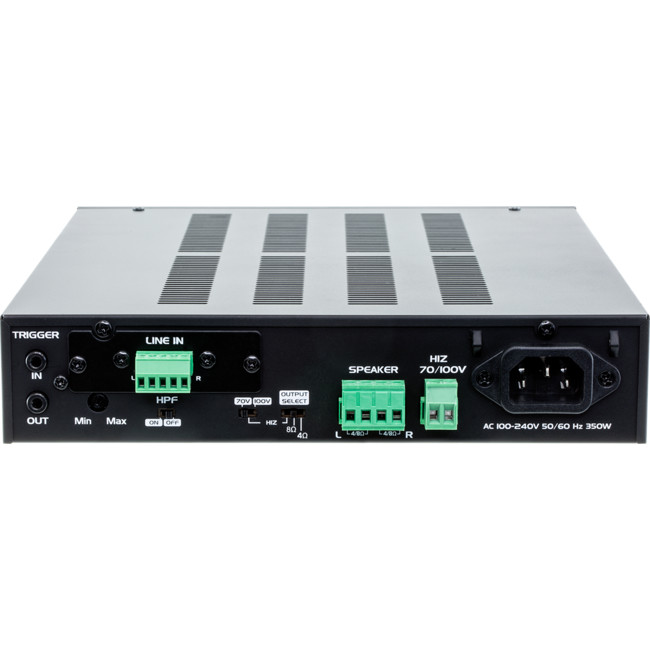

Input Connector 5 pin Euro terminal
Trigger Connectors 3.5 mm Jacks
Output Connectors 4 pin Euro terminal (4O/8O)
Dimensions 214mm(W) x 249.8mm(D) x 44mm(H)
Net Weight 1.94 Kg
Power Requirements 100 - 240 VAC, 50 - 60 Hz, 350W
