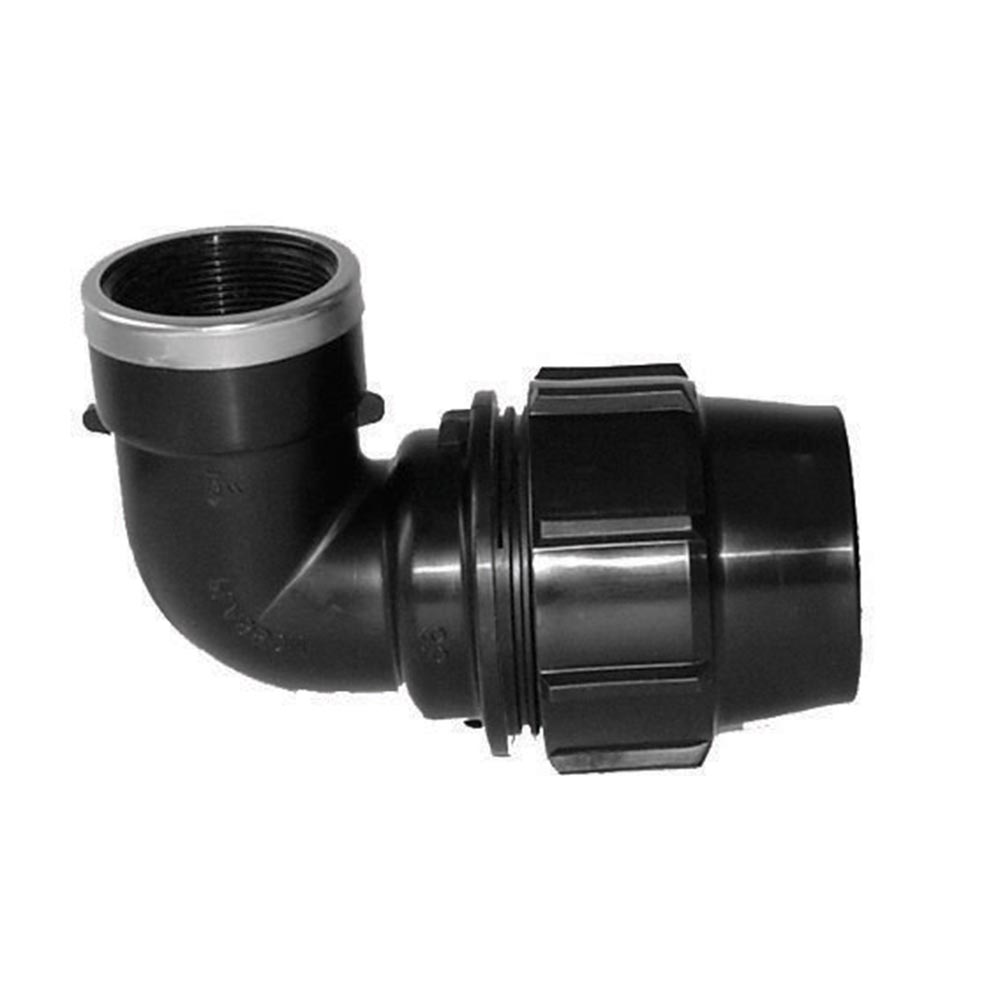

Plasson Poly Metric Compression 90 Degree Elbow - Female BSP Offtake

Image 1
Hurry! 15 items left!
From$9.11

Collect 9 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by THORNADO
Secure ways to pay at checkout

PLASSON - Metric 90 Elbow x Female BSP


Tough Australian conditions means you need a name you can rely on for your pipe fittings. Plasson fittings have proved to be the most reliable connections systems for poly pipelines in Australian conditions for over 40 years. Plasson compression fittings are designed for connecting all forms of PE Pipe. Common applications include underground and surface mining, plumbing, irrigations, civil constructions, gas installation, industrial fluid transfer and waste water systems.


FEATURES



  • Body and nut material: Polypropylene, high-grade copolymer

  • Split ring material: Polyacetal

  • Seal material: NBR

  • Pressure rating water: PN16

  • Maximum temperature of use for fittings and valves is the same as that for polyethylene pipe and they are not intended for use in hot water applications. They will withstand sub-zero temperatures.

  • Resistance to chemical



































































































































































































































PLASSON - ELBOW 90 Degree x FEMALE BSP
SKU d (mm) Rp (Inch) A (mm) A1 (mm) E (mm) I (mm) I2 (mm) Weight (kg)
7001.07.1515 16 1/2" 66 39 39 50 19 0.038
7001.07.2015 20 1/2" 78 40 48 54 19 0.061
7001.07.2020 20 3/4" 78 44 48 57 19 0.071
7001.07.2515 25 1/2" 81 46 54 58 18 0.086
7001.07.2520 25 3/4" 81 46 54 58 19 0.081
7001.07.2525 25 1" 83 50 54 58 21 0.090
7001.07.3225 32 1" 95 54 64 67 21 0.136
7001.07.3232 32 1 1/4" 99 60 64 67 25 0.167
7001.07.4025 40 1" 119 52 82 84 21 0.201
7001.07.4032 40 1. 1/4" 119 62 82 84 25 0.245
7001.07.4040 40 1. 1/2" 119 62 82 84 25 0.261
7001.07.5025 50 1 133 57 96 93 21 0.280
7001.07.5032 50 1. 1/4" 133 67 96 93 25 0.312
7001.07.5040 50 1. 1/2" 135 66 96 93 25 0.344
7001.07.5050 50 2" 138 85 96 93 30 0.387
7001.07.6550 63 2" 160 90 113 110 30 0.559
7001.07.8050 75 2" 188 100 134 132 30 0.860
7001.07.8065 75 2. 1/2" 191 105 134 132 36 0.933
7001.07.8080 75 3" 191 105 134 132 36 0.982

Estimated Delivery Time Frame:2-7 business days
