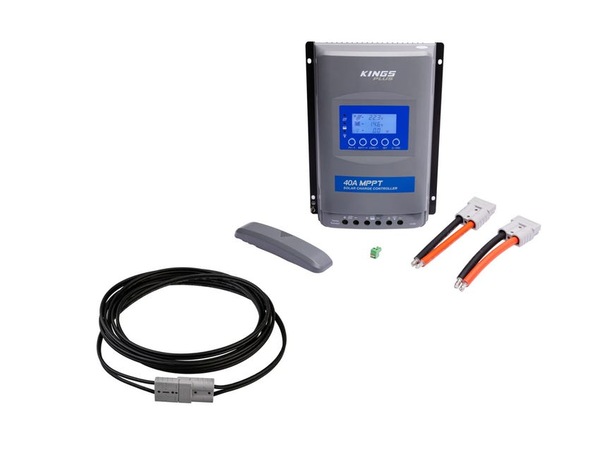

Plus Premium 40 AMP MPPT Solar Regulator + 6M Extension Lead

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Limited Stock
$223.95

Collect 223 Everyday Rewards points

Log in to MyDeal to link your card
$20.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout

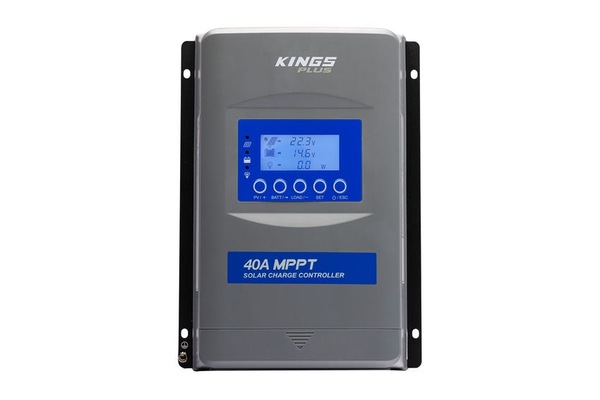

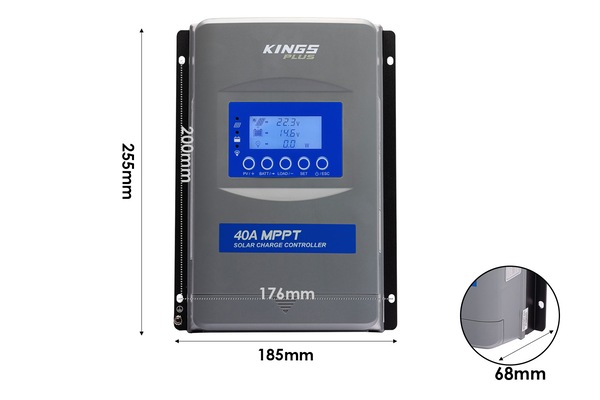

40 AMP MPPT SOLAR REGULATOR


This 40 Amp solar charge controller is lithium compatible with dedicated multi-stage charging profiles for different battery types - Sealed, GEL and Flooded battery settings too. With Sealed being the default - perfect for AGM batteries)
It can accept up to 92V of solar input in standard conditions! It can suit just about any setup - AGM or lithium, up to 780 Watts as a 12 Volt battery system or 1,560 Watts as a 24 Volt battery system with a 40 Amp charge rating - and it has a 3 year warranty.



Battery Chemistry Options Sealed, Gel, Flooded, Lifepo4,Li(NiCoMn)O2, User Adjustable

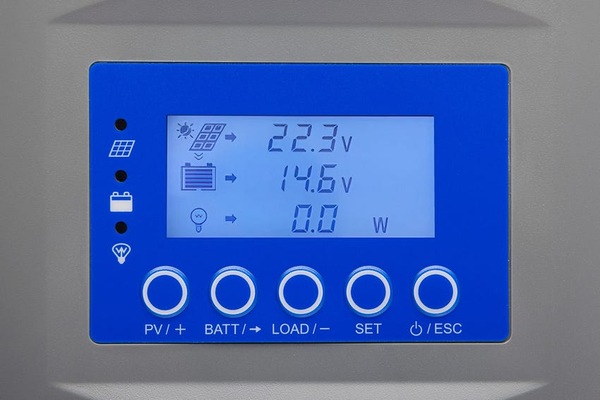

Display Backlit LCD + LED Indicator Lights

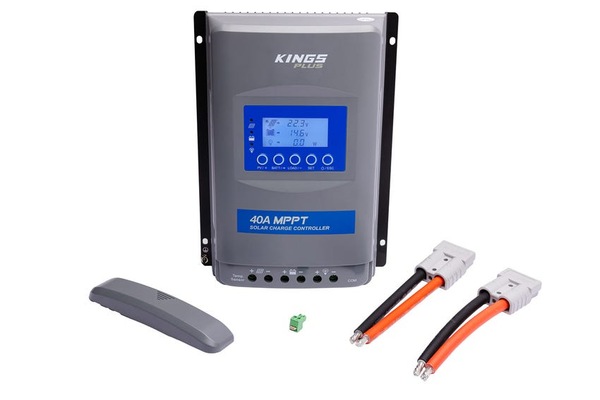

Included cables 100mm Double Insulated XLPO 16mm2 + Quick Connect Plugs

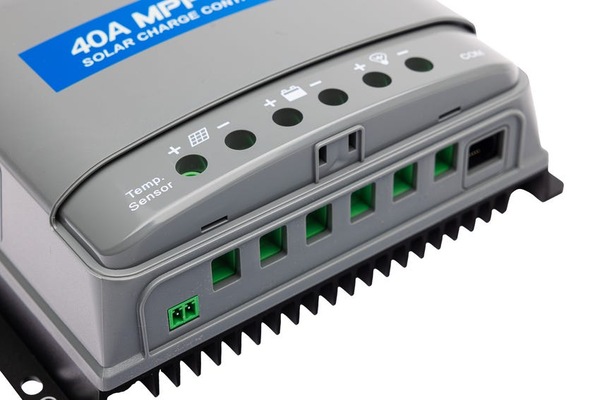

Terminal Type (Max Wire Size) Screw Terminals (6 AWG / 16mm2)
Grounding Common Negative
IP Rating IP33 Dust And Water Resistant
Battery Voltage Range 8 - 32V
Max Power Point Working Range Battery Voltage +2V to 36V
Max PV Open Cell Voltage Input @ 25°C STC 92V
Rated Solar Power Input 520W (12V) 1040w (24V)
Standby Power Usage (12v / 24v) 14mA (12V) 15mA (24V)
Max Dc Dc Conversion Efficiency >98%
Max Tracking Efficiency 99.5%
Load Circuit Manual On/Off + Programmable Settings

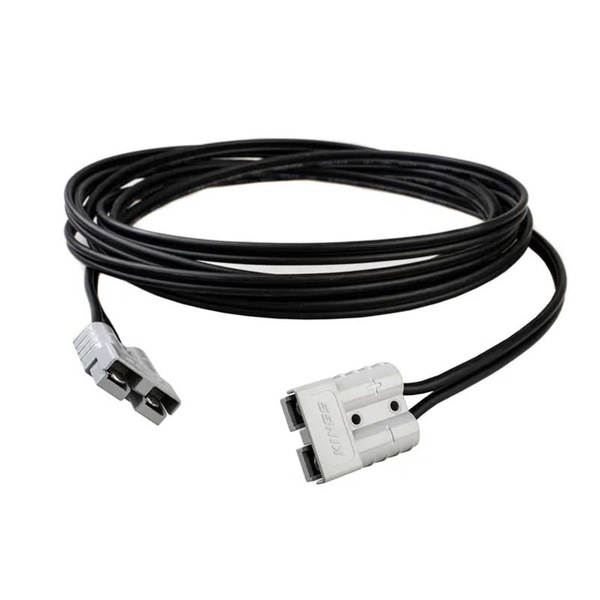

ADVENTURE KINGS 6M SOLAR EXTENSION LEAD
2.5MM2 HIGH QUALITY COPPER | HEAVY DUTY



Conductor Material Multi-Strand Copper 51x0.25
Conductor Cross Sectional Area (each wire) 2.5mm2
Insulation Material 0.8mm PVC
Outer Sheath material 1mm PVC
Outer Diameter 9.3mm
Maximum Current 20A
Operating Temp Range -5°C~+70°

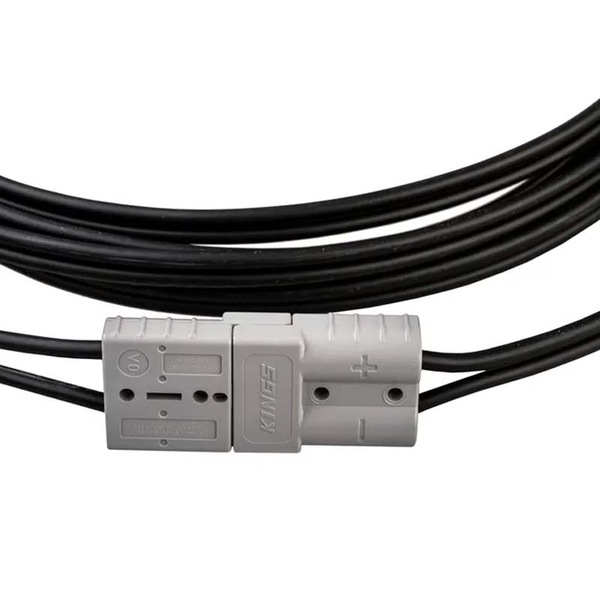

Plug Anderson-style Quick Connect
Plug Rating 50A
Plug UL94-V0 Flame Resistant Thermoplastic
Connector Material Copper
Maximum Rated Voltage 300V

MPN: SC-CO-40MPPTREG-6MLEAD02
