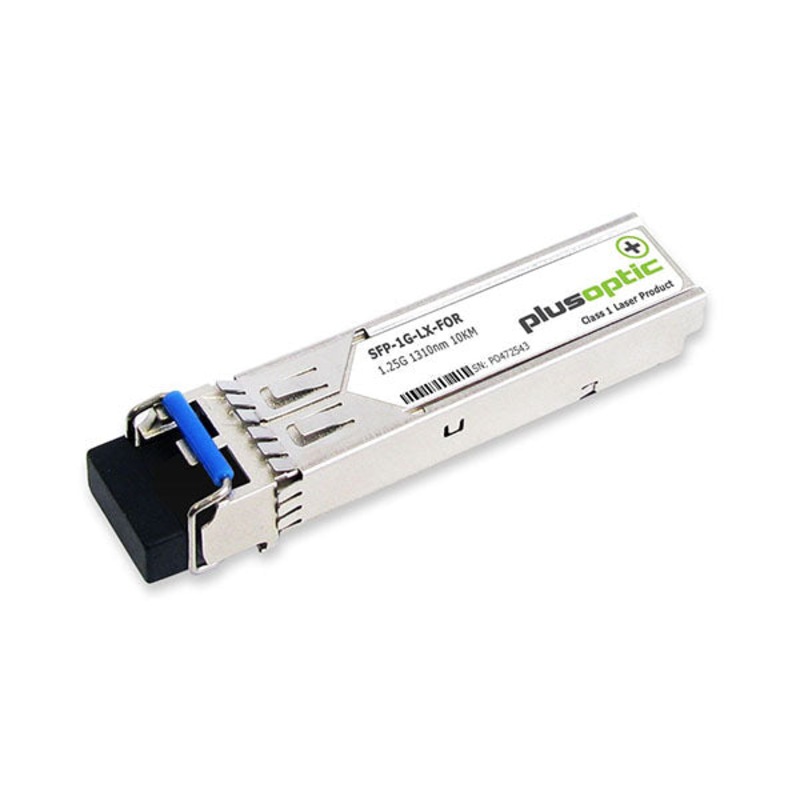

Plusoptic Fortinet Compatible Sfp 1310Nm 10Km Transceiver Lc Connector

Image 1
Hurry! 5 items left!
$89.95

Collect 89 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping

Dispatch in 2 business days

Sold & shipped by Crazy Sales Australia
Secure ways to pay at checkout

FORTINET COMPATIBLE (FG-TRAN-LX) 1.25G, SFP, 1310NM, 10KM TRANSCEIVER, LC CONNECTOR FOR SMF WITH DOM | PLUSOPTIC SFP-1G-LX-FOR

PLUSOPTIC’s SFP-1G-LX-FOR Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the FP laser and the PIN photo-detector. The module data link up to 10KM in 9/125um single mode fiber.

The optical output can be disabled by a TTL logic high-level input of Tx Disable, and the system also can disable the module via I2C. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner. The system can also get the LOS (or Link)/Disable/Fault information via I2C register access.

FEATURES

Up to 1.25Gb/s data links

FP laser transmitter and PIN photo-detector

Up to 10km on 9/125µm SMF

Hot-pluggable SFP footprint

Duplex LC/UPC type pluggable optical interface

Low power dissipation

Metal enclosure, for lower EMI

RoHS compliant and lead-free

Support Digital Diagnostic Monitoring interface

Single +3.3V power supply

Compliant with SFF-8472

Case operating temperature

Case operating temperature

SPECIFICATIONS

Compatible Brand: Fortinet

Device Type: SFP

Transmission Mode: SMF

Max Distance: 10km

Wave Length: 1310nm

Max Data Rate: 1.25Gbps

Terminations: LC

PACKAGE CONTENT

1 x Plusoptic Fortinet Compatible Sfp 1310Nm 10Km Transceiver Lc Connector

GTIN: 9350888077351
