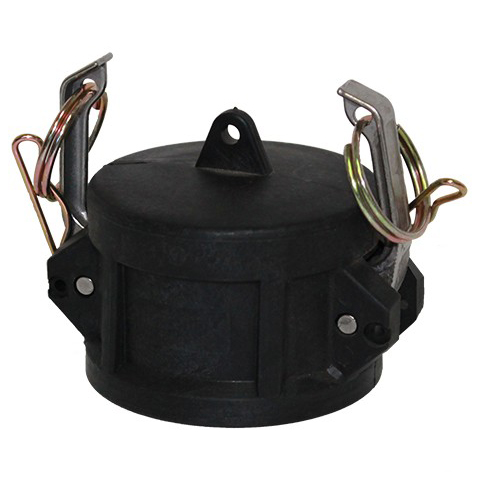

Polypropylene Camlock Coupling (Type DC) - Dust Cap

Image 1
Hurry! 5 items left!
From$3.99

Collect 3 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by THORNADO
Secure ways to pay at checkout

Polypropylene Camlock



  • The coupling is connected by simply opening the coupler arms and inserting the adapter into the coupler. The cam arms are then closed under normal hand pressure to complete the joint.

  • Reliable quick connect coupling for use on hose, pipe, tubing and tanks conveying a wide variety of liquids, dry bulk materials, oil, powder, cosmetics, foodstuffs, offshore, pumps, adhesives, dyes, pharmaceuticals, pellets, some hydrocarbon, chemicals and many more. Note: Not to be used for compressed air and steam application.

  • Standard Buna-N seal installed

  • Polypropylene material










































CAMLOCK COUPLINGS
TYPE DESCRIPTION
Type A Male Adaptor - Female BSP
Type B Female Coupler - Male BSP
Type C Female Coupler - Hose Tail
Type D Female Coupler - Female BSP
Type DC Dust Cap Female End Coupler
Type DP Dust Plug Male End Adaptor
Type E Male Adaptor - Hose Tail
Type F Male Adaptor - Male BSP





































































Type DC Camlock - Dust Cap - Polypropylene
Part Number Coupling Size (In) Coupling Size (mm) B (mm) E (mm) G (mm) WEIGHT (kg)
6203.07.20 3/4" 19 45 32 53 0.08
6203.07.25 1" 25 57 40 60 0.11
6203.07.40 1. 1/2" 38 65 49 85 0.18
6203.07.50 2" 51 70 54 96 0.22
6203.07.80 3" 37 80 60 127 0.36
6203.07.94 4" 102 82 59 157 0.58

Estimated Delivery Time Frame:2-7 business days
