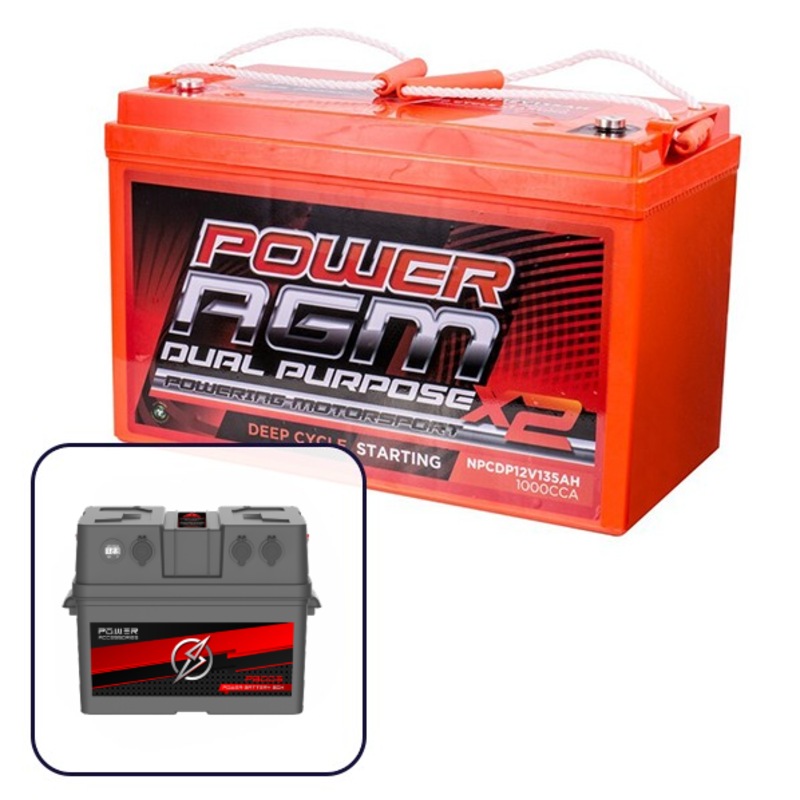

Pack Includes:

• Power AGM 12V 135Ah Dual Purpose Battery, NPCDP12V135AH
• Power Accessories Portable Multi-Function Battery Box with LED light,  PB003

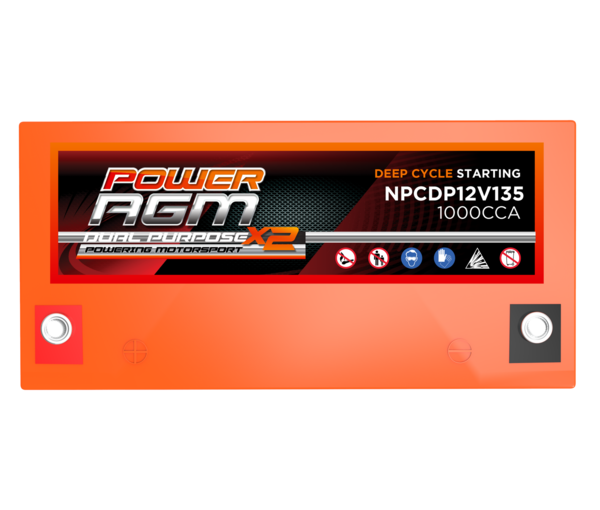

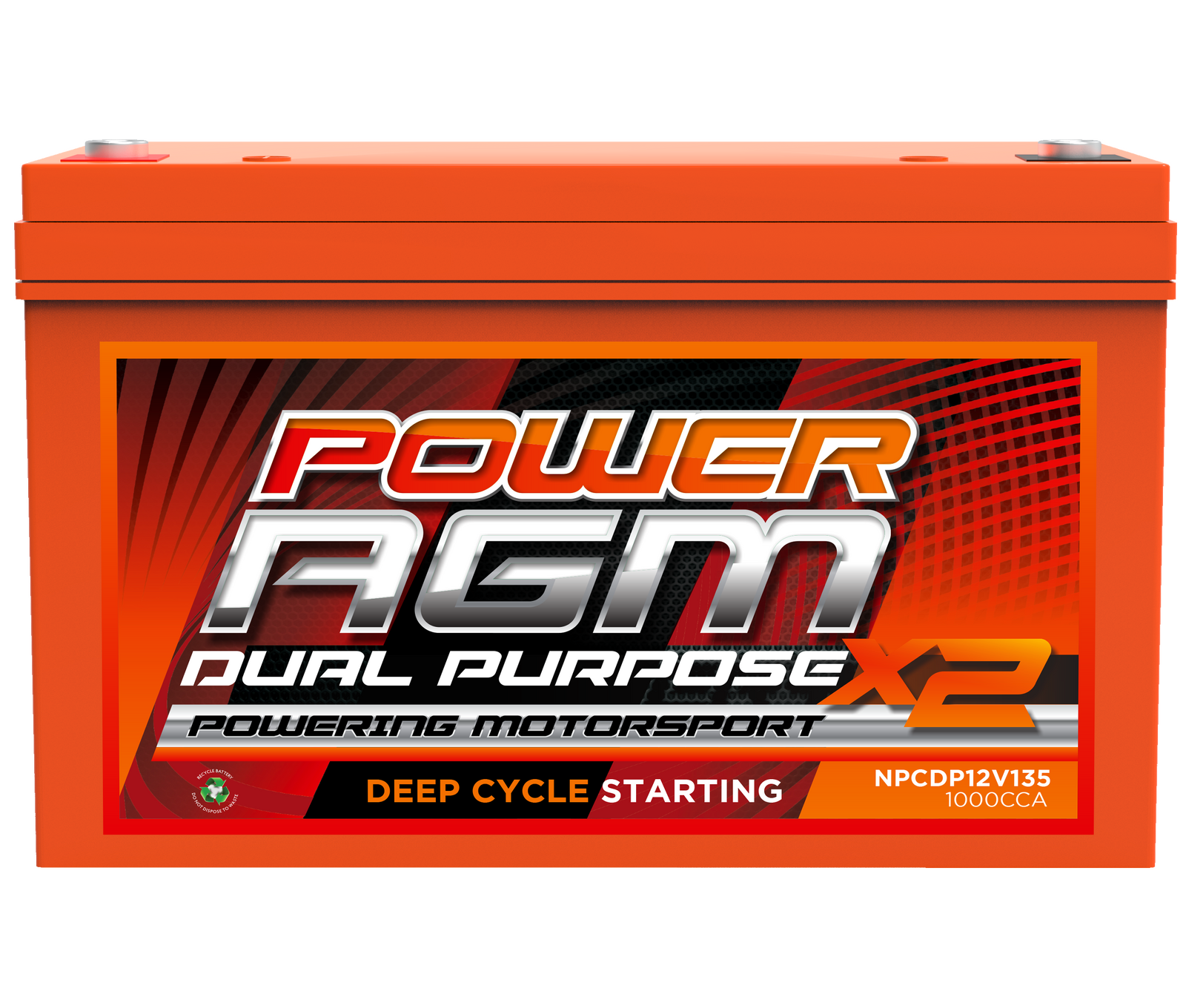

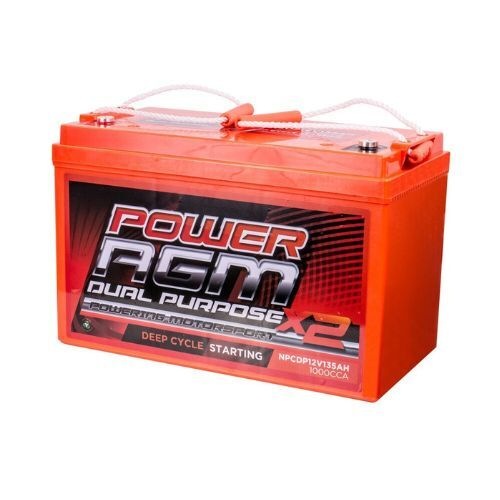

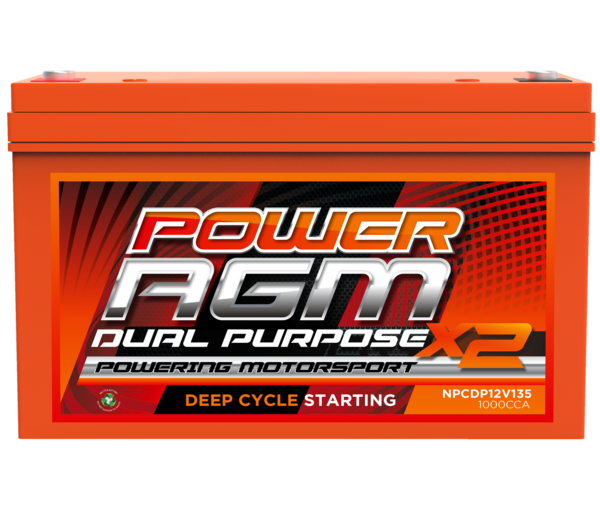

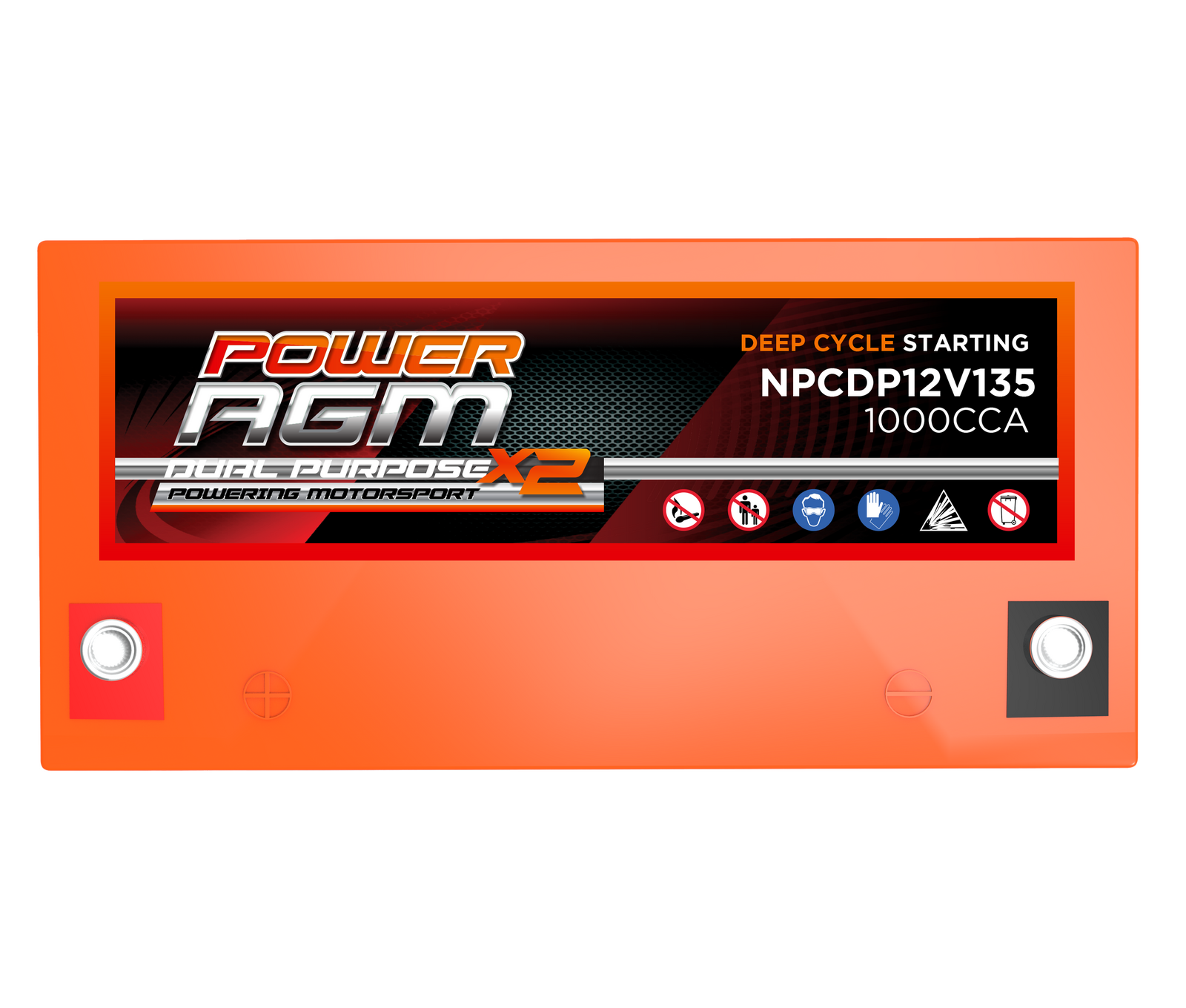

Power AGM 12V 135Ah Dual Purpose Battery

The Power AGM NPCDP12V135AH Dual Purpose Car Battery will keep your car on the road for longer – built tough and reliable to withstand the harshest conditions.Also from the Power AGM family comes a product that is AGM, but also “under bonnet” rated. The AGM Dual Purpose has many size and polarity options. Ideal for 4WD start and dual battery setups.The rechargeable batteries are lead-lead dioxide systems. The dilute sulphuric acid electrolyte is absorbed by separators and thus immobilised.

Should the battery be accidentally overcharged producing hydrogen and oxygen, special one-way valves allow the gases to escape thus avoiding excessive pressure build-up. Otherwise, the battery is completely sealed and is, therefore, maintenance-free, leak-proof and usable in any position.

Features:

• Using oxygen recombination technology: maintenance-free
• PbCaSn alloy for plate grids:low self discharge rate than 3% per month
• High quality AGM separator: extend cycle life and prevent micro short circuitretardant
• High purity raw material: 99.99% pure lead

Applications:

• Cable Television
• Communication
• Equipment
• Security System
• UPS
• Control Equipment
• Medical Equipment
• Emergency Power

Specifications:

• Battery Type: AGM Deep Cycle Battery
• Capacity:
  • 20HR(7.15A,1.80V) - 143Ah
  • 10HR(13.5A,1.80V) - 135Ah
  • 5HR(25.3A,1.75V) - 127Ah
  • 1HR(89.1A,1.60V) - 894.1Ah
• Dimensions: 330 x 171 x 214mm (LxWxH)
• Weight: 34.5kg
• Internal Resistance:  Full charged at 20°C: 0.0038 Ohm
• CCA: 1000
• Self Discharge:  3% of capacit y declined per month at (20 oC)
• Capacity Affected by Temperature (10HR):
  • 40°C - 109%
  • 20°C - 100%
  • 0°C - 85%
  • -15°C -65%
• Charge Voltage (20°C):
  • Cycle Use - 14.1-14.8V(-30mV/°C), max. Current: 33.75A
  • Float Use - 13.6-13.8V(-18mV/° C)

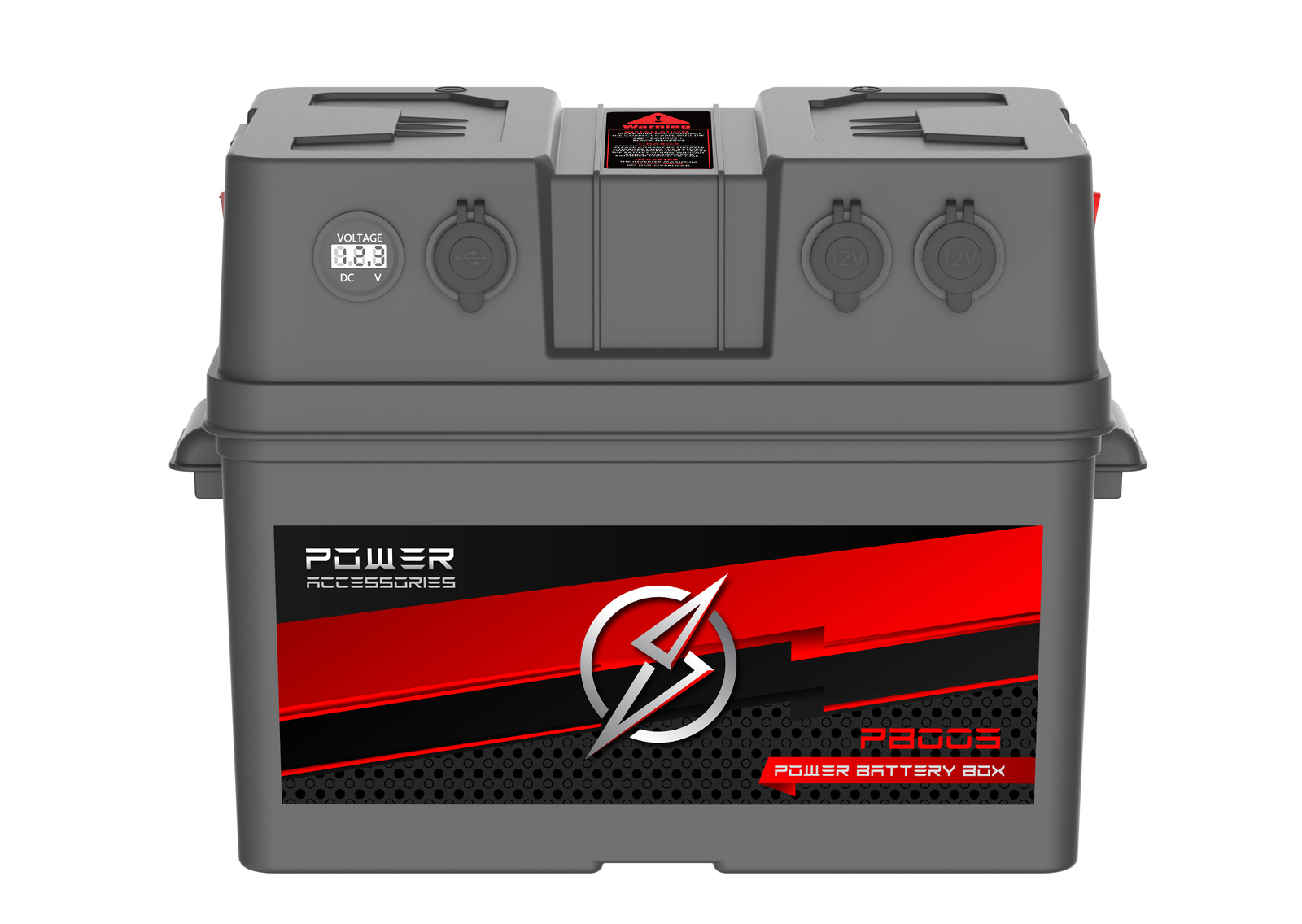

Power Accessories Portable Multi-Function Battery Box with LED light

Instructions For Use:

1. Remove the lid of the Battery Box.
2. Place the battery in the battery box.
3. Attach the clamps from the battery box lid to the corresponding positive and negative terminals on the battery. Fasten the bolts firmly, ensuring they will not become loose.
4. Place lid onto the battery box, making sure that it is evenly and completely shut.
5. With the lid on and the terminals connected, switch the battery to ON using the ON/OFF switch and test the voltage with the voltmeter.
6. If the voltmeter lights up and displays the battery’s voltage, you can now secure the lid.
7. Turn on the LED light switch and check to see if LED light is on or not.
8. To secure the lid, thread the strap around the box and through the two plastic buckles. Fasten and secure on top of the unit.
9. You are now free to plug in your devices to power them with your battery.
