Voltage: 32 (limited by fuses). VDC
Maximum Continuous Current : 350A.
Max Per Circuit (Midi) Fuse Rating : 170A.
Max Fuse Per Circuit (Auto) Rating : 30A.
Power Input Stud: M8 (300A max.) stainless steel
Midi Fuse Output Studs: M8 stainless steel
Input & Output Studs Torque: 20Nm
Midi Fuse Screw: M5 x 6pcs (+ 2 spare screws)
Midi Fuse Screw Torque: 3 Nm
Body Material: Glass filled nylon 94V-0
Cover Material: PC 94V-0
Temperature Rating: - C to + 5 C 55 12 .

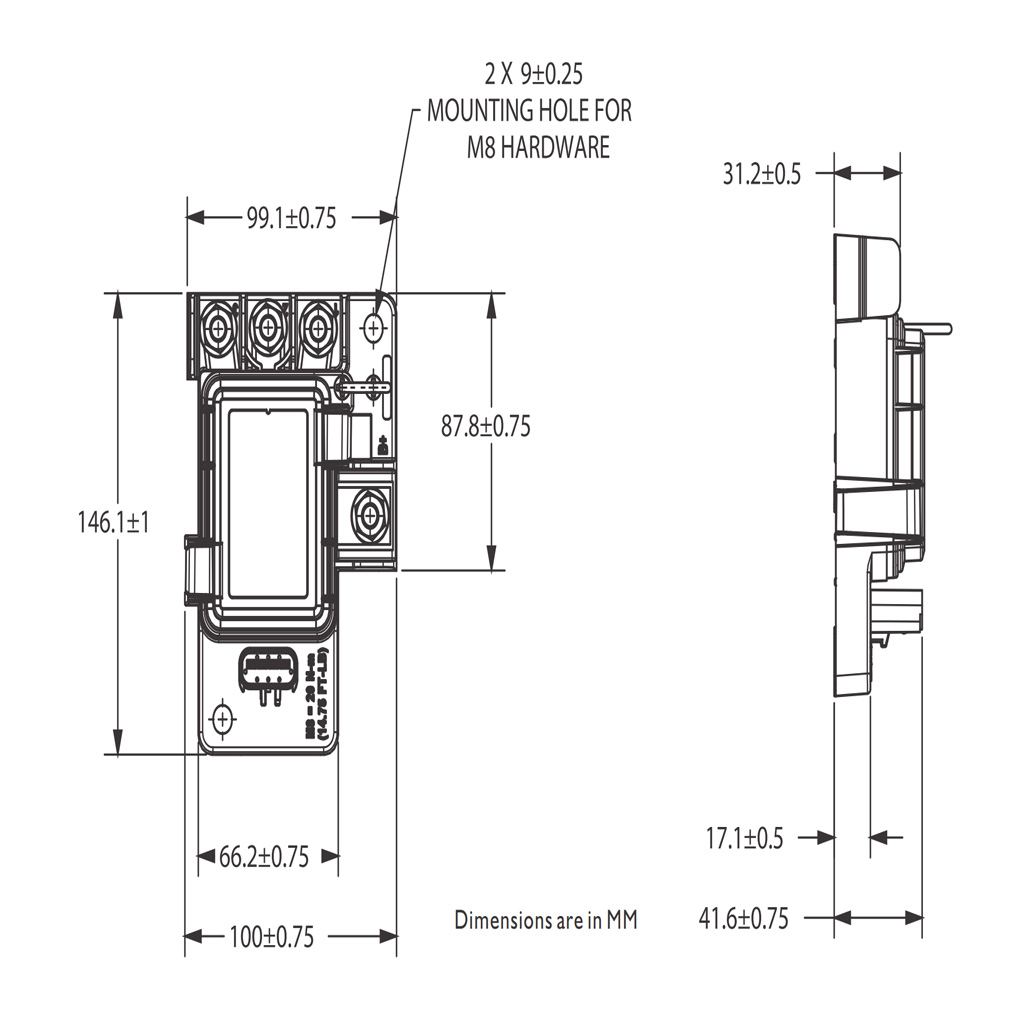

Mounting: 2 holes for M8 bolts.
Kit Contents: Includes cover, nuts & screws.
IP Rating: IP59K
Ignition protected: Meets ISO 8846 & SAE J1171
Notes: A connector is required for the Autofuse
outputs.

Connector for Auto fuses is included

Fuses not included.

Voltage: 32 (limited by fuses). VDC
Maximum Continuous Current : 350A.
Max Per Circuit (Midi) Fuse Rating : 170A.
Max Fuse Per Circuit (Auto) Rating : 30A.
Power Input Stud: M8 (300A max.) stainless steel
Midi Fuse Output Studs: M8 stainless steel
Input & Output Studs Torque: 20Nm
Midi Fuse Screw: M5 x 6pcs (+ 2 spare screws)
Midi Fuse Screw Torque: 3 Nm
Body Material: Glass filled nylon 94V-0
Cover Material: PC 94V-0
Temperature Rating: - C to + 5 C 55 12 .
Mounting: 2 holes for M8 bolts.
Kit Contents: Includes cover, nuts & screws.
IP Rating: IP59K
Ignition protected: Meets ISO 8846 & SAE J1171
Notes: A connector is required for the Autofuse
outputs.

Connector for Auto fuses is included

Fuses not included.

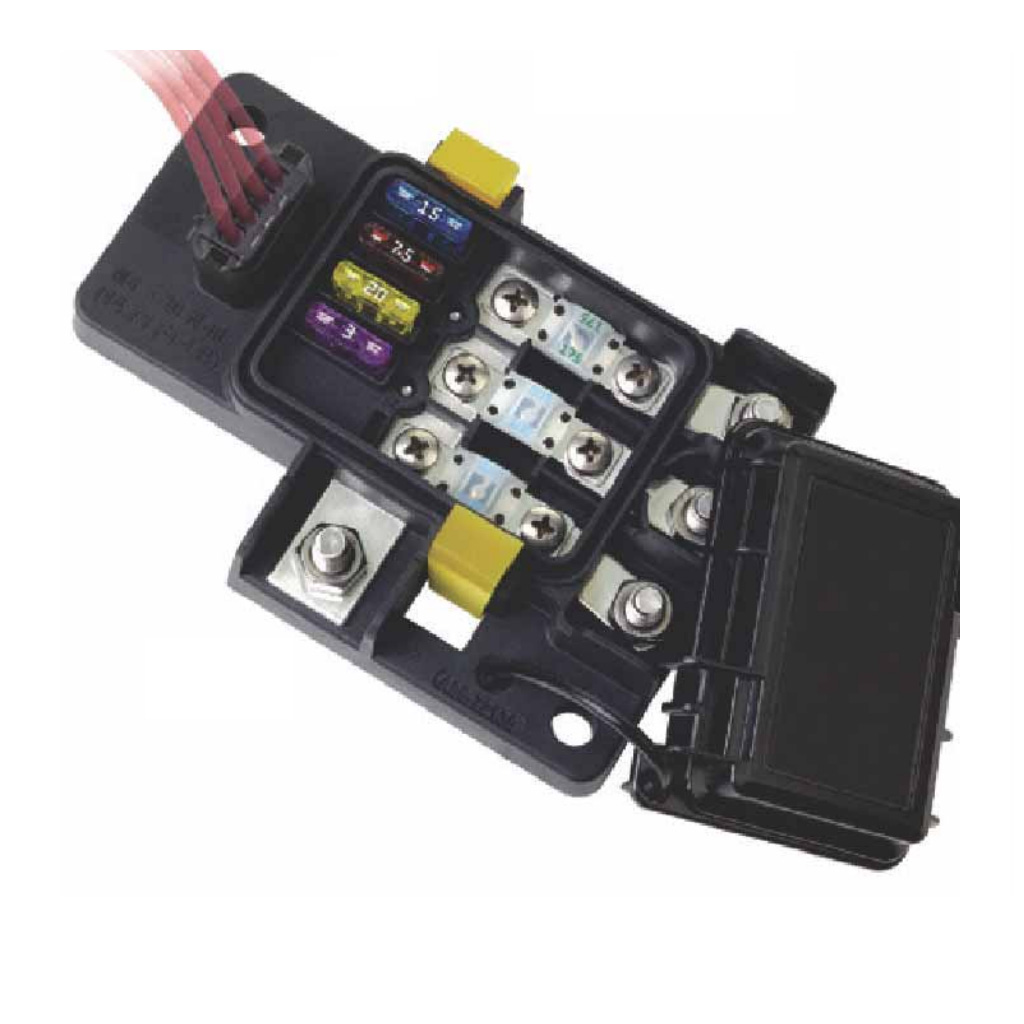

Protect high and low-amp circuits with this PDM. Holds 3 x MIDI fuses and 4 x Auto fuses.

The Auto fuse output circuits are wired to an integrated sealed 4-way connector (P/N: XTCK4).

A common power input stud provides power for the 7 fuses via a tin-plated copper busbar.

Stainless steel studs and hardware provides superior corrosion resistance.

Cover & gasket included.

Includes connector for Auto fuses

** fuses not included**
