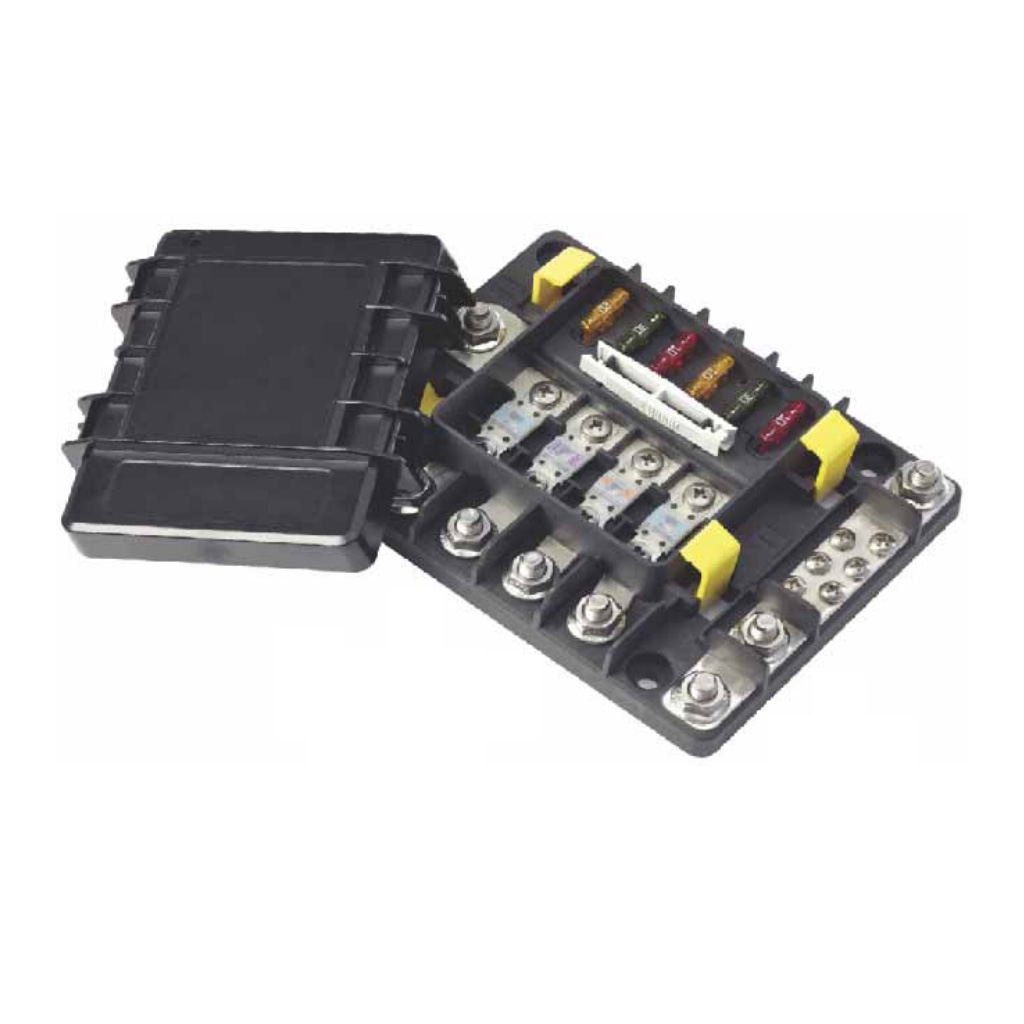

Protect high and low-amp circuits while providing a collection point for ground returns.

Combines an ignition protected fuse block with screw termination.

Fits 4 x MIDI fuses and 6 x Auto fuses.

Negative bus provides common location for ground returns.

This module features a common power input stud for the 10 fuses.

Voltage: 60 (limited by fuses) VDC
Max Total Cont. Current: 600A (2 x 4/0 feed cables)
Max Midi Fuse Cont. Current: 170A
Max Auto Fuse Cont. Current: 30A
Recommended Ring Terminal: M8 (5/16')
Stud Size: 4 x M8 (5/16')
Temperature Rating: - C to + 5 C 50 12 .
Shock: 50G
Vibration: 8G
Salt Spray: 1,080 hours
Kit Contents: Includes fuse puller & cover with gasket.
IP Rating: IP59K
Ignition protected: Meets ISO 8846 & SAE J1171
Dimensions: 165 x 127 x 51mm
Notes: Fuses not included.

Protect high and low-amp circuits while providing a collection point for ground returns.

Combines an ignition protected fuse block with screw termination.

Fits 4 x MIDI fuses and 6 x Auto fuses.

Negative bus provides common location for ground returns.

This module features a common power input stud for the 10 fuses.

Voltage: 60 (limited by fuses) VDC
Max Total Cont. Current: 600A (2 x 4/0 feed cables)
Max Midi Fuse Cont. Current: 170A
Max Auto Fuse Cont. Current: 30A
Recommended Ring Terminal: M8 (5/16')
Stud Size: 4 x M8 (5/16')
Temperature Rating: - C to + 5 C 50 12 .
Shock: 50G
Vibration: 8G
Salt Spray: 1,080 hours
Kit Contents: Includes fuse puller & cover with gasket.
IP Rating: IP59K
Ignition protected: Meets ISO 8846 & SAE J1171
Dimensions: 165 x 127 x 51mm
Notes: Fuses not included.

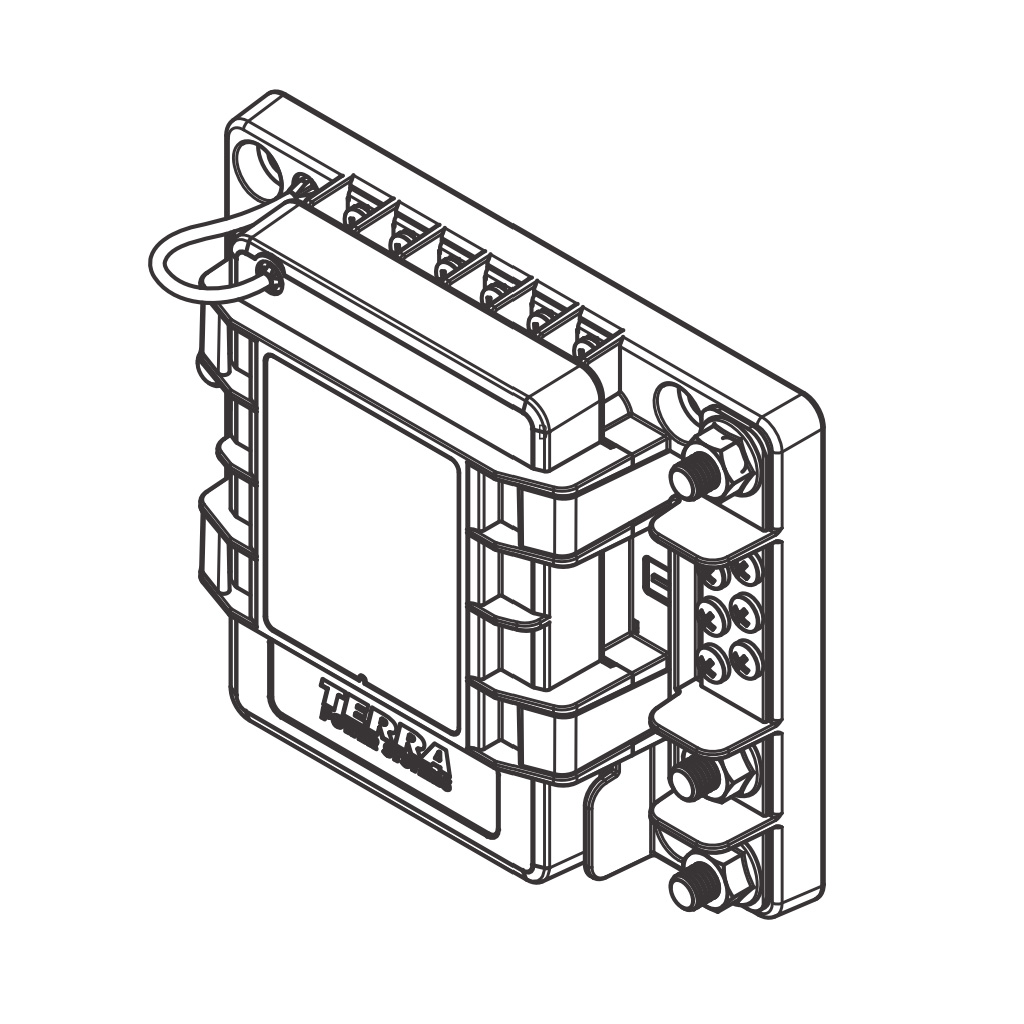

Rugged box with Assure-Latch Technology is sealed to IP59K, and is designed to withstand high-pressure, high temperature washing or ingress of roadsplash.

Provides the benefits of a sealed cover, but allows water to escape if the cover is mistakenly unsecured.

Allows permanent cable connections to be protected for harsh environments, while leaving fuse connections clean and protected.

Provides storage for ATO fuse puller (included), 4 x spare fuses (not included) and 6 x spare attachment screws (not included).

Cover is tethered so that it cannot be lost.

Ignition protected to SAE J1171 and ISO 8846 for installation in a battery box or on vehicles carrying hazardous loads.

Compact unit fits conveniently inside or near battery boxes, and consolidates fusing for ten added circuits, while providing a collection point for negative returns.

** Does not include fuses**
