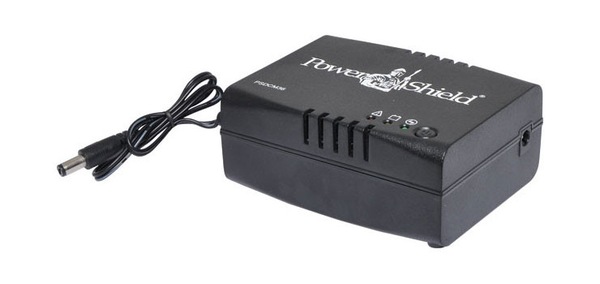

Powershield DC-Mini36 12-24V DC 36W NBN Uninterruptible Power Supply

Image 1
Image 2
Hurry! 19 items left!
$279

Collect 279 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Sold & shipped by MAD Electronics Australia
Secure ways to pay at checkout
Pay in 4 interest-free payments of $69.75 with PayPal

The Powershield DC - Mini 36 UPS is an ideal back up solution for routers, modems, security cameras, wifi extenders and VOIP phones. Its the perfect emergency backup power to DC powered equipment. It comes with 6 DC adaptors to suit your connection requirements. The DC Mini can economically provide hours of operation during power failure.

Features

  • Includes 4 x Li-Ion batteries
  • Auto-start when plugged in
  • Microprocessor control
  • Multicolour LED indicator and manual Power Off Switch
  • Overload, short circuit, over charge and over discharge protection
  • Long backup time
  • Additional terminal output for hardwired DC connection
  • 2.1mm DC input jack
    • Input Voltage: 12V~24V DC
    • Input Jack: 2.1mm coaxial DC jack socket.
    • Input Frequency: 50/60Hz
    • Output Voltage: 12V/15V/19V/24V Auto-Detection
    • Output Current: 36W = 3A / 2.4A / 1.89A / 1.5A
    • Protection: Short Circuit Protection l Over Load Protection l Over Current Protection l Over Voltage Protection I Over Charging I Over Discharging
    • Battery
    • Type: Lithium-ion 18650 type battery (4 x 2600mAh)
    • Voltage: 7.4V
    • Capacity: 5200mAh
    • Protection: Over Charge Protection l Over Discharge Protection I Over Current I Over Voltage
    • Backup Time: 36W = Full 20 minutes / 18W Half 60 minutes
    • Indicators
    • LED: ON Green, Battery Yellow, Fault Red
    • Output Connectors
    • Output Cord: DC Power Cord + Terminal

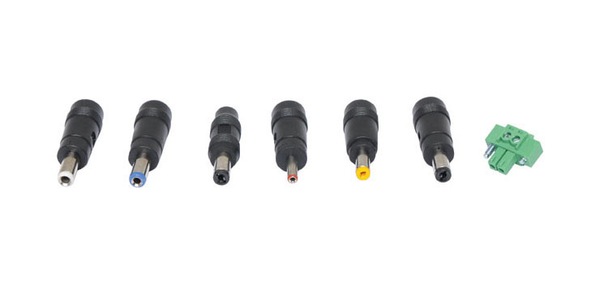

    • Included Connector (Total: 6 pieces): F5.5mm x 2.5mm / M5.5mm x 2.1mm & F5.5mm x 2.1mm / M5.5mm x 2.5mm F4.8mm x 1.7mm / M5.5mm x 2.1mm & F5.5 x 2.1mm / M4.8mm x 1.7mm F3.5mm x 1.35mm / M5.5mm x 2.1mm & F5.5 x 2.1mm / M3.5mm x 1.35mm
    • Dimensions
    • Dimension: 105D x 80W x 43Hmm
    • Weight: 320g
    • Environment
    • Humidity: 0% to 95% Non-condensing
    • Operating Temperature: 0oC to 40oC
    • Typical device back up times
    • Small Router (6 Watts): 24 hours
    • Medium Router (12 Watts): 12 hours

*Specifications are subject to change without notice.

GTIN: 9346909001078
