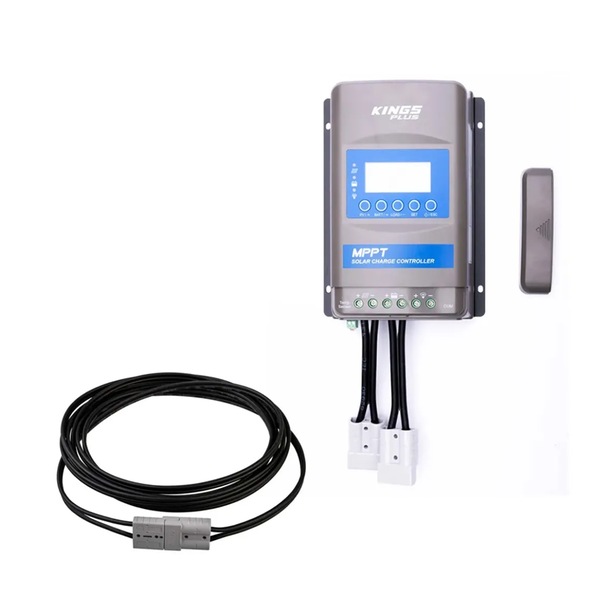

Adventure Kings Premium MPPT (Lithium Compatible) Solar regulator + 6m Extension Lead

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Limited Stock
$128.95

Collect 128 Everyday Rewards points

Log in to MyDeal to link your card
$15.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout
standalone solar regulator for your 12V or 24V system. Switch between Lithium, Sealed (AGM), Gel and Flooded charge profiles

• Powerful 20A charge rating! Accepts up to 390W of solar on 12V Systems! digital display shows real-time amps, volts, watts and battery capacity percentage

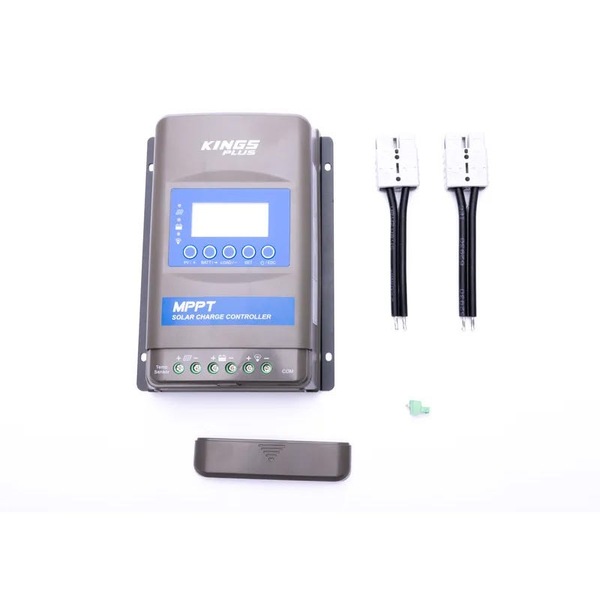

• Includes 2 x 50A Kings Quick-Connect plugs plus plug-in temperature sensor

• 6 meter Cable length extends your solar panels reach. Heat, water and abrasion resistant outer sheath

• Fitted with 50 Amp rated quick-connect plugs. Extra thick 2.5mm2 copper wiring improves performance

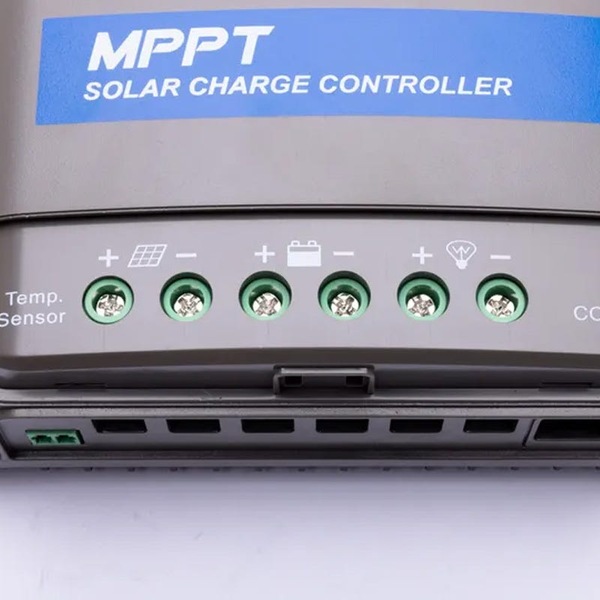

Kings Plus Premium 20A MPPT Solar Regulator



AGM And Lithium Compatible (12V/24V) Sealed, Gel, Flooded, Lifepo4, Li(NiCoMn)O2, User Adjustable

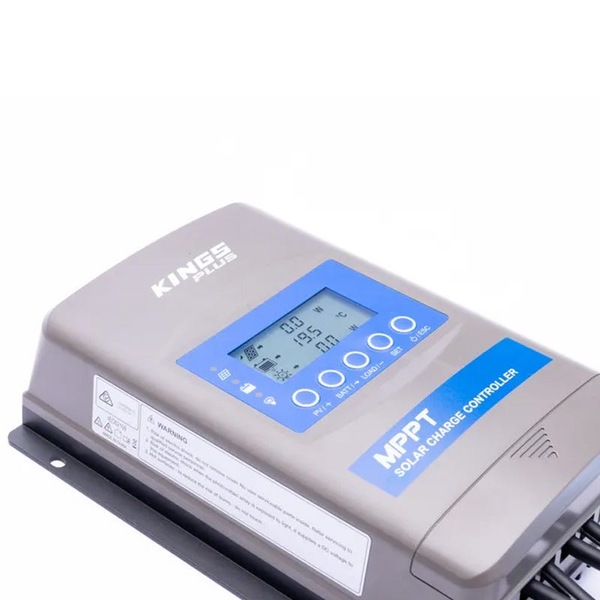

Display Backlit LCD + LED Indicator Lights
Wire Specification 100mm Double Insulated XLPO 6mm2 + Quick Connect Plugs

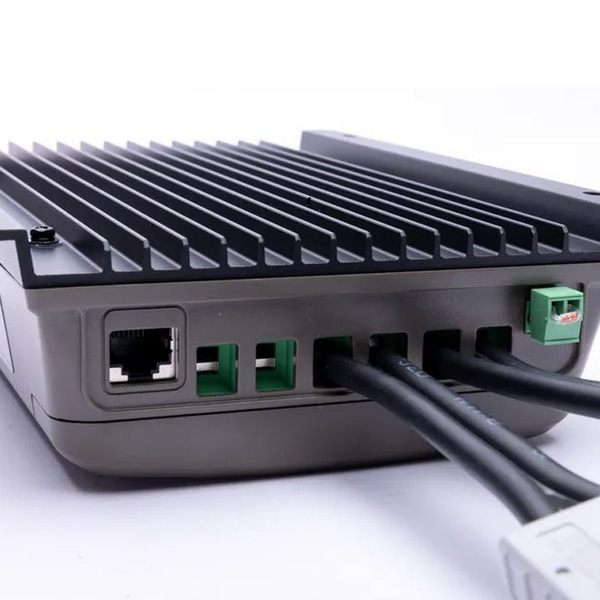

Terminal Type (Max Wire Size) Screw Terminals (6 AWG / 16mm2)
Grounding Common Negative
IP Rating IP33 Dust And Water Resistant
Body Dimensions (Mounting Hole Dimensions) 217 X 158 X 57 mm (160 X 149 mm)
Battery Voltage Range 8 - 32V
Max Power Point Working Range Battery Voltage +2V to 36V
Max PV Open Cell Voltage Input @ 25°C STC 46V
Maximum Solar Power Input 390W (12V) 780w (24V)
Standby Power Usage (12v / 24v) 14mA (12V) 15mA (24V)
Max Dc Dc Conversion Efficiency >98%
Max Tracking Efficiency 99.5%
Load Circuit Manual On/Off + Programmable Settings

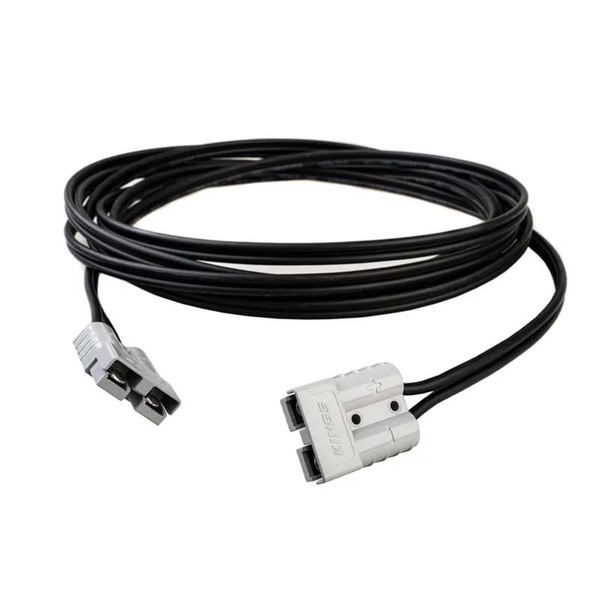

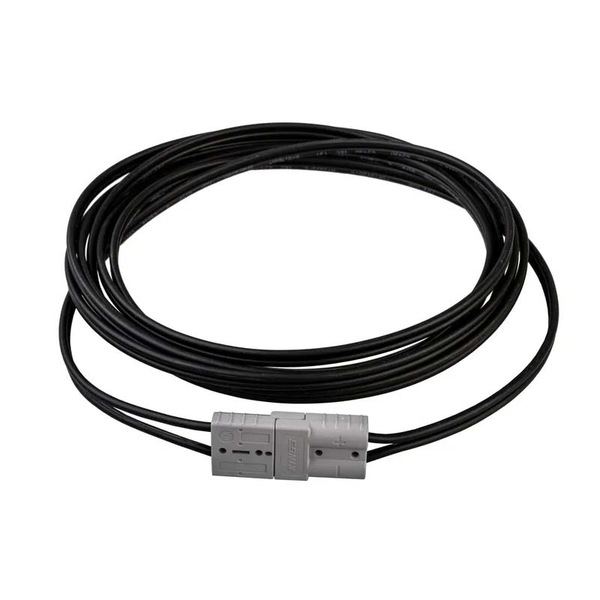

Kings 6m Solar Panel Blanket Extension Lead 2.5mm High Quality Copper Heavy Duty

Specifications:

• Length: 6m

• Conductor Material: Multi-Strand Copper 51x0.25

• Conductor Cross-Sectional Area (each wire): 2.5mm2

• Insulation Material: 0.8mm PVC

• Outer Sheath Material: 1mm PVC

• Outer Diameter: 9.3mm

• Recommended Maximum Current: 20A

• Operating Temperature Range: -5°C~+70°

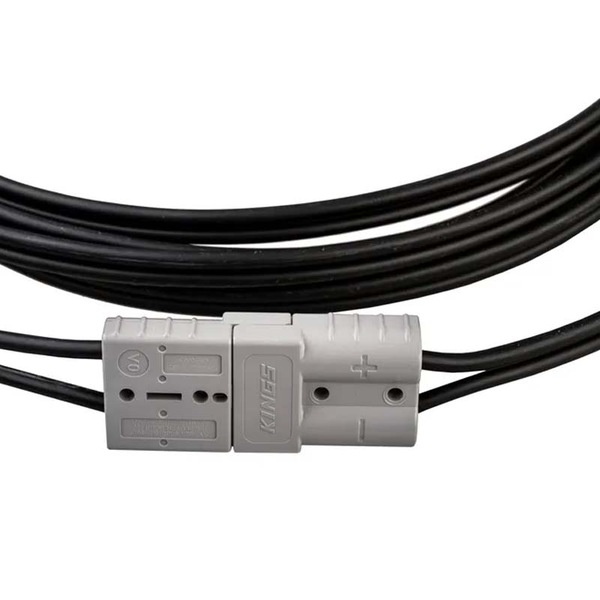

• Plug Type: Anderson-style Quick Connect

• Plug Rating: 50A

• Plug Material: UL94-V0 Flame Resistant Thermoplastic

• Connector Material: Copper

• Maximum Rated Voltage: 300V

MPN: SC-CO-PMPPTREG-6MLEAD
