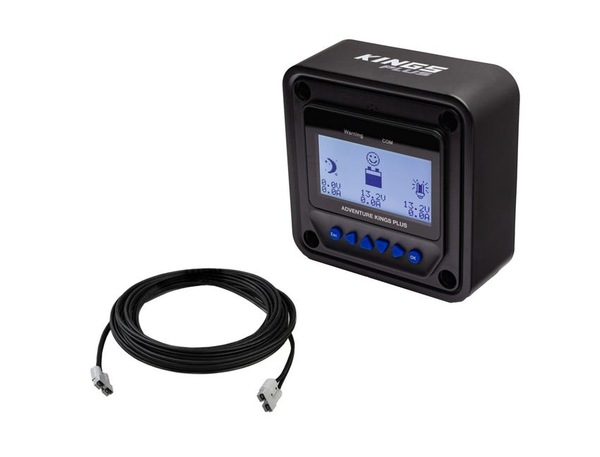

Premium MPPT Remote Display + Solar Extension lead 12m

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
$97.90

Collect 97 Everyday Rewards points

Log in to MyDeal to link your card
$15.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout

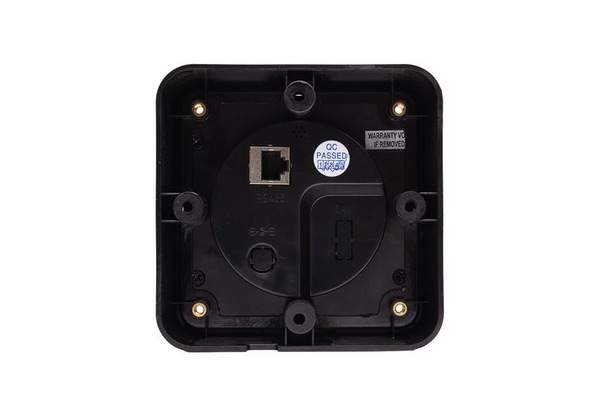

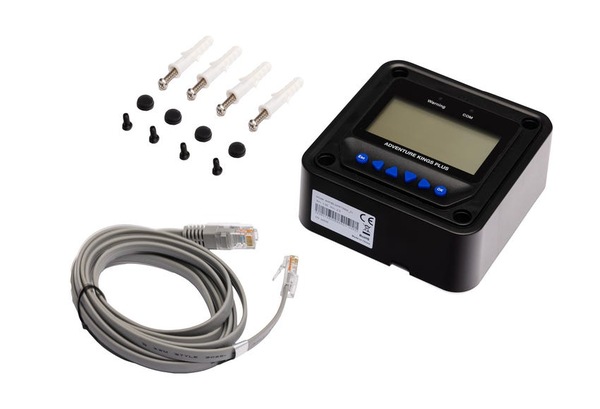

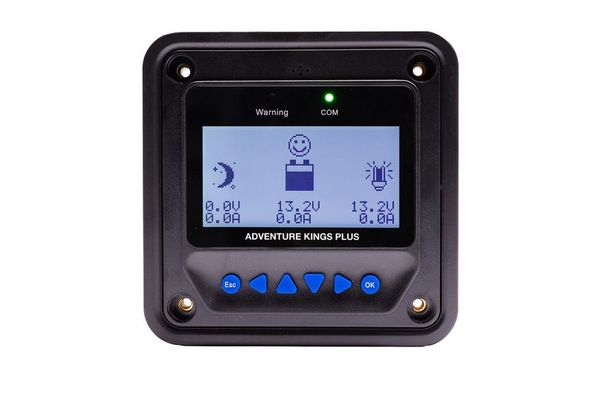

ADVENTURE KINGS PREMIUM MPPT REMOTE DISPLAY



Perfect for installations in caravans, motorhomes and 4WDs where you might have your batteries built into a compartment that’s not instantly accessible!
Allows you to control all the functions of the Kings Plus Premium MPPT Regulators, including setting battery type and capacity, displays real-time information, like volts and amps coming into the regulator from your solar, as well as power output to your battery, and current battery level.

Compatibility Adventure Kings Plus 20 and 40 AMP MPPT Regulators
Mounting Options Wall and Flush option
Cable Length 2 Meters
Operating Temperature Range -20 to +70Cº
Power Consumption Under 30mA
Dimensions 4.8 * 11.4 * 11.4cm
Weight 0.23 KG

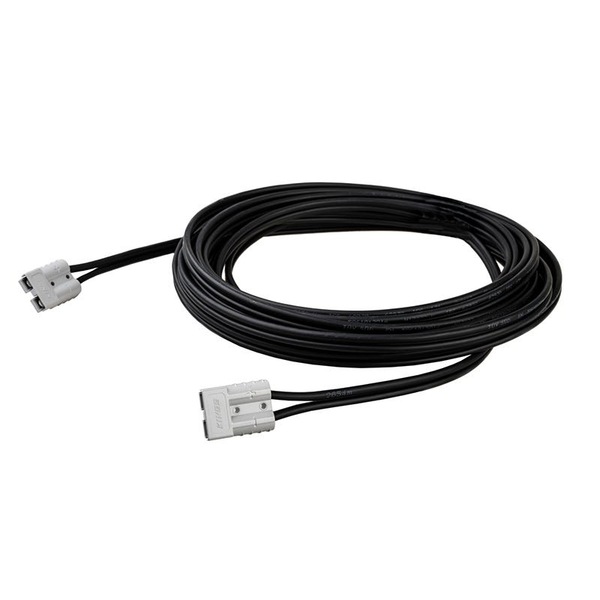

KINGS 12M EXTENSION LEAD | 6MM2


Specifically designed for DC solar systems, Kings Solar Leads are H1Z2Z2-K rated, meaning they’re up to standard internally with quality tinned copper strands, and externally with two layers of tough Cross Linked PolyEthylene (XLPE) halogen-free insulation. Each wire is individually insulated with 0.8mm of XLPE, plus there’s an extra 0.9mm thick XLPE protective sheath that covers both cables. The sheath is heat and water resistant and offers extra abrasion resistance too





Length 12m
Conductor Material Twin Core Multi-Strand Copper (84x0.3)
Conductor Cross Sectional Area (each wire) 6mm2
Insulation Material 0.8mm Halogen-Free XLPO
Outer Sheath material 0.9mm Halogen-Free XLPO
External Dimensions 13.5mm x 5mm
Recommended Maximum Current 20A
Operating Temperature Range -40°C~+90°

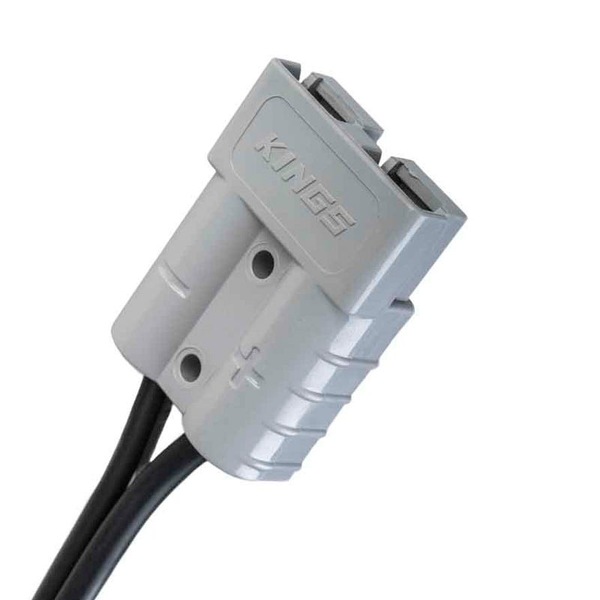

Plug Type Kings Quick Connect Plugs (Anderson Compatible)
Plug Rating 50A
Plug Material UL94-V0 Flame Resistant Thermoplastic
Connector Material Copper
Maximum Rated Voltage DC 1500V

MPN: SC-CO-MPPTREM-12MLEAD
