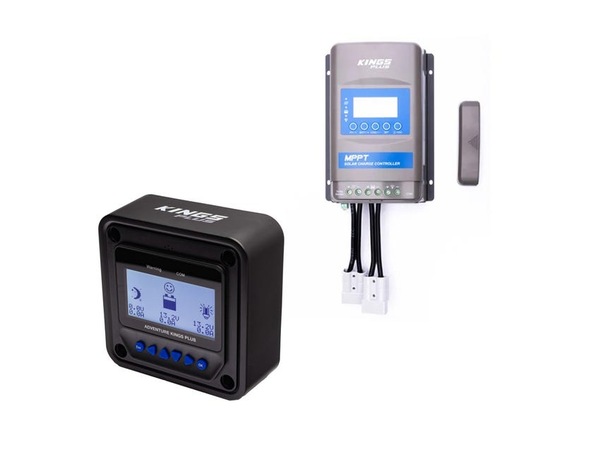

Premium MPPT Solar Regulator + Premium MPPT Remote Display

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Image 8
Image 9
Image 10
$168.95

Collect 168 Everyday Rewards points

Log in to MyDeal to link your card
$15.00 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Outdoor Supacentre Pty Ltd
Secure ways to pay at checkout

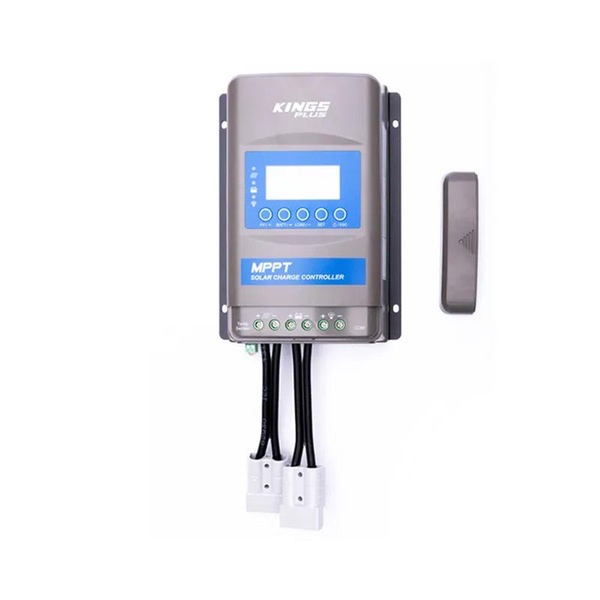

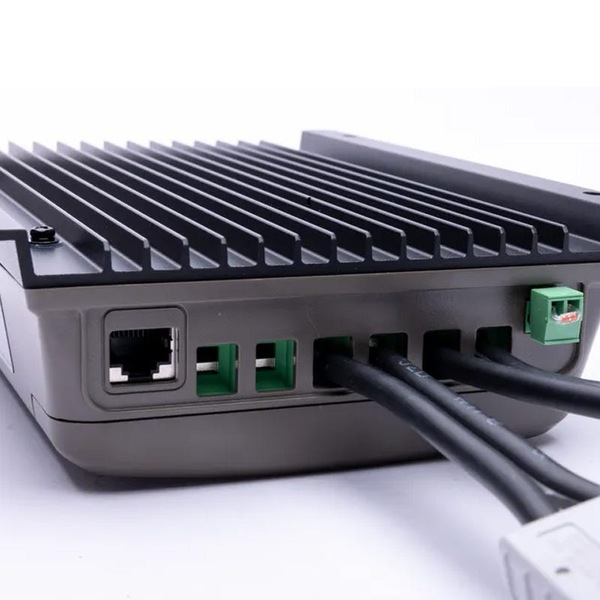

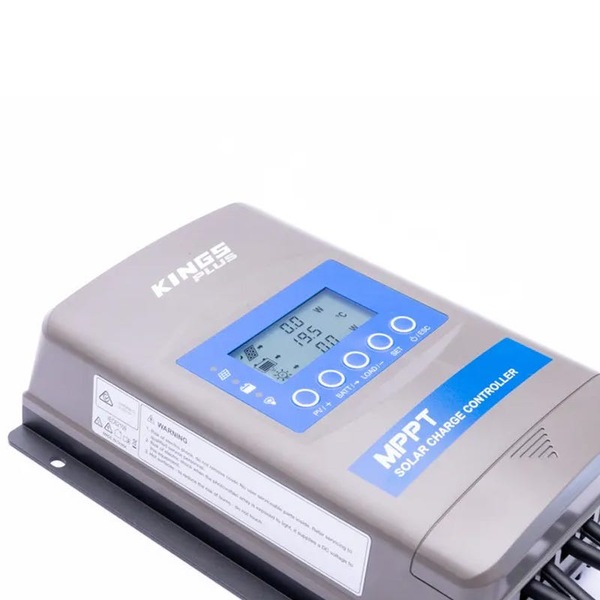

PREMIUM 20A MPPT SOLAR REGULATOR

This 20A solar charge controller is lithium compatible with dedicated multi-stage charging profiles for different battery types, shows real time power stats and accept up to 46V of solar input in standard conditions! It also offers a huge amount of customisation so it can suit AGM or lithium, 12V or 24V right up to 780W of solar input with a 20A charge rating.





AGM And Lithium Compatible (12V/24V)- Sealed, Gel, Flooded, Lifepo4, Li(NiCoMn)O2,
Display Backlit LCD + LED Indicator Lights
Wire Specification - 100mm Double Insulated XLPO 6mm2 + Quick Connect Plugs

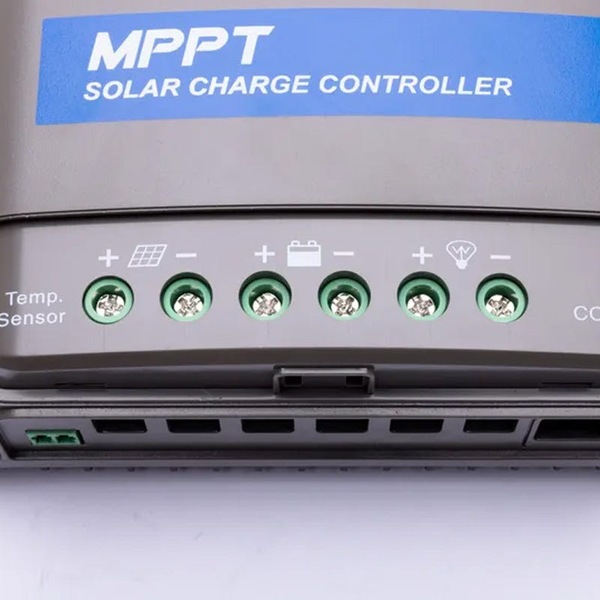

Terminal Type (Max Wire Size) Screw Terminals (6 AWG / 16mm2)
Grounding Common Negative
IP Rating IP33 Dust And Water Resistant

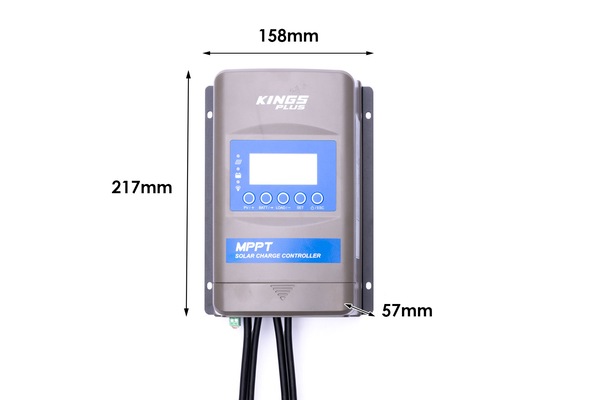

217 X 158 X 57 mm
Battery Voltage Range 8 - 32V
Max Power Point Working Range Battery Voltage +2V to 36V
Max PV Open Cell Voltage Input @ 25°C STC 46V
Maximum Solar Power Input 390W (12V) 780w (24V)
Standby Power Usage (12v / 24v) 14mA (12V) 15mA (24V)
Max Dc Dc Conversion Efficiency >98%
Max Tracking Efficiency 99.5%

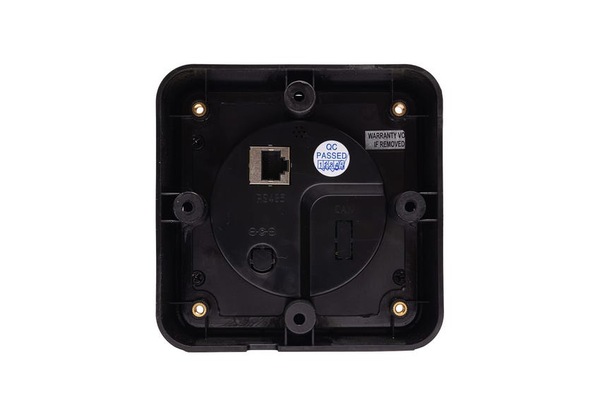

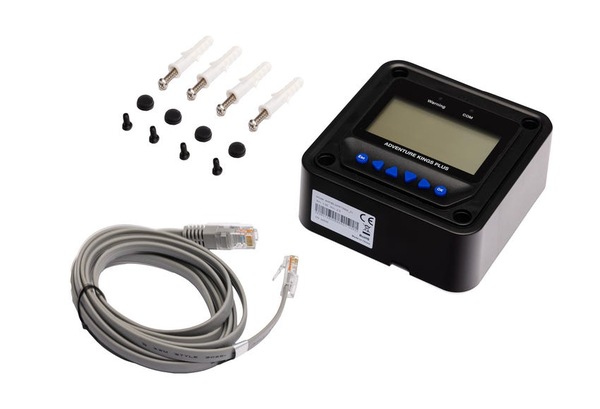

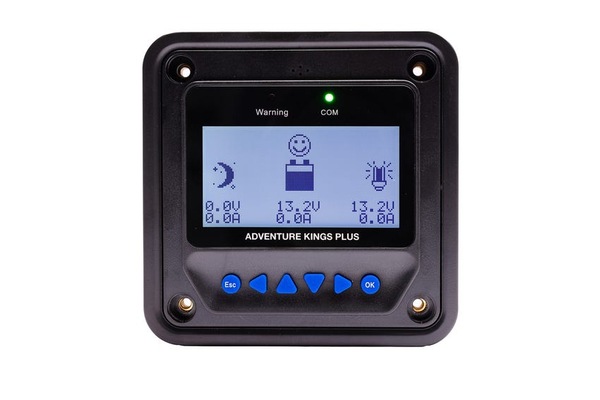

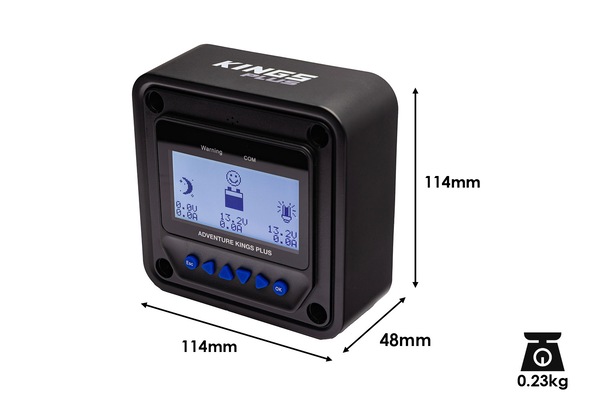

PREMIUM MPPT REMOTE DISPLAY


Control and monitor ( setting battery type and capacity, displays real-time information, like volts and amps coming into the regulator from your solar, as well as power output to your battery, and current battery level.  ) and unlock additional functions like fully adjustable charging values and fault-recording history!

Perfect for installations in caravans, motorhomes and 4WDs where you have batteries built into a compartment that’s not instantly accessible!

Compatibility Adventure Kings Plus 20 and 40 AMP MPPT Regulators
Mounting Options Wall and Flush option
Cable Length 2 Meters
Operating Temperature Range -20 to +70Cº
Power Consumption Under 30mA
Dimensions 4.8 * 11.4 * 11.4cm
Weight 0.23 KG

MPN: SC-CO-PMPPTREG-MPPTREM
