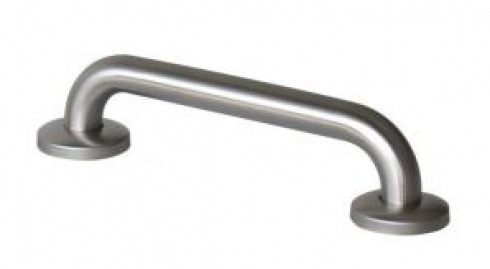

[Preorder] Jd Macdonald Germshield Gss Straight Grab Rail - Silver 300Mm L X 32Mm Dia
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
JDM-GSS-3: 300mm L x 32mm Dia (also known as GCS300)
JDM-GSS-6: 600mm L x 32mm Dia (also known as GCS600)
JDM-GSS-7: 700mm L x 32mm Dia
Features
- Fabricated of grade 304 stainless steel
- Innovative hygienically sealed flange
Specifcation
- Designed for the safety, security and convenience of the physically disabled with the added protection of the Germ Shield rubber seal.
- Easy to install on most building surfaces.
- Grab Rails shall be type 304 stainless steel alloy 18-8.
- Tubing shall be 32mm diameter x 18 gauge (1.2mm).
- Flange shall be 5mm thick and shall be Heliarc welded to tubing with a continuous concealed bead and shall have three (3) 7mm diameter mounting holes.
- Cover plates to conceal flange and fixings shall be 2.8mm stainless steel.
- All exposed surfaces shall have a Satin finish.
Installation

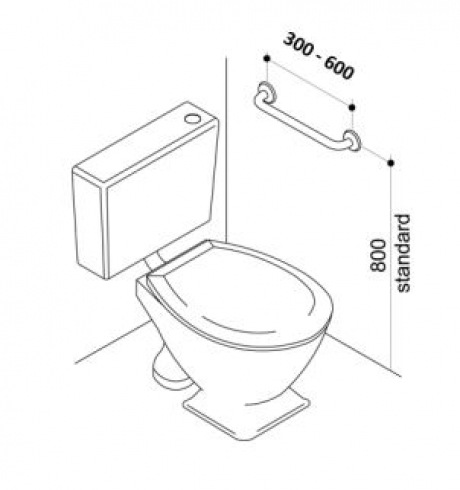

- To comply with Australian Standards, grab rails must be fastened a minimum distance of 800mm from the floor, with 600mm of clear space above the rail and to withstand a force of 1100N at any point from any direction.
Warranty
- 12 months from the date of purchase
MPN: JDM-GSS-3
Reference ID: 5274289
