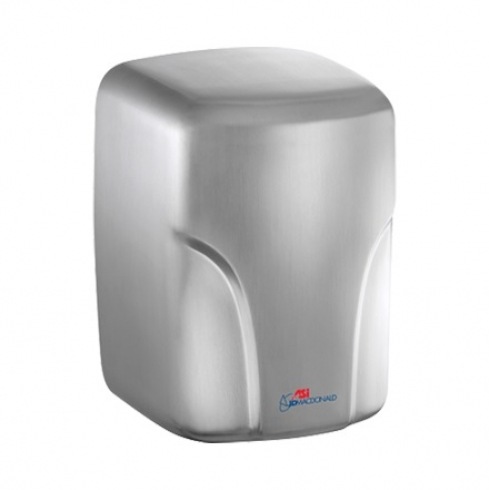

[Preorder] Jd Macdonald Turbo-Dri Hand Dryer High Velocity Automatic 69 Decibel - Silver
,gravity=Center,allowExpansion)
,gravity=Center,allowExpansion)
Features:
* Finish - Satin Stainless Steel
* Quick drying - less than 12 seconds
* Powerful yet quiet
* Auto-resetting thermostat
* 60-second automatic shut off
* Cover fabricated of heavy-duty, one-piece-formed stainless steel
* Fixed directional air nozzle shall be heavy-duty, rust-proof and highly tamper resistant.
* Dimensions: 287mm W x 205mm H x 180mm D
* Weight: 5.8kg
* Warranty: 5 years
Installation:
1. Turn power switch supply off
2. Mark four mounting holes where you desire the installation to occur
3. Remove and retain 2 cover screws and cover
4. a. For in-wall (concealed power supply):
According to the local code, provide appropriate conduit to entry and then attach securely to chassis with correct strain relief connector
b. For Surface Mounted Conduit (exposed) power supply:
According to local code provide appropriate conduit to entry, and then attach securely to chassis with correct strain relief connector
5. Drill four holes and attach dryer to wall
6. Connect supply and ground wires to terminal block where indicated and connect wire to base plate with ground screw.
Recommended Installation Height: 48 (1219mm)
Operation:
* Operates automatically using infra-red sensor at base
Specifications:
* Output Air Speed: 156 mph
* Drying Time: Less than 15 seconds
* Standby-Power: Less than 0.5W
* Circuit Operation: Infrared Automatic, self adjusting
* Timing Protection: 60 seconds auto shut off
* Timing Duration: 1 seconds delayed turn off after last sensor read
* Operating Voltage: 220-240 VAC, 50/60 Hz, 1.6kW
* Output Warm Air Volume: 48 - 46 CFM
After something different? Check out the other Turbo-Dri options
MPN: 10-0197-2-93
