[PRIME B650EM-A WIFI] Asus PRIME B650EM A WIFI AMD Micro-ATX Motherboard

Image 1
Image 2
Image 3
Image 4
Image 5
Limited Stock
$250.46

Collect 250 Everyday Rewards points

Log in to MyDeal to link your card
$14.95 Australia-wide (per-item)

Dispatch in 2 business days

Sold & shipped by Best Deal Computers
Secure ways to pay at checkout

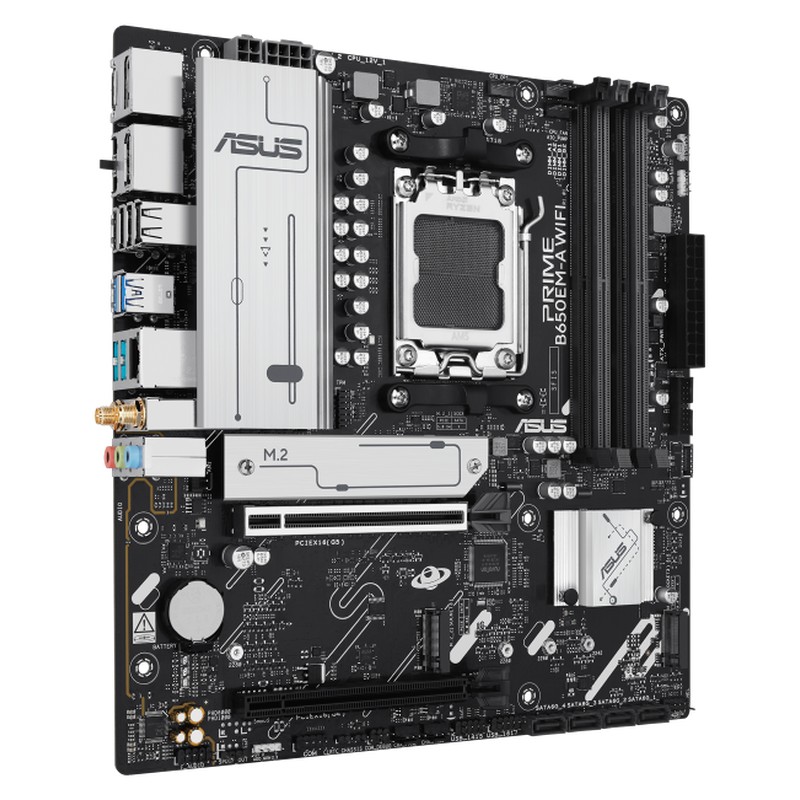

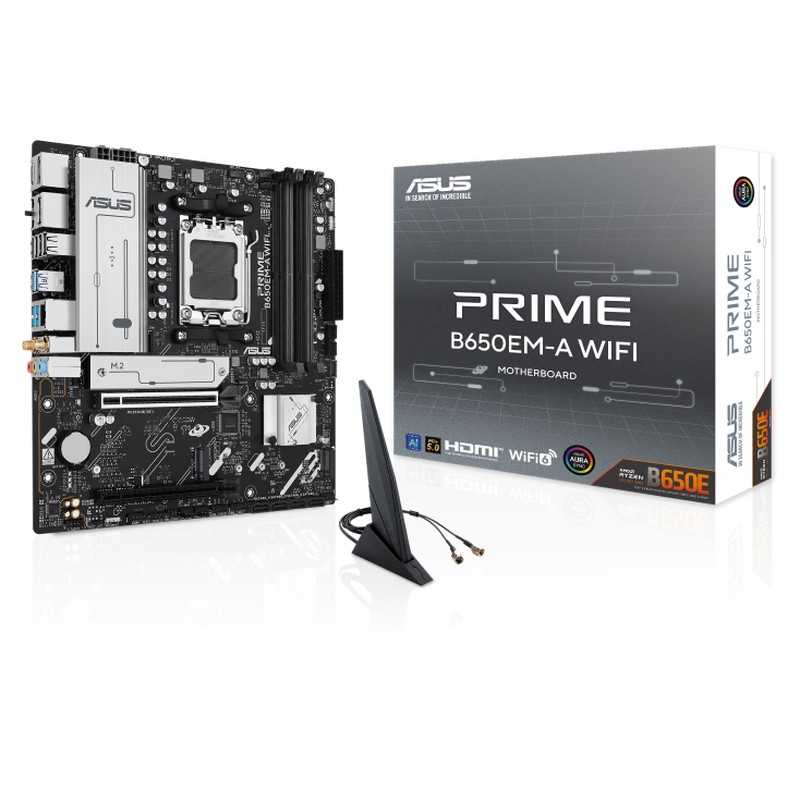

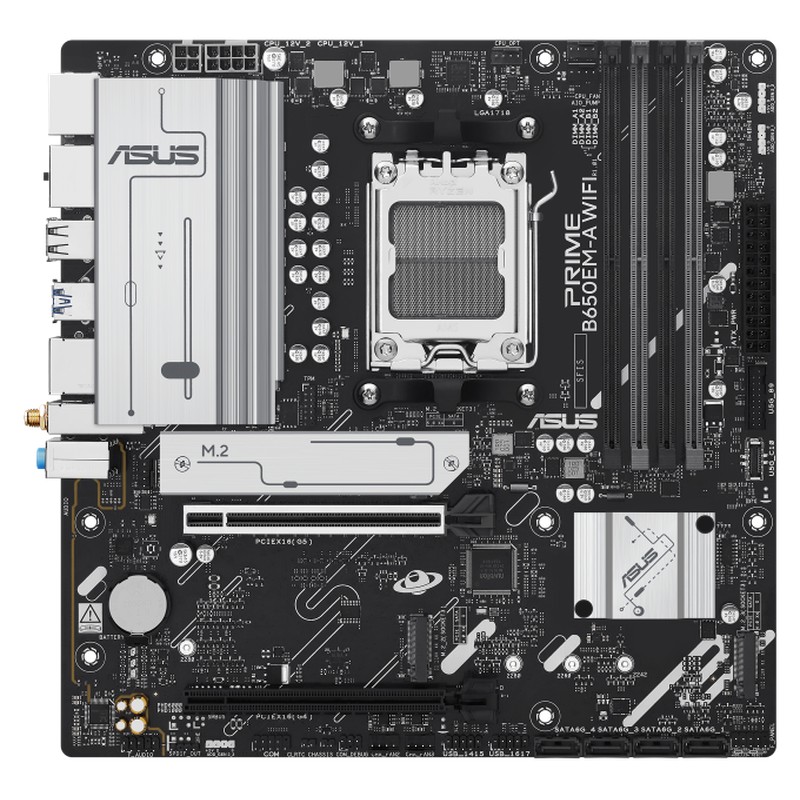

Asus PRIME B650EM A WIFI AMD Micro-ATX Motherboard

Asus PRIME B650EM-A WIFI - Ready for Advanced AI PC: Unleash AMD Ryzen power with ASUS PRIME B650EM-A WIFI. Enjoy ultrafast Wi-Fi 6, PCIe 5.0, DDR5, and robust cooling.

Features:
  • Ready for Advanced AI PC:Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
  • AM5 Socket for AMD Ryzen Desktop Processors
  • Ultrafast Connectivity:Wi-Fi 6, PCIe 5.0 x16 slot, PCIe 5.0 M.2 slot, Realtek 2.5Gb Ethernet, rear USB 10Gbps Type-A ports, front USB 5Gbps Type-C support
  • Comprehensive Cooling:VRM and M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 2+
  • Unmatched Personalization:Three Addressable RGB Gen 2 headers, all configurable with ASUS-exclusive Aura Sync RGB lighting
Specifications:
  • Model :PRIME B650EM-A WIFI
  • CPU :AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*
    * Refer to Official Asus Website for CPU support list.
  • Chipset :AMD B650 Chipset
  • Memory :4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*
    Dual channel memory architecture
    Supports AMD Extended Profiles for Overclocking (EXPO)
    ASUS Enhanced Memory Profile (AEMP)
    * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit Official Asus Website . Adjustments will be made based on the specifications of mass-produced memory products available on the market.
    * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
  • Graphics :2 x DisplayPort**
    1 x HDMI port***
    * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
    ** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
    *** Supports 4K@60Hz as specified in HDMI 2.1.
  • Expansion Slots :AMD Ryzen 9000 & 7000 Series Desktop Processors*
    1 x PCIe 5.0 x16 slot (supports x16 mode)
    AMD Ryzen 8000 Series Desktop Processors
    1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
    AMD B650 Chipset
    1 x PCIe 4.0 x16 slot (supports x1 mode)
    * Please check the PCIe bifurcation table on the support site .
    ** Specifications vary by CPU types.
    - To ensure compatibility of the device installed, please refer to Official Asus Website for the list of supported peripherals.
  • Storage :Total Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
    AMD Ryzen 9000 & 7000 Series Desktop Processors
    M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
    M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
    AMD Ryzen 8000 Series Desktop Processors
    M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)*
    M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)*
    AMD B650 Chipset
    M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    4 x SATA 6Gb/s ports
    * Specifications vary by CPU types.
  • RAID Support :AMD RAIDXpert2 Technology
    Ryzen 9000 Series Processors: RAID 0/1/5/10
    Ryzen 8000 Series Processors: RAID 0/1
    Ryzen 7000 Series Processors: RAID 0/1/10
  • Ethernet :1 x Realtek 2.5Gb Ethernet
    ASUS LANGuard
  • Wireless & Bluetooth :Wi-Fi 6
    Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
    Supports 2.4/5GHz frequency band
    Bluetooth v5.4*
    *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
  • USB :Rear USB (Total 8 ports)
    2 x USB 10Gbps ports (2 x Type-A)
    2 x USB 5Gbps ports (2 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    Front USB (Total 7 ports)
    1 x USB 5Gbps connector (supports USB Type-C)
    1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    * USB Type-C power delivery output: max. 5V/3A
  • Audio :Realtek 7.1 Surround Sound High Definition Audio CODEC*
    - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - Supports up to 24-Bit/192 kHz playback
    Audio Features
    - Audio Shielding
    - Premium audio capacitors
    - Dedicated audio PCB layers
    * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

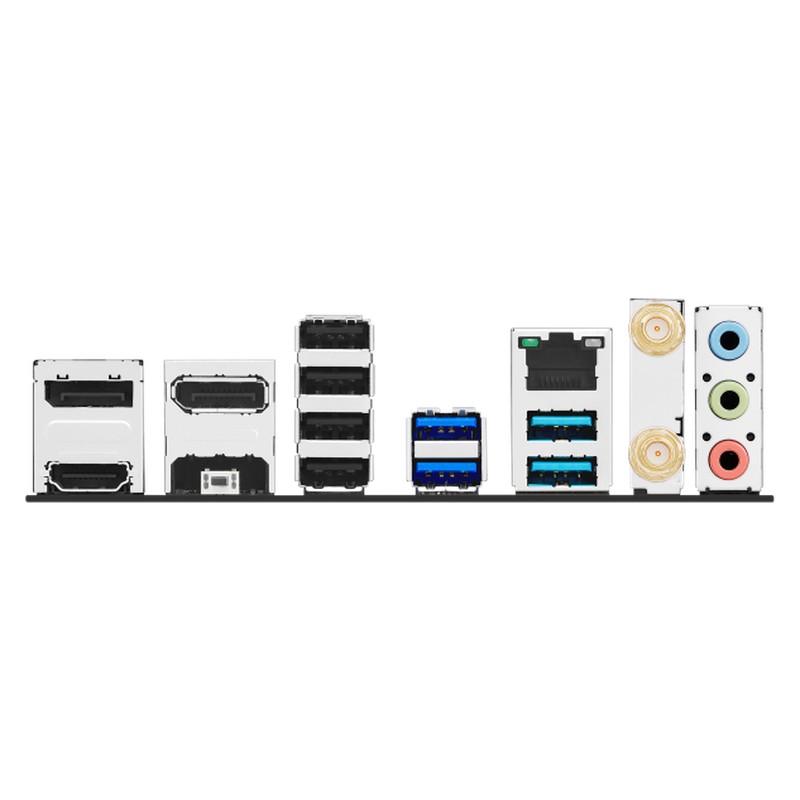

  • Back Panel I/O Ports :2 x USB 10Gbps ports (2 x Type-A)
    2 x USB 5Gbps ports (2 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    2 x DisplayPort
    1 x HDMI port
    1 x Wi-Fi module
    1 x Realtek 2.5Gb Ethernet port
    3 x Audio jacks
    1 x BIOS FlashBack button
  • Internal I/O Connectors :Fan and Cooling Related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    1 x 4-pin AIO Pump header
    3 x 4-pin Chassis Fan headers
    Power Related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V CPU Power connector
    1 x 4-pin +12V CPU Power connector
    Storage Related
    3 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    1 x USB 5Gbps connector (supports USB Type-C )
    1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    Miscellaneous
    3 x Addressable RGB Gen 2 headers
    1 x Clear CMOS header
    1 x Chassis Intrusion header
    1 x COM Port header
    1 x Front Panel Audio header (F_AUDIO)
    1 x S/PDIF Out header
    1 x SPI TPM header (14-1 pin)
    1 x 10-1 pin Front Panel System header
  • Special Features :ASUS 5X PROTECTION III
    - DIGI+ VRM
    - LANGuard
    - Overvoltage protection
    - SafeSlot
    - Stainless-steel back I/O
    ASUS Q-Design
    - Q-DIMM
    - Q-LED Core
    - Q-Slot
    ASUS Thermal Solution
    - M.2 heatsink
    - VRM heatsink design
    ASUS EZ DIY
    - BIOS FlashBack button
    - BIOS FlashBack LED
    Aura Sync
    - Addressable RGB Gen 2 headers
  • Software Features :ASUS Exclusive Software
    Armoury Crate
    - Aura Creator
    - Aura Sync
    - Fan Xpert 2+
    - Two-Way AI Noise Cancelation
    AI Suite 3
    - TurboV EVO
    - DIGI+ VRM
    - PC Cleaner
    ASUS DriverHub
    ASUS CPU-Z
    Adobe Creative Cloud (Free Trial)
    Norton 360 Deluxe (60 Days Free Trial)
    WinRAR (40 Days Free Trial)
    UEFI BIOS
    ASUS EZ DIY
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    * For more software features, please visit the asus support site or refer to Official Asus Website for additional information.
  • BIOS :256 Mb Flash ROM, UEFI AMI BIOS
  • Manageability :WOL by PME, PXE
  • Accessories :Cables
    2 x SATA 6Gb/s cables
    Miscellaneous
    1 x ASUS Wi-Fi moving antenna

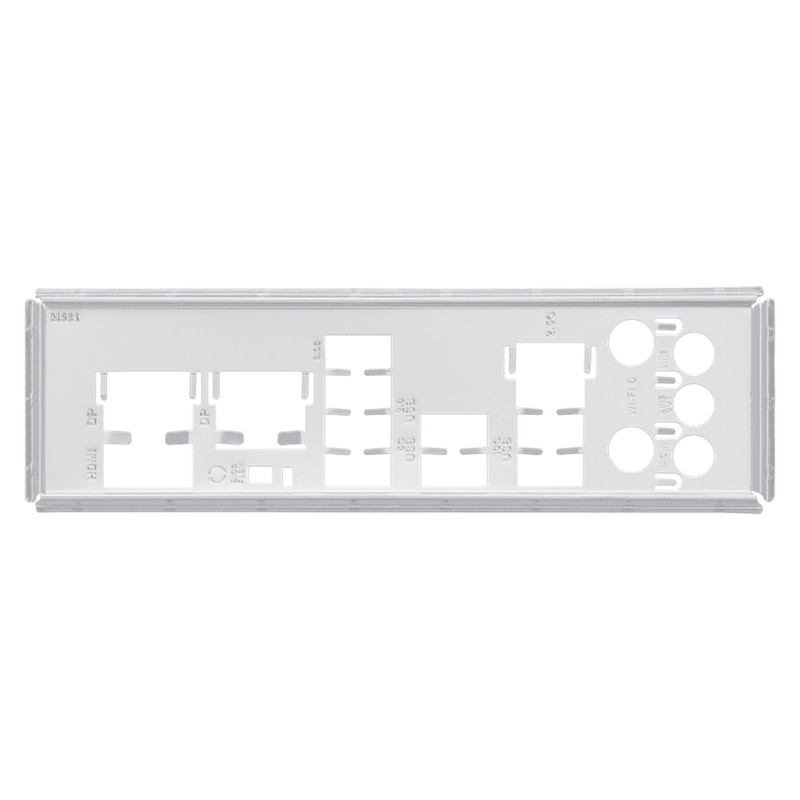

    1 x I/O Shield
    1 x M.2 rubber package
    1 x Screw package for M.2 SSD
    Documentation
    1 x Quick start guide
  • Operating System :Windows 11, Windows 10 64-bit
  • Form Factor :mATX Form Factor
    9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

GTIN: 906425128643
