[PRIME B850-PLUS WIFI-CSM] Asus PRIME B850 PLUS WIFI CSM AMD ATX Motherboard

Image 1
Image 2
Image 3
Image 4
Image 5
Limited Stock
$373.56

Collect 373 Everyday Rewards points

Log in to MyDeal to link your card
$14.95 Australia-wide (per-item)
Sold & shipped by Best Deal Computers
Secure ways to pay at checkout

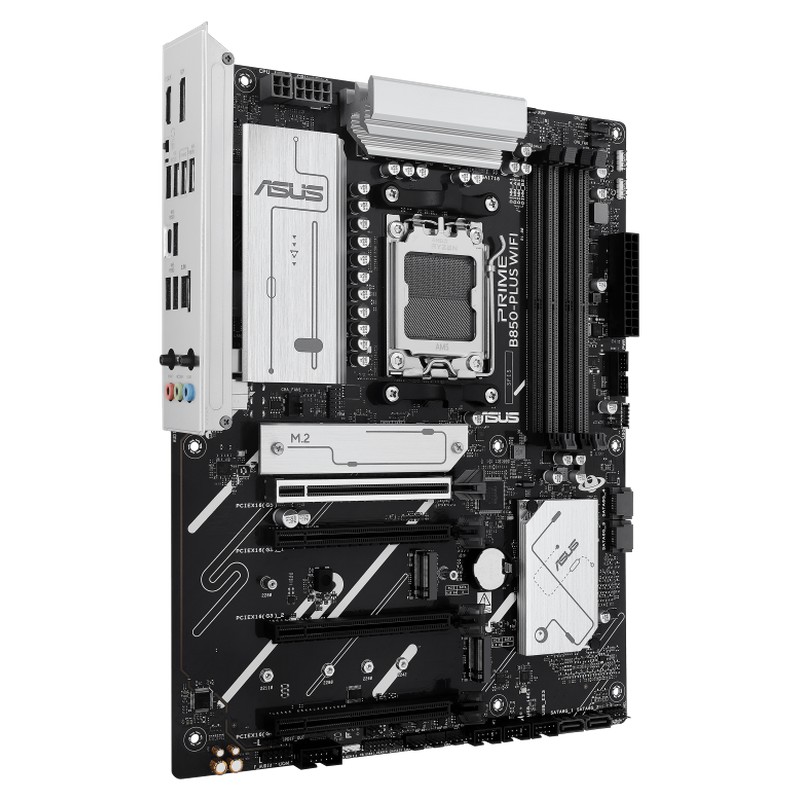

Asus PRIME B850 PLUS WIFI CSM AMD ATX Motherboard

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 9000 series processors. The PRIME B850-PLUS WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It's designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Features:
  • 8+2+1:phase digital power design
  • AEMP:for enhanced DDR5 performance
  • 2.5Gb Ethernet:for faster data transfers
  • WiFi 6E:for stable WiFi connection and lower latency
  • USB 10Gbps Type-C:for rapid data transmission
  • PCIe 5.0 slots:for graphics card and storage
  • EZ PC DIY:for easier build customization
  • Pre-mounted I/O shield:for safeguarding ports and enhancing aesthetics
  • Aura Sync:for full RGB lighting control
Specifications:
  • Model :PRIME B850-PLUS WIFI-CSM
  • CPU :AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*
    * Refer to Official Asus Website for CPU support list.
  • Chipset :AMD B850 Chipset
  • Memory :4 x DIMM slots, max. 256GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*
    Dual channel memory architecture
    Supports AMD Extended Profiles for Overclocking (EXPO)
    ASUS Enhanced Memory Profile (AEMP)
    * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit Official Asus Website . Adjustments will be made based on the specifications of mass-produced memory products available on the market.
    * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
  • Graphics :1 x DisplayPort**
    1 x HDMI port***
    * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
    ** Supports max. 8K@30Hz as specified in DisplayPort 1.4.
    *** Supports 4K@60Hz as specified in HDMI 2.1.
  • Expansion Slots :AMD Ryzen 9000 & 7000 Series Desktop Processors*
    1 x PCIe 5.0 x16 slot (supports x16 mode)
    AMD Ryzen 8000 Series Desktop Processors
    1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
    AMD B850 Chipset
    1 x PCIe 4.0 x16 slot (support x4 mode)
    2 x PCIe 3.0 x16 slots (support x1 mode)***
    * Please check the PCIe bifurcation table on the support site .
    ** Specifications vary by CPU types.
    *** The PCIEX16(G3)_1/2 share bandwidth with SATA6G_1/2. The SATA6G_1/2 will be disabled when The PCIEX16(G3)_1 or PCIEX16(G3)_2 runs.
    - To ensure compatibility of the device installed, please refer to Official Asus Website for the list of supported
  • Storage :Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
    AMD Ryzen 9000 & 7000 Series Desktop Processors
    M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
    M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
    AMD Ryzen 8000 Series Desktop Processors
    M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
    M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)*
    AMD B850 Chipset
    M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x2 mode)
    4 x SATA 6Gb/s ports
    * Specifications vary by CPU types.
    AMD RAIDXpert2 Technology
    Ryzen 9000 Series Processors: RAID 0/1/5/10
    Ryzen 8000 Series Processors: RAID 0/1
    Ryzen 7000 Series Processors: RAID 0/1/10
  • Ethernet :1 x Realtek 2.5Gb Ethernet
    ASUS LANGuard
  • Wireless & Bluetooth :Wi-Fi 6E
    2x2 Wi-Fi 6E (802.11ax)
    Supports 2.4/5/6GHz frequency band*
    Bluetooth v5.3**
    * WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later.
    ** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
  • USB :Rear USB (Total 8 ports)
    4 x USB 10Gbps port(s) (3 x Type-A + 1 x USB Type-C)
    2 x USB 5Gbps ports (2 x Type-A)
    2 x USB 2.0 ports (2 x Type-A)
    Front USB (Total 9 ports)
    1 x USB 5Gbps connector (supports USB Type-C)
    1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
    3 x USB 2.0 headers support 6 additional USB 2.0 ports
    * USB Type-C power delivery output: max. 5V/3A
  • Audio :Realtek 7.1 Surround Sound High Definition Audio CODEC*
    - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - Supports up to 24-Bit/192 kHz playback
    Audio Features
    - Audio Shielding
    - Premium audio capacitors
    - Dedicated audio PCB layers
    * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

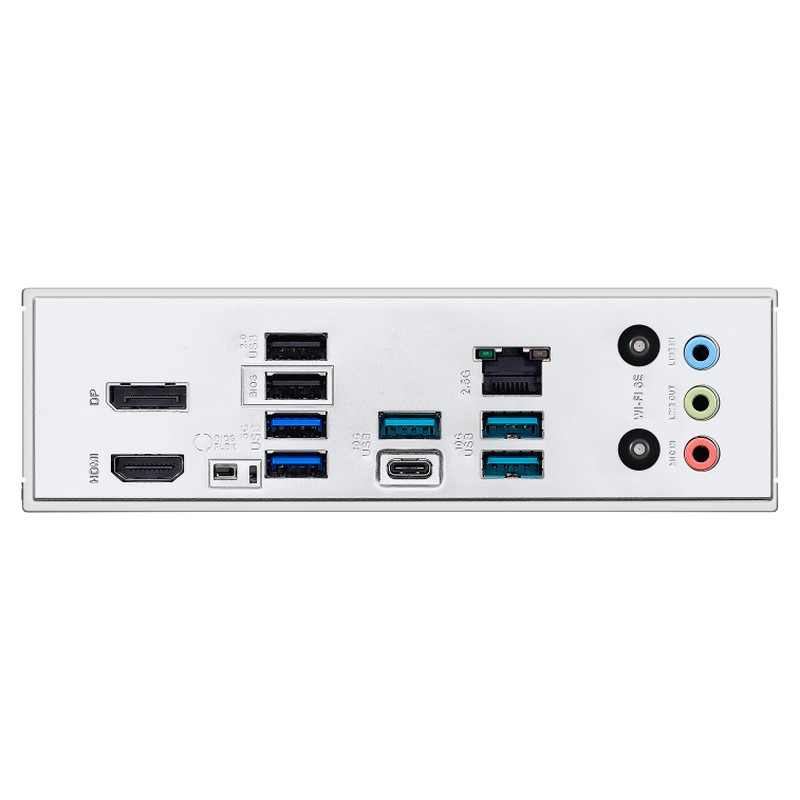

  • Back Panel I/O Ports :1 x USB 10Gbps port (1 x USB Type-C)
    3 x USB 10Gbps ports (3 x Type-A)
    2 x USB 5Gbps ports (2 x Type-A)
    2 x USB 2.0 ports (2 x Type-A)
    1 x DisplayPort
    1 x HDMI port
    1 x Wi-Fi module
    1 x Realtek 2.5Gb Ethernet port
    3 x Audio jacks
    1 x BIOS FlashBack button
  • Internal I/O Connectors :Fan and Cooling Related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    1 x 4-pin AIO Pump header
    4 x 4-pin Chassis Fan headers
    Power Related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V CPU Power connectors
    1 x 4-pin +12V CPU Power connectors
    Storage Related
    3 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    1 x USB 5Gbps connector (supports USB Type-C )
    1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
    3 x USB 2.0 headers support 6 additional USB 2.0 ports
    Miscellaneous
    3 x Addressable RGB Gen 2 headers
    1 x Clear CMOS header
    1 x Chassis Intrusion header
    1 x COM Port header
    1 x Front Panel Audio header (F_AUDIO)
    1 x S/PDIF Out header
    1 x SPI TPM header (14-1 pin)
    1 x 10-1 pin System Panel header
    1 x Thunderbolt (USB4) header
  • Special Features :ASUS 5X PROTECTION III
    - DIGI+ VRM
    - LANGuard
    - Overvoltage protection
    - SafeSlot
    - Stainless-steel back I/O
    ASUS Q-Design
    - Q-Antenna
    - Q-Dashboard
    - Q-DIMM
    - Q-LED Core
    - Q-Slot
    ASUS Thermal Solution
    - Flexible M.2 heatsink
    - VRM heatsink design
    ASUS EZ DIY
    - BIOS FlashBack button
    - BIOS FlashBack LED
    - Pre-mounted I/O shield
    Aura Sync
    - Addressable RGB Gen 2 headers
  • Software Features :ASUS Exclusive Software
    Armoury Crate
    - Aura Creator
    - Aura Sync
    - Fan Xpert 2+
    - Power Saving
    ASUS AI Advisor
    ASUS Driver Hub
    ASUS GlideX
    TurboV Core
    ASUS CPU-Z
    Norton 360 Deluxe (60 Days Free Trial)
    WinRAR (40 Days Free Trial)
    UEFI BIOS
    ASUS EZ DIY
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    - ASUS MyHotkey
  • Remote Management Features :IT Management software supported
    - ASUS Control Center Express(ACCE)
  • BIOS :256 Mb Flash ROM, UEFI AMI BIOS
  • Manageability :WOL by PME, PXE
  • Accessories :Cables
    2 x SATA 6Gb/s cables
    Miscellaneous
    1 x ASUS WiFi Q-Antenna
    1 x M.2 rubber packages
    3 x Screw packages for M.2 SSD
    Documentation
    1 x ACC Express Activation Key Card
    1 x Quick start guide
  • Operating System :Windows 11, Windows 10 64-bit
  • Form Factor :ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

GTIN: 906425128674
