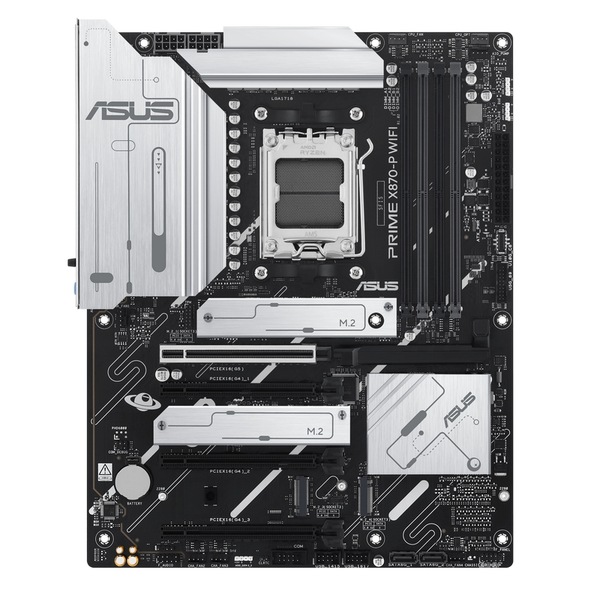

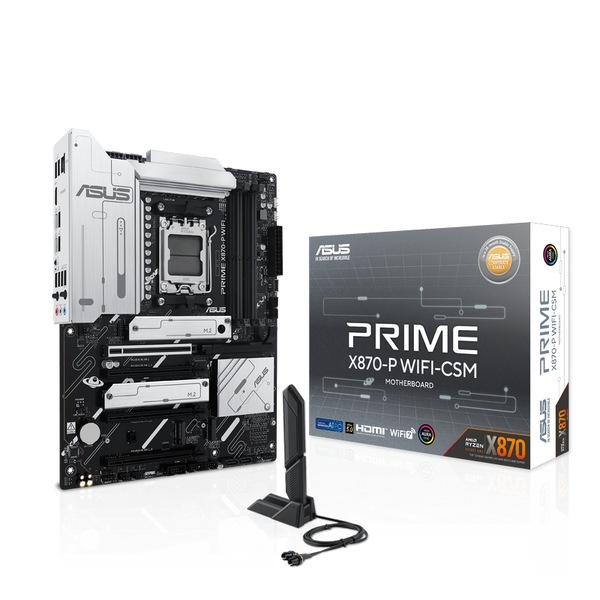

[PRIME X870-P WIFI-CSM] Motherboard, for AMD CPU, DDR5, AM5, ATX MB

Image 1
Image 2
Image 3
Limited Stock
$548.95

Collect 548 Everyday Rewards points

Log in to MyDeal to link your card
$14.95 Australia-wide (per-item)

Dispatch in 24-48 hours

Sold & shipped by Best Deal Computers
Secure ways to pay at checkout
Pay in 4 interest-free payments of $137.24 with PayPal

Popular Products

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME X870-P WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Features:
  • Powerful design: 14(80A) + 2(80A) + 1(80A) power stages with optimised cooling for maximum stability and performance
  • Intelligent AI solutions: AI Networking II and AI Cooling II for improved network capacity and optimized cooling
  • Versatile connectivity: PCIe 5.0 for graphics cards, USB 40Gbps Type-C and built-in WiFi 7 for fastest data transfers
  • Advanced storage options: Four M.2 slots, including a PCIe 5.0 slot for ultra-fast data rates of up to 128Gbps
  • DIY friendly design: easy to assemble with pre-installed I/O bezel, Q release and BIOS FlashBack for hassle-free updates
Specifications:
  • Model :PRIME X870-P WIFI-CSM
  • News & Updates :Please visit Asus website to check and download the latest updates.
  • CPU :AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
    * Refer toAsus official site/support/download-center/for CPU support list.
  • Chipset :AMD X870 Chipset
  • Memory :4 x DIMM slots, max. 192GB, DDR5
    Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors
    ECC and Non-ECC, Un-buffered DIMM*
    Dual channel memory architecture
    Supports AMD Extended Profiles for Overclocking (EXPO™)
    ASUS Enhanced Memory Profile (AEMP)
    * Adjustments will be made based on the specifications of mass-produced memory products available on the market.
    * Supported memory types, data rate (speed), and number of DRAM modules vary dep
    ending on the CPU and memory configuration, for more information please refer to
    CPU/Memory Support list under the Support tab of product information site or visitAsus official site/support/download-center/.* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
  • Graphics :1 x HDMI™ port**
    2 x USB4® (40Gbps) ports support USB Type-C® display outputs***
    * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
    ** Supports 4K@60Hz as specified in HDMI 2.1.
    *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.
    *** VGA resolution support depends on processors' or graphic cards' resolution.
  • Expansion Slots :AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
    1 x PCIe 5.0 x16 slot (supports x16 mode)
    AMD Ryzen™ 8000 Series Desktop Processors
    1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
    AMD X870 Chipset
    3 x PCIe 4.0 x16 slots (support x1 mode)***
    * Please check the PCIe bifurcation table on the support site (https:// Asus official site/support/FAQ/1037507/).
    ** Specifications vary by CPU types.
    *** PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs.
    *** PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs.
    - To ensure compatibility of the device installed, please refer tohttps:// A
    sus official site/support/download-center/
    for the list of supported peripherals.
  • Storage :Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
    AMD Ryzen™ 9000 & 7000 Series Desktop Processors
    M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
    AMD Ryzen™ 8000 Series Desktop Processors
    M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
    AMD X870 Chipset
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)*
    M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)**
    M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)***
    2 x SATA 6Gb/s ports***
    * PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs.
    ** PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs.
    *** M.2_4 shares bandwidth with SATA6G_1 and SATA6G_2. M.2_4 will be disabled when SATA6G_1 or SATA6G_2 runs.
    AMD RAIDXpert2 Technology
    Ryzen™ 9000 Series Processors: RAID 0/1/5/10
    Ryzen™ 8000 Series Processors: RAID 0/1
    Ryzen™ 7000 Series Processors: RAID 0/1/10
  • Ethernet :1 x Realtek 2.5Gb Ethernet
    ASUS LANGuard
  • Wireless & Bluetooth :Wi-Fi 7*
    2x2 Wi-Fi 7 (802.11be)
    Supports 2.4/5/6GHz frequency band**
    Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
    Bluetooth® v5.4***
    *Wi-Fi features may vary depending on the operating system
    For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
    For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
    ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
    *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
  • USB :Rear USB (Total 10 ports)
    2 x USB4® (40Gbps) ports (2 x USB Type-C®)
    1 x USB 10Gbps port (1 x Type-A)
    3 x USB 5Gbps ports (3 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    Front USB (Total 7 ports)
    1 x USB 10Gbps connector (supports USB Type-C®)
    1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    * USB Type-C® power delivery output: max. 5V/3A
  • Audio :Realtek 7.1 Surround Sound High Definition Audio CODEC*
    - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - Supports up to 24-Bit/192 kHz playback
    Audio Features
    - Audio Shielding
    - Premium audio capacitors
    - Dedicated audio PCB layers
    * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

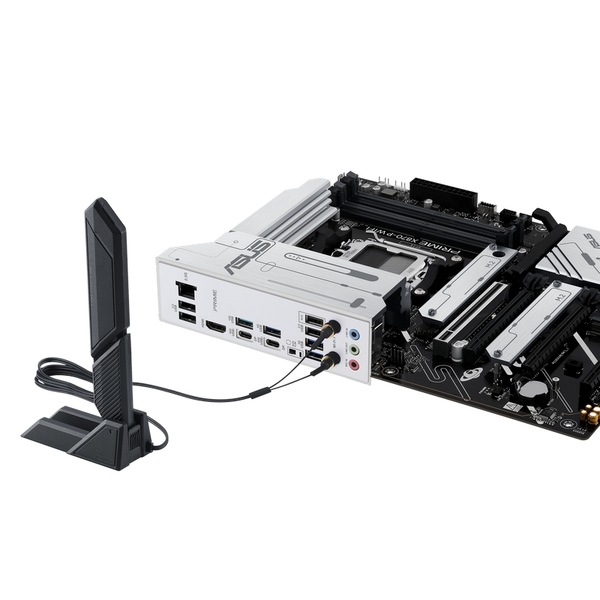

  • Back Panel I/O Ports :2 x USB4® (40Gbps) ports (2 x USB Type-C®)
    1 x USB 10Gbps port (1 x Type-A)
    3 x USB 5Gbps ports (3 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    1 x HDMI™ port
    1 x Wi-Fi module
    1 x Realtek 2.5Gb Ethernet port
    3 x Audio jacks
    1 x BIOS FlashBack™ button
  • Internal I/O Connectors :Fan and Cooling Related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    1 x 4-pin AIO Pump header
    4 x 4-pin Chassis Fan headers
    Power Related
    1 x 24-pin Main Power connector
    2 x 8-pin +12V CPU Power connectors
    Storage Related
    4 x M.2 slots (Key M)
    2 x SATA 6Gb/s ports
    USB
    1 x USB 10Gbps connector (supports USB Type-C®)
    1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    Miscellaneous
    3 x Addressable Gen 2 headers
    1 x Clear CMOS header
    1 x COM Port header
    1 x Front Panel Audio header (F_AUDIO)
    1 x S/PDIF Out header
    1 x SPI TPM header (14-1 pin)
    1 x 10-1 pin System Panel header
  • Special Features :ASUS 5X PROTECTION III
    - DIGI+ VRM (- Digital power design with DrMOS)
    - LANGuard
    - Overvoltage protection
    - SafeSlot
    - Stainless-steel back I/O
    ASUS Q-Design
    - M.2 Q-Latch
    - PCIe Slot Q-Release
    - Q-Antenna
    - Q-Dashboard
    - Q-DIMM
    - Q-LED Core
    - Q-Slot
    ASUS Thermal Solution
    - Flexible M.2 heatsink
    - VRM heatsink design
    ASUS EZ DIY
    - BIOS FlashBack™ button
    - BIOS FlashBack™ LED
    - ProCool
    - Pre-mounted I/O shield
    - SafeSlot
    Aura Sync
    - Addressable Gen 2 headers
  • Software Features :ASUS Exclusive Software
    Armoury Crate
    - Aura Creator
    - Aura Sync
    - Fan Xpert 4 (with AI Cooling II)
    - Power Saving
    ASUS DriverHub
    ASUS GlideX
    TurboV Core
    ASUS CPU-Z
    Norton 360 Deluxe (60 Days Free Trial)
    WinRAR (40 Days Free Trial)
    UEFI BIOS
    ASUS EZ DIY
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    - ASUS MyHotkey
  • Remote Management Features :IT Management software supported
    - ASUS Control Center Express(ACCE)
  • BIOS :256 Mb Flash ROM, UEFI AMI BIOS
  • Manageability :WOL by PME, PXE
  • Accessories :Cables
    2 x SATA 6Gb/s cables
    Miscellaneous
    1 x ASUS WiFi Q-Antenna
    1 x M.2 rubber package
    2 x Screw packages for M.2 SSD
    Documentation
    1 x ACC Express Activation Key Card
    1 x Quick start guide
  • Operating System :Windows 11
  • Form Factor :ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

SKU: WSC-965639539478
