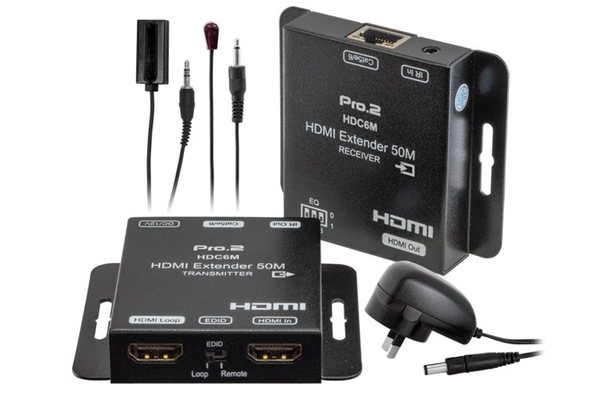

Pro.2 HDMI Cable Extender System Over CAT6
  • Extends HDMI by up to 50 metres
  • Requires a single CAT6/CAT5e network cable
  • Also transmits infrared remote signals
  • HDMI loop-out/splitter on the source end
  • Supports 1080P 60HZ@YUV 4:4:4
  • Audio sampling rates up to 48KHz, supports 7.1 channels
  • An update to the popular HDC6L model
  • Power over cable
  • Compatible with Foxtel iQ2, iQ3, and iQ4
  • Supports 2D and 3D video
  • Supports 24bit Deep Colour
  • Supports PCM, Dolby True-HD, DTS-HD master audio
  • Easy to mount behind your TV
  • HDCP compliant
  • EDID control, copy local or remote EDID settings with a switch
  • Distance switch, DIP switch to set network cable distance up to 50m
  • Follows IEEE-568B cable termination standards



  • Model Number - HDC6M
  • Transmission Distance - 1080p up to 50m
  • Output Video Signal - HDMI
  • Resolution outputs - 1080p/1080i/720p/576p/480p
  • Audio format supported - DTS-HD Master Audio, Dolby True HD, multi-channel 7.1, stereo etc
  • Connectors on Transmitter - HDMI Receptacle x 2 (1 x HDMI input,1 x HDMI loop output), Power DC Receptacle x 1, IR Receptacle x 1 (for IR TX )
  • Connectors on Receiver - HDMI Receptacle x 1, IR Receptacle x 1(for RX cable)
  • Operating Temperature Range - -5 to +40°C(+23 to +104°F)
  • Operating Humidity Range - 5 to 90%RH (No Condensation)
  • Power supply - DC 12V1A Power supply
  • Power consumption - 2W (MAX)
  • Dimension (L×W×H) - TX: L79.3xW68xH16.5mm, RX: L79.3xW68xH16.5mm
  • Net Weight - TX: 120g, RX: 115g

GTIN: 9328202032553
