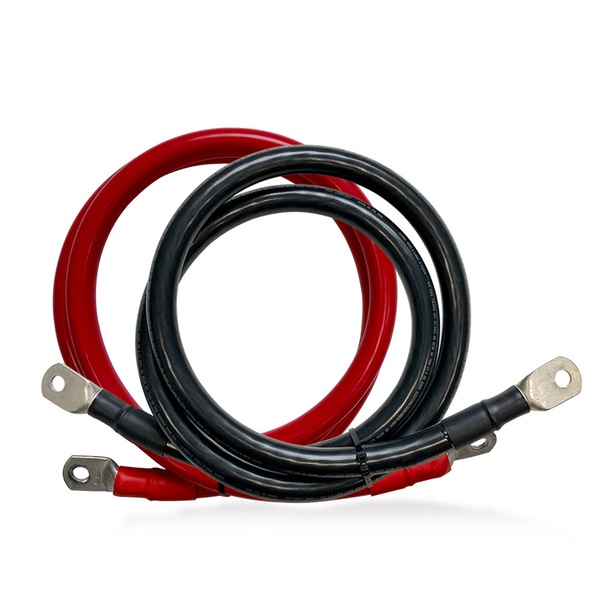

Our quality copper battery cables are available with pre-attached cable lugs with 3/8" diameter mounting holes. Jacket and insulation are resistant to oil, gas, salt water, battery acid, heat, abrasion, and sunlight.

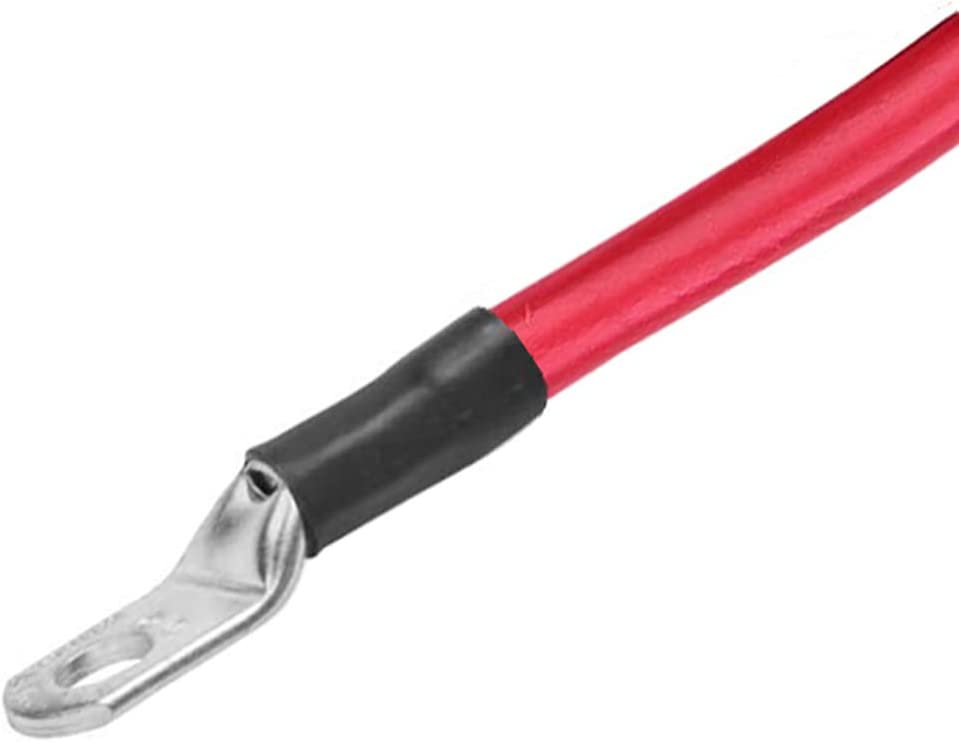

Polyolefin heat shrink tubing is applied at the cable lug attachment point to form a protective seal, good for prevent corrosion and heat insulation.
Those cable excellent for battery bank wiring, inverter cables, grounding cables, RV car marine boat wiring applications, golf cart wiring etc.
Our cables are made of T2 low-resistance copper, strong joints made with special hydraulic tools and the section is tin-plated, which has a long life and extremely low resistance to reduce power consumption and also avoiding the risk of fire caused by poor connections.

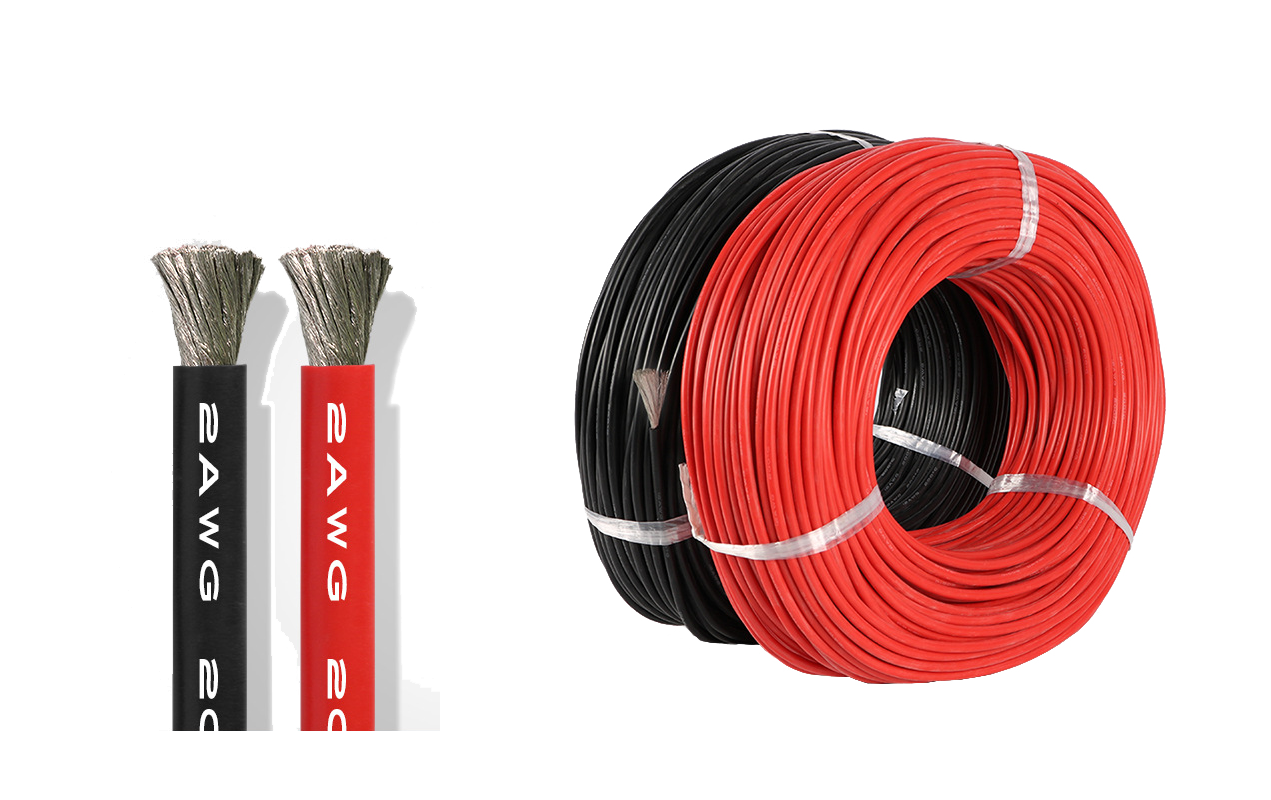

Durable Silicone Insulation Jacket and Adhesive Lined Heat Shrink Tubing - Anti-ageing, Waterproof, Resistant to UV and Chemicals, Heat Resistant up to 200°C(392°F)
Specifications:
Copper size: 1 AWG,50mm
Voltage rating: 600 volts
Rating Current: 300 Amp, maximum is 630A.
Operational temp. range: -60°C to +200°C
Hardness: HV:120-70
Tin-plated copper ring terminal
Gauge AWG |
Stranding (mm) |
Insulation (mm) |
Width of Conductor (mm) |
Area of Conductor mm2 |
Rating Amps |
Resistance ��Ω/KM) |
Kg/m |
1 |
10000/0.08TS | 2.4 | 14 | 50 | 300 | 0.63 | 0.560 |
2 |
6700/0.08TS |
2.4 |
13 |
33.5 |
200 |
0.89 |
0.420 |
Certification:
Standard: DIN EN 61373 class 1B vibration-tested
Marching accuracy class: High
Pullout test Conform to UL486 standard.
Contact resistance�� Conform to UL486 standard.
Flammability rating of material�� Conform to UL486 standard.
Certification: ISO9001, SGS, CE, ROHS
Estimated Delivery Time Frame: 2-5 business days
