Ever wondered how much power your solar panel was producing? It's often difficult to measure this without special equipment or expert knowledge - until now.

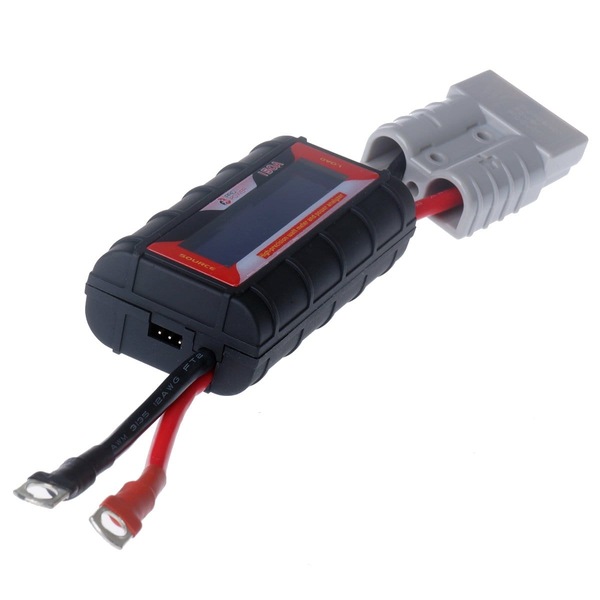

Enter the Solar Watt Meter, a simple device that is easily installed and provides you with all the key ratings of your solar panels in realtime. This is a perfect companion to our range of portable solar panels.
Installation is easy - the watt meter has two anderson plugs, and is installed in-line between your solar regulator and batteries/load. Simply connect the solar panel regulator's output to the "source" side of the watt meter, and connect the battery/load cabling to the "load" side. Once there is power flowing through, the device will initialise and show you a full range of ratings including:
The Solar Watt Meter only requires a a tiny 7mA draw to operate, so there will be no significant reduction in your power production during usage.
| Pro Power Solar Watt Meter Specifications | |
|---|---|
| Safe Operating Voltage | 0V - 60V |
| Safe Operating Current | 0 - 100A Intermitten 50A Continuous Note: this assumed the device's writes are in free air, and attached to connections at or below temperature of 35< sup="">C with adequate air flow. 100A operation time depends on ambient and wiring temperatures.<> |
| Nominal Operating Conditions | 0< sup="">C - 50< sup="">C ambient air temperature, non condensing humidity Note: Max temperature must be reduced at max current rating.<><> |
| Measurement Update Period | 400 mS |
| Data Queue Sequence Time | 2 seconds |
| In Circuit Resistance | 0.001 Ohms |
| Operation Current | 7mA |
| Auxiliary Power Voltage | 4.0V - 60V eg. from a receiver battery |
| Dimensions | Approx. 200mm L x 50mm W x 20mm D (including anderson plugs) Approx. 84mmL x 50mmW x20mmD (only watt meter unit) |
| Weight | Approx 150g |
| Display Screen | 16 Character x 2 row STN LCD |
| Solar Watt Meter Measurement Parameters | |
|---|---|
| Voltage | 0 - 60V, 0.01V Resolution Note: 0V min. w/auxiliary power, eg. a receiver battery. Otherwise, 4.0V |
| Current | 0 - 100A peak, 0.01A Resolution Note: 50A continuous |
| Power | 0 - 6554W, 0.1W Resolution |
| Charge | 0 - 65AH, 0.001Ah |
| Energy | 0 - 6554Wh, 0.1Wh Resolution |
