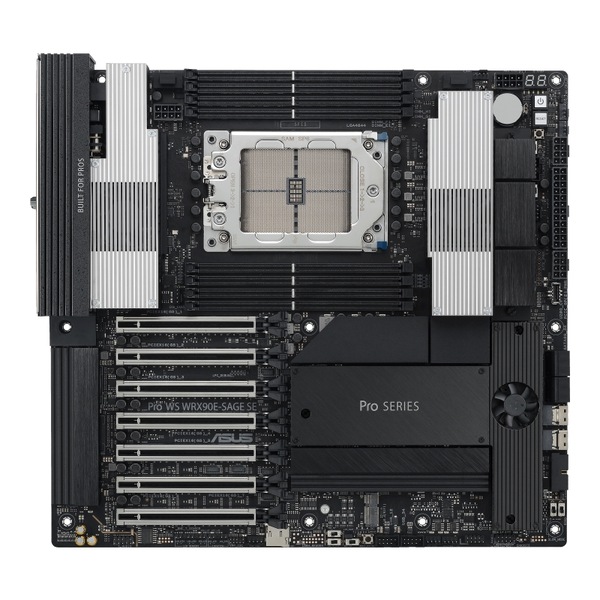

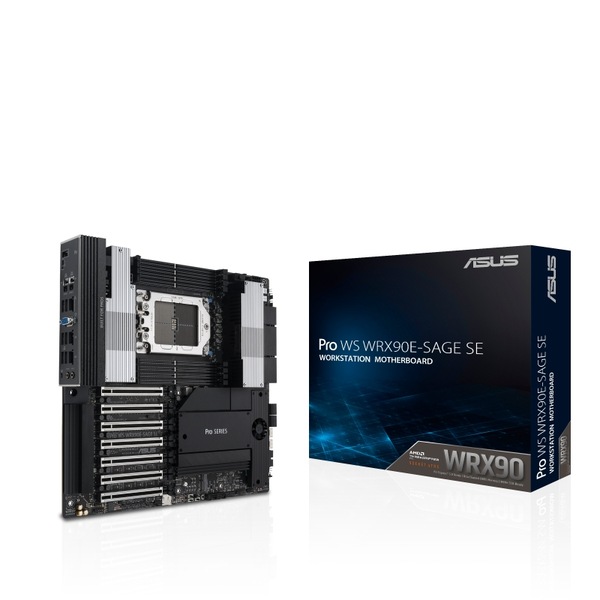

[PRO WS WRX90E-SAGE SE] AMD WRX90 ATX DDR5 Motherboard

Image 1
Image 2
Image 3
$2985.5

Sold Out

Notify me when this product is back in stock

To understand how we handle your personal information, see our Privacy Collection Notice and Privacy Policy.

Shop More Products
Sold & shipped by Best Deal Computers

AMD sTR5 EEB workstation motherboard, 7 PCIe 5.0 x16 slots, multi-GPU support, robust 32+3+3+3 power-stage design, CPU and memory overclocking ready, 4 PCIe 5.0 M.2 slots, dual 10 Gb LAN, PCIe Q-Release Slim

Features:
  • AMD sTR5 socket supports up to 96-core CPUs:Ready for AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors.
  • Ultrafast connectivity:Seven PCIe® 5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, two rear USB4® 40Gbps Type-C® and SlimSAS NVMe support.
  • CPU and memory overclocking:Support for up to 2 TB ECC R-DIMM DDR5 memory modules (1DPC).
  • Robust power and thermal design:32+3+3+3 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks with active fans, and M.2 thermal pad.
  • PCIe Q-release Slim:Remove the graphics card by directly pulling it up, instead of pressing a PCIe latch.
  • Server-grade IPMI remote management and onboard BMC:Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management.
  • Trusted stability:Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.
Specifications:
  • Model :Pro WS WRX90E-SAGE SE
  • CPU :AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 7000 WX-Series*
    *Refer toAsus official sitefor CPU support list.
  • Chipset :AMD WRX90 Chipset
  • Memory :8 x DIMM slots, DDR5, ECC Registered Memory*
    8 Channel Memory Architecture
    *Supported memory types, data rate (speed), and number of DRAM modules vary depe
    nding on the CPU and memory configuration, for more information please refer to
    CPU/Memory Support list under the Support tab of product information site or visithttps:// Asus official site/support/.
  • Expansion Slots :AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors*
    6 x PCIe 5.0 x16 slots
    1 x PCIe 5.0 x16 slot (x8 mode)
    *Please check the PCIe bifurcation table on the support site (https:// Asus official site/support/FAQ/1037507/)
    **To ensure compatibility of the device installed, please refer tohttps:// Asus official site/support/for the list of supported peripherals.
  • Storage :Total supports 4 x M.2 slots, 2 x SlimSAS ports and 4 x SATA 6Gb/s ports*
    AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors*

    M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
    M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
    M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
    M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
    AMD WRX90 Chipset
    2 x SlimSAS slots support PCIe 4.0 x4 mode NVMe device
    4 x SATA 6Gb/s ports
    * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.
  • Ethernet :1 x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600)
    1 x Intel® dual 10Gb Ethernet
    ASUS LANGuard
  • USB :Rear USB (Total 9 ports)
    2 x USB 40Gbps (USB4®) with ASMedia ASM4242 controller ports (2 x USB Type-C®)
    6 x USB 10Gbps ports (6 x Type-A)
    1 x USB 2.0 ports (2 x Type-A )
    Front USB (Total 7 ports)
    1 x USB 20Gbpsconnector (supports USB Type-C®)
    1 x USB 5Gbps header supports 2 additional USB 5G ports
    2 x USB 2.0 headers support additional 4 USB 2.0 ports
  • Audio :Realtek ALC1220P Surround Sound High Definition Audio CODEC*
    - Impedance sense for front and rear headphone outputs
    - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
    - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
    - Supports up to 32-Bit/192 kHz playback
    Audio Features
    - Premium audio capacitors
    - Dedicated audio PCB layers
    - Unique de-pop circuit
    *A chassis with an HD audio module in the front panel is required to support 5.1 Surround Sound audio output.
    * This motherboard will only support up to 5.1 Surround Sound due to the number of audio ports available on the motherboard.

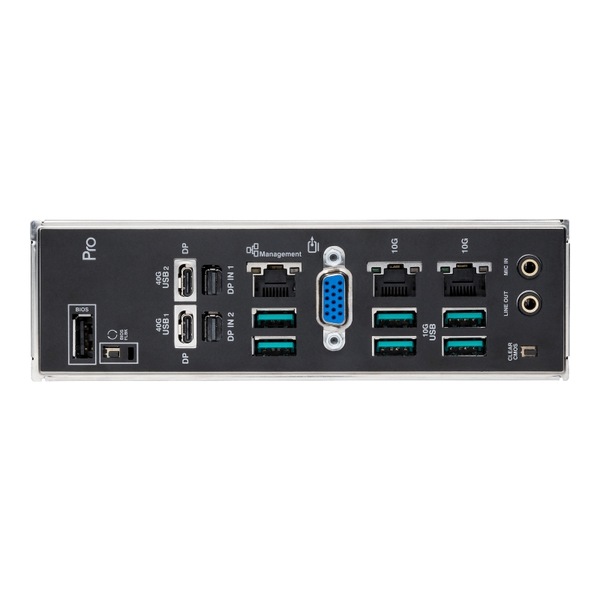

  • Back Panel I/O Ports :2 x USB 40Gbps (USB4®) with ASMedia ASM4242 controller ports (2 x USB Type-C®)
    6 x USB 10Gbps ports (6 x Type-A)
    1 x USB 2.0 port (2 x Type-A)
    1 x VGA port
    2 x mini DisplayPort IN
    1 x Intel® dual 10Gb Ethernet ports
    1 x Realtek 1Gb Ethernet port
    2 x Audio jacks
    1 x BIOS FlashBack™ button
    1 x Clear CMOS button
  • Internal I/O Connectors :Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    1 x W_PUMP+ header
    5 x 4-pin Chassis Fan headers
    2 x 4-pin VRM Fan header (with VRM FAN onboard)
    1 x 4-pin M.2 Fan header (with M.2 FAN onboard)
    Power related
    1 x 24-pin Main Power connectors
    2 x 8-pin +12V Power connectors
    2 x 8-pin PCIe to CPU power connectors
    2 x 8-pin PCIe Power connector
    Storage related
    4 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    2 x SlimSAS port
    USB
    1 x USB 20Gbps connector supports USB Type-C®
    1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
    2 x USB 2.0 headers support additional 4 USB 2.0 ports
    Miscellaneous
    1 x Chassis intrusion header
    1 x COM port header
    1 x FlexKey button
    1 x Front panel audio header (F_AUDIO)
    1 x LN2 mode jumper
    1 x M.2 slot (Key E)
    7 x ProbeIt measurement points
    1 x ReTry button
    1 x RSVD switch
    1 x Slow mode switch
    1 x Safe boot button
    1 x SPI TPM header (14-1 pin)
    1 x Start button
    1 x 10-1 pin system panel header
    1 x Thermal sensor header
  • Special Features :ASUS 5X PROTECTION III
    - DIGI+ VRM (- Digital power design with SPS)
    - ESD Guards
    - LANGuard
    - Overvoltage protection
    - SafeSlot
    - Stainless-steel back I/O
    ASUS Q-Design
    - M.2 Q-Latch
    - Q-Release Slim (with PCIe SafeSlot)
    - Q-Code
    - Q-Connector
    - Q-DIMM
    - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    - Q-Slot
    ASUS Thermal Solution
    - M.2 heatsink backplate and onboard thermal pads
    - M.2 heatsink
    - Steel backplate
    - VRM heatsink design with active fans
    ASUS EZ DIY
    - BIOS FlashBack™ button
    - BIOS FlashBack™ LED
    - Clear CMOS button
    - ProCool II
    - Pre-mounted I/O shield
    - SafeSlot
    - SafeDIMM
    Bespoke Motherboard Design & Business Focused Features
    - 24/7 Reliability
    - Overcurrent Protection
    BMC Related
    1 x BMC switch
    1 x BMC LAN fixed IP switch
    1 x IPMI switch
    1 x Message LED header
    1 x microSD card socket
    2 x LAN LED headers
    1 x Location LED header
    1 x Location button header
    1 x PSU_SMB header
    1 x SMART_PSU switch
    1 x VGA switch
    1 x VGA header (Dedicated Management for AST2600)
    1 x VPP_I2C header
  • Software Features :ASUS Exclusive Software
    Armoury Crate
    - Fan Xpert 4
    ASUS CPU-Z
    Adobe Creative Cloud (Free Trial)
    Norton 360 for Deluxe (60 Days Free Trial)
    WinRAR (40 Days Free Trial)
    UEFI BIOS
    ASUS EZ DIY
    - ASUS CrashFree BIOS 3
    - ASUSTeK. EzFlash Utility
    FlexKey
    IT Management software supported
    - ASUS Control Center Express(ACCE)
  • BIOS :256 Mb Flash ROM, UEFI AMI BIOS(text-based)
  • Manageability :WOL by PME, PXE (UEFI mode)
  • Accessories :Cables
    2 x PCIe 8-pin to CPU power cables
    1 x 24-pin power cable (Y cable)
    2 x Mini DisplayPort cables
    4 x SATA 6Gb/s cables
    1 x Thermistor cable pack
    Miscellaneous
    1 x Q-connector
    1 x M.2 Q-Latch package
    1 x AMI license sticker
    4 x M.2 rubber packages
    1 x Screw package for M.2 Key E
    Documentation
    1 x ACC Express Activation Key Card
    1 x Quick start guide
  • Operating System :Windows® 11
    Windows® 10 64-bit
  • Form Factor :EEB Form Factor
    12 inch x 13 inch
    (30.5 cm x 33 cm)

SKU: WSC-965639504285

Reference ID: 12042578
