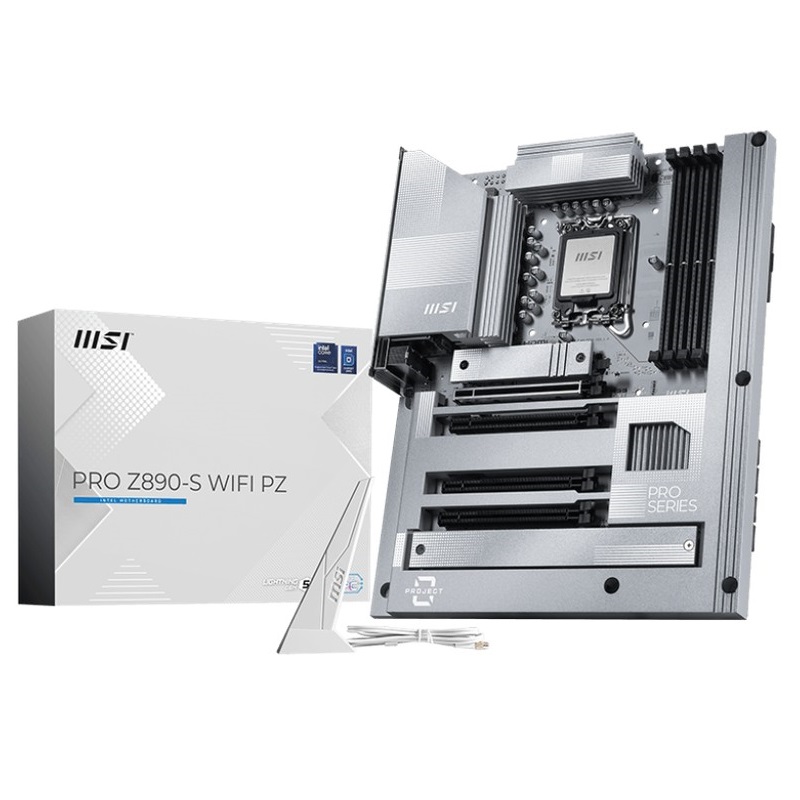

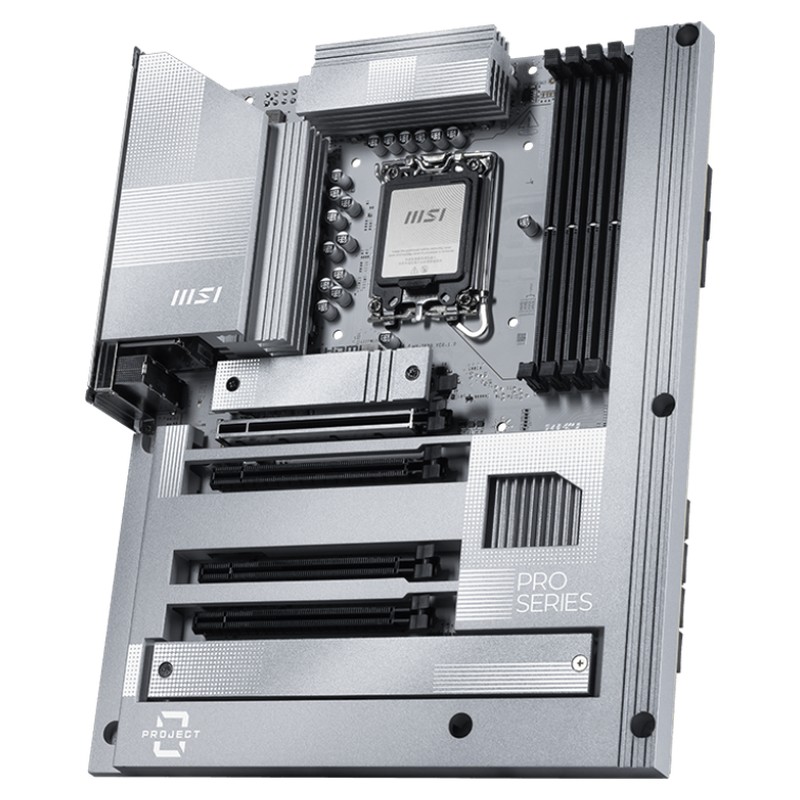

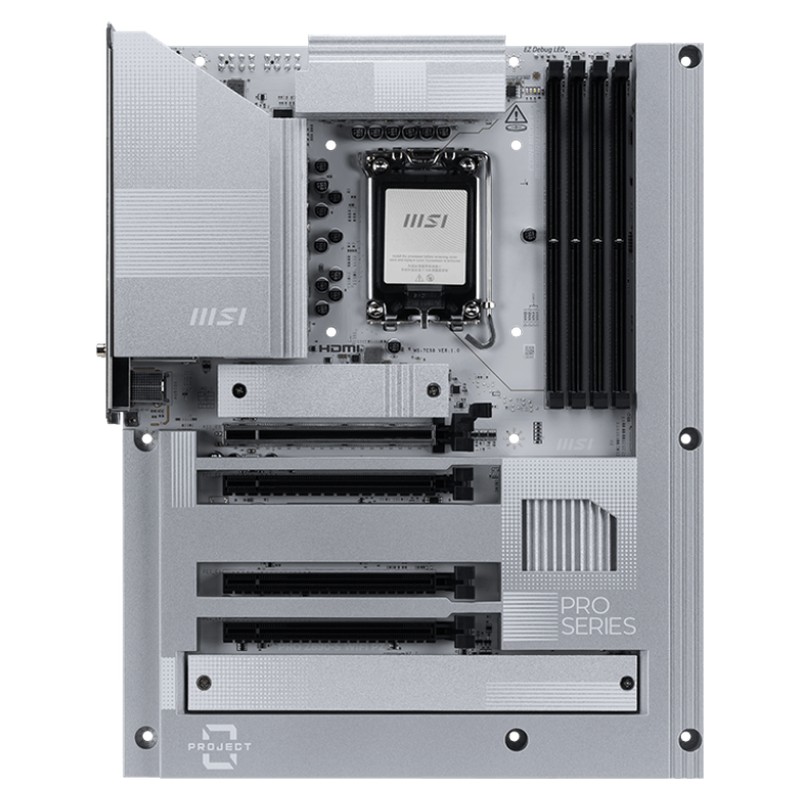

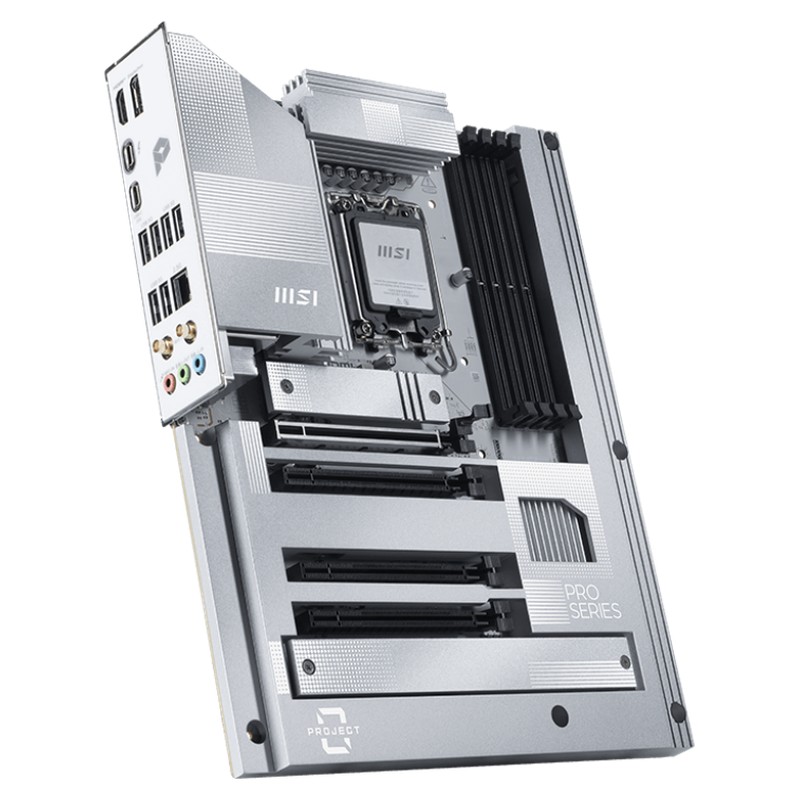

MSI PRO Z890 S WIFI PZ Intel ATX Motherboard

PRO Z890-S WIFI PZ Intel LGA1851 motherboard delivers simple silver design, including Wi-Fi 7, 2.5G LAN, Thunderbolt 4, PCIe 5.0, and M.2 Gen5. Designed for AI-PCs and EZ DIY, it's the top Z890 ATX back-connect motherboard for Intel Core Ultra processors

Features:
  • Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket
  • Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
  • Enhanced Power Design:12+1+1+1 Duet Rail Power System with P-PAK , dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer server-grade PCB
  • Frozr Guard:Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop experience
  • EZ DIY:EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
  • Lightning Fast Game experience:PCIe 5.0 slot and Lightning Gen 5 x4 M.2
  • Thunderbolt 4:brings Thunderbolt to USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chain, Multi-Port Accessory Architecture and USB 4.0 compliant 2.5G LAN with Intel Wi-Fi 7 Solution: upgraded network solution for professional and multimedia use, delivering secure, stable, and high-speed networking Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • 2.5G LAN with Intel Wi-Fi 7 Solution:upgraded network solution for professional and multimedia use, delivering secure, stable, and high-speed networking
  • Audio Boost:Reward your ears with studio grade sound quality for the most immersive gaming experience
Specifications:
  • Chipset :INTEL Z890
  • CPU :Supports Intel Core Ultra Processors (Series 2)
    LGA 1851
  • Memory :4x DDR5 UDIMM, Maximum Memory Capacity 256GB
    Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
    Max. overclocking frequency:
    1DPC 1R Max speed up to 8800+ MT/s
    1DPC 2R Max speed up to 7200+ MT/s
    2DPC 1R Max speed up to 6400+ MT/s
    2DPC 2R Max speed up to 5600+ MT/s
    Supports Intel
    POR Speed and JEDEC Speed
    Supports Memory Overclocking and Intel
    XMP 3.0
    Supports Dual-Controller Dual-Channel mode
    Supports Non-ECC, Un-buffered memory
    Supports CUDIMM
    The DIMM slots on this motherboard have double-sided latches.- Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product's Support page or visit Official MSI Website.
  • Onboard Graphics :1x HDMISupport HDMI 2.1, maximum resolution of 4K 60Hz*1x DisplayPortSupport DisplayPort 1.4, maximum resolution of 4K 60Hz*1x Type-C DisplayPortThunderbolt 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
  • Slot :4x PCI-E x16 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
    PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU)
  • Audio :Realtek
    ALC897 Codec
    7.1-Channel High Definition Audio
  • Storage :3x M.2
    M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices
    M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
    M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
    4x SATA 6G
    *Please refer to the manual for M.2 SSD heatsink restrictions.
  • RAID :Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
  • Onboard Thunderbolt :1x Thunderbolt4 ports (Rear)
    Supports up to 40Gbps transfer rate with Thunderbolt devices
    Supports up to 20Gbps transfer rate with USB4 devices
    Supports up to 10Gbps transfer rate with USB 3.2 devices
    Supports up to 5V/3A,15W power charging
    Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
    Supports up to 8K display
  • USB :4x USB 2.0 (Front)6x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)1x USB 20Gbps Type C (Rear)1x USB 20Gbps Type C (Front)
  • LAN :Realtek
    8125D 2.5Gbps LAN
  • Internal IO :1x Thunderbolt5 card connector(JTBT5, support RTD3)
    1x Power Connector(ATX_PWR)
    2x Power Connector(CPU_PWR)
    1x Power Connector(PCIE_PWR 8pin)
    1x CPU Fan
    1x Combo Fan (Pump_Sys Fan)
    4x System Fan
    1x EZ Conn-header (JAF_1)
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x Tuning Controller connector(JDASH)
    3x Addressable V2 RGB LED connector (JARGB_V2)
    1x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports
    2x USB 5Gbps Type A ports
    1x USB 20Gbps Type C ports
  • WIRELESS LAN & BLUETOOTH :Intel
    Wi-Fi 7
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
    Supports Bluetooth
    5.4**, MLO, 4KQAM
    * 6GHz band support may depend on every country's regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
  • LED FEATURE :4x EZ Debug LED

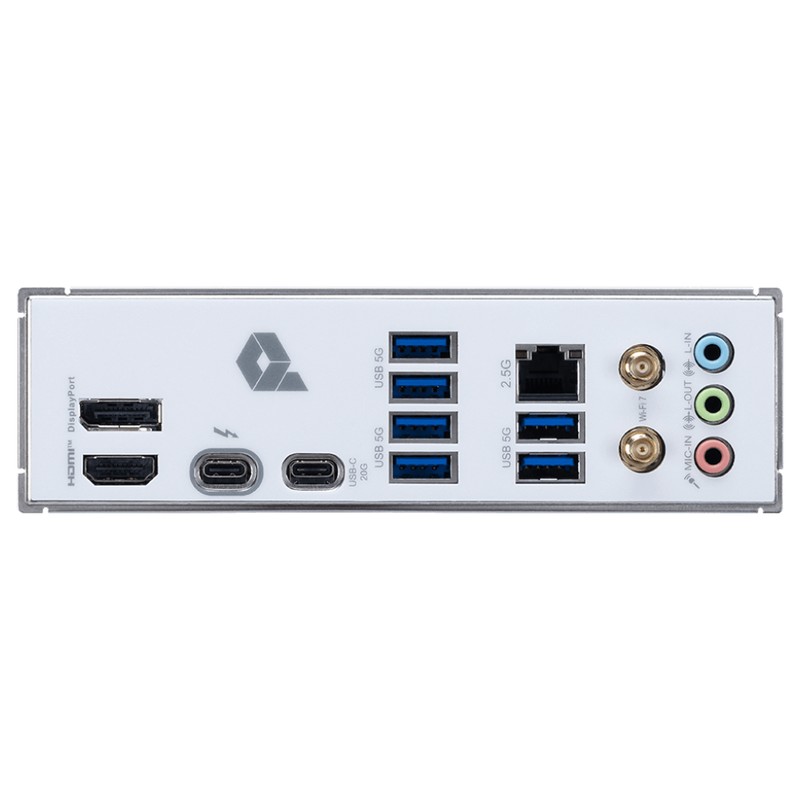

  • BACK PANEL PORTS :DisplayPort
    USB 5Gbps Type-A
    2.5G LAN
    Wi-Fi / Bluetooth
    Audio Connectors
    HDMI
    Thunderbolt 4 40Gbps (Type-C)
    USB 20Gbps Type-C
  • OPERATING SYSTEM :Support for Windows
    11 64-bit
  • PCB Info :ATX
    243.84mmx304.8mm

GTIN: 906425131438
