PRO2 PRO1183 IR Repeater Kit Six Emitter Output Connections IR REPEATER KIT

PRO2 PRO1183 IR Repeater Kit Six Emitter Output Connections IR REPEATER KIT

Price	$61.95
	Collect 61 Everyday Rewards points Create a MyDeal Account or Login to link your card
Shipping	Unable to calculate delivery for , please Contact Us Delivery unavailable to Change
	24-48 hour dispatch See delivery details

Quantity

Add to wishlist

Overview

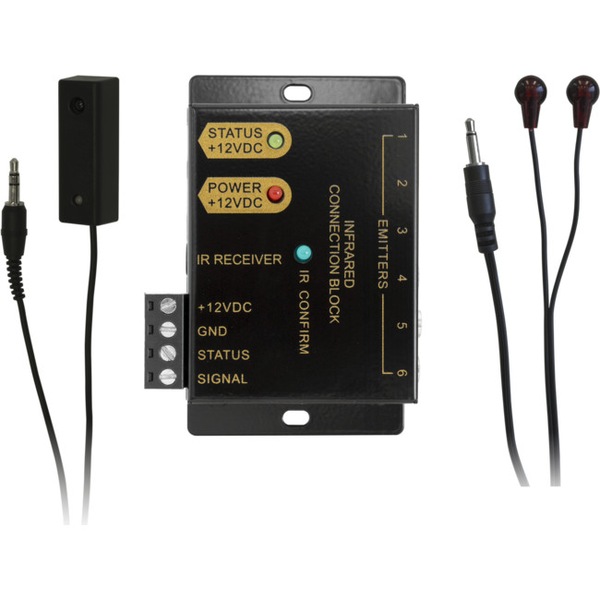

Infrared connecting block
Connects IR receivers, power supply and emitters together to interface the IR system to the audio/ video components.
- Six emitter output connections
- Convenient IR confirmation LED
- Status power receptacle with LED indicator
- 3 conductor 1/8" receptacle for interfacingwith many brands of free standing IR receivers
- Compact size for mounting near audio equipment
- 82 (W) x 60 (H) x 27 (D) mm
- 110 g
Mini stick infrared receiver
Receives IR signals from a handheld IR remote control and relays this signal to the audio/video equipment for operation from another room. The receiver has a non-skid base and is placed on a flat surface.
- CFL friendly - allows installation in areas with compact fluorescent lighting.
- Blue IR confirmation LED
- Wide band IR
- 3 m cable with 3.5 mm stereo mini plug
Infrared emitter
- Round shape, with elegant & compact size
- Transparent housing
- 10ft cable length
- 3.5mm standard mono plug
- With self-adhesive tape for quick and easy fixing on any hard, clean and dry surface
12 V 200 mA power supply

Associated product

Connection Diagrams

Click for a larger version

Wired connection from the PRO1178A to the connecting block
Click for a larger version

Specifications

IR Receiver

Foxtel Compatible
- Receive Frequency Range: 34 KHz ~ 60 KHz
- Transmit Frequencies: 38 KHz ~ 56 KHz
Range:
- 12 metres (40 ft) @ 38 KHz
- 7.6 metres (25 ft) @ 56KHz
Power: 12V DC 30mA max.
45 (L) x 14 (W) x 13 (H) mm
Cord Length: 3 metres (10 ft)
Connector Type: 3.5mm TRS mini plug
Weight: 28 g

FAQ

What are the distance restrictions when running IR from this device?: We tested the Pro1183 IR block to the Pro1140 Inwall IR receiver. Between the devices, we used 50m of Pro2 patch leads and a total of 3 cat5e joiners (TEL5011) to simulate wall plates. The signal was passing reliably between the devices.
