Overview

PRO1323 PRO2 4-ZONE AUDIO POWER AMPLIFIER

With a diverse range of inputs, including digital (optical or coaxial) and dynamic microphone inputs, and the ability to adjust each zone's volume independently, the PRO1323 is a quick and easy way of adding audio in up to four rooms. It also features a Loop-out for expanding to another unit, increasing the number of zones further.

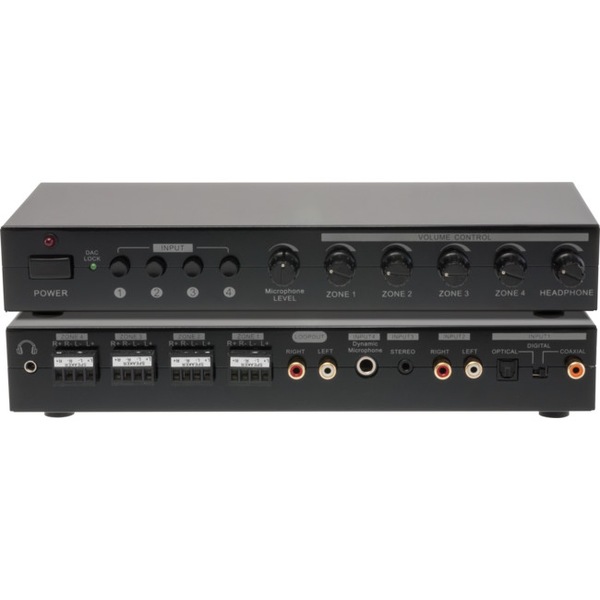

Four-in and five-out
- IN: 1 × Digital (Optical / Coaxial selectable), 1 × RCA Stereo, 1 × 3.5mm Stereo, 1 × Dynamic Microphone input
- OUT: 4 × Speaker output + 1 × Headphone output
Built-In audio digital to analogue converter (DAC)
- Audio DAC Lock indicator
Independent microphone level control
Individual speaker volume control
Provides line loop-out for expanding to more zones
Large detachable terminal block (supplied) for quick and easy installation
- Screw terminals handle wire sizes from 24 to 12 gauge

Specifications

Speaker Audio Power Amplifier (×4)

Amplifier Type	Stereo Class-D
Output Power	15W (RMS) per channel (@ RL = 4 (Ohm))
THD+N	0.06% (@ RL = 8 (Ohm), f = 1 kHz)
Minimum Load Resistance	4 (Ohm)
Other	Includes Speaker Protection Circuit

Earphone Audio Power Amplifier

Output Power	105mW (RMS) per channel
THD+N	0.05% (@ RL = 16 (Ohm), f = 1 kHz)
Minimum Load Resistance	16 (Ohm)

Power & Dimensions

Power Consumed	9A Max

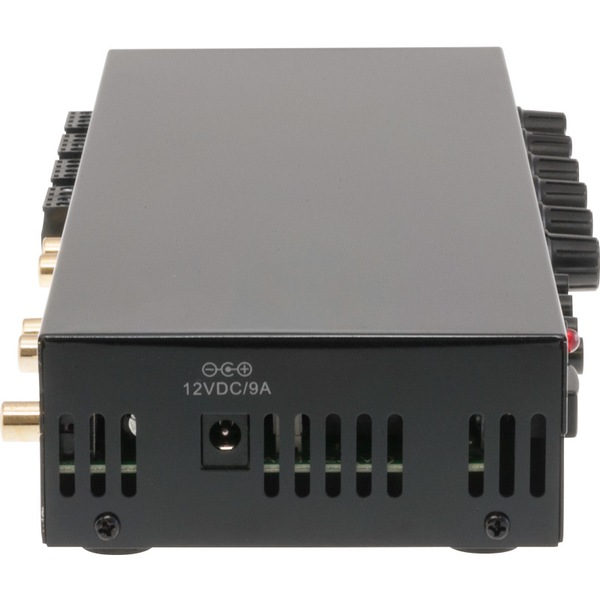

Power Source	12V DC (Included)
Size (L×W×H)	285mm × 128mm × 43mm
Net Weight (Unit Only)	0.8kg
