PRO2 HDMIKVMIP HDMI Kvm Over IP Extender Over Fibre

PRO2 HDMIKVMIP HDMI Kvm Over IP Extender Over Fibre

Hurry! 3 items left!

$902

Collect 902 Everyday Rewards points

Log in to MyDeal to link your card

Sold & shipped by Radio Parts

Secure ways to pay at checkout

Overview

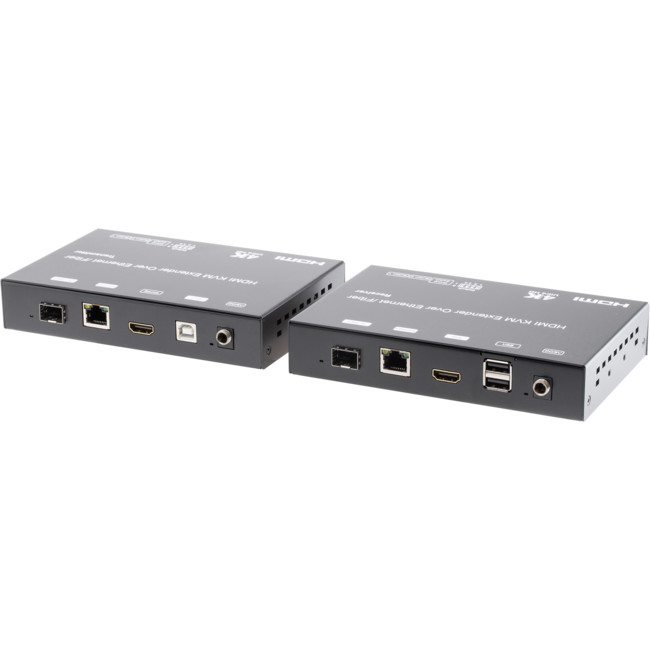

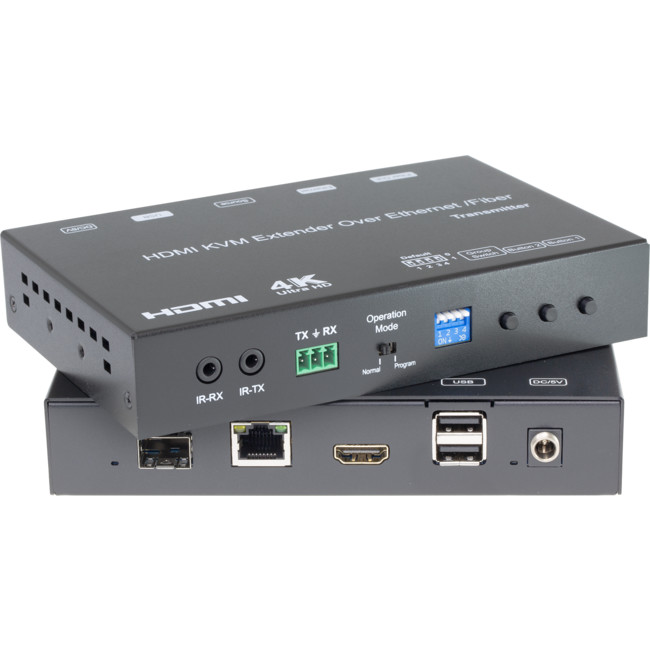

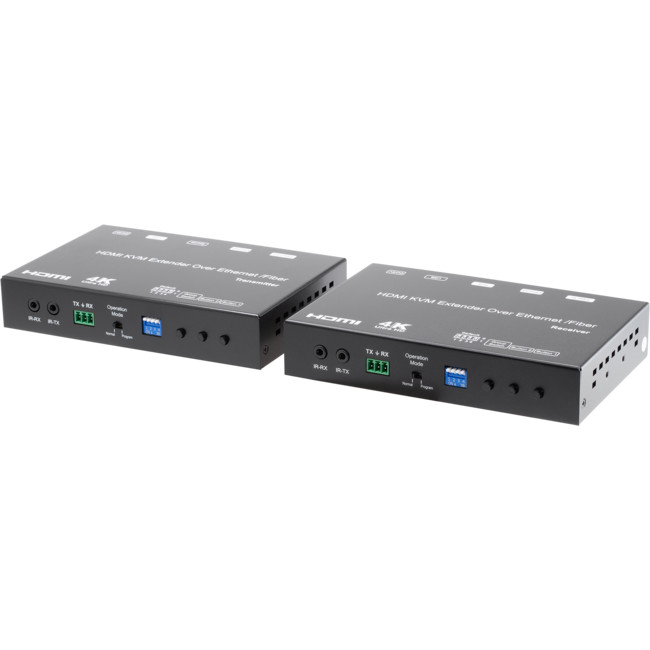

PRO2 HDMIKVMIP 4K HDMI & USB Over IP Extender

This extender transmits high-quality audio, video, and USB signals over a Local Area Network (LAN). Designed for KVM extension, it supports multiple configurations, including point-to-point, point-to-multipoint, and multipoint-to-multipoint setups, as well as video wall broadcasting. Simple installation using a Gigabit Ethernet switch (with IGMP support) and CAT5e/6 cables for extension. It is managed via USB, RS232, IR, or web browser to deliver UHD high-resolution video extension over an IP network.

4K UHD HDMI over IP extension.
USB 2.0 over IP extension.
RS232 bi-directional extension and RS232 control.
4-bit switch for 16 stream channel selection.
Supports Dolby True HD, DTS-HD Master Audio.
Supports 2-way Wide Band IR extension (38kHz~56kHz).
Transmit over single CAT5e/6 cable up to 120m.
Transmit over Fiber Optical cable up to 60km (Single Mode).
Networking environment under Giga Ethernet switch and CAT5e cable.
Point to point extension, Unicast, Multicast and Video Wall system (Max 8×16).
Output video rotation.
Output video partial enlargement.
HDCP 1.4 compliant.

Note: When transmitted over Fiber, 4K×2K requires a minimum 3.125G module.

Specifications

PERFORMANCE	Protocol	TCP, UDP, RTSP, RTP, DHCP, IGMP, Multicast, IPV4
Supported Video Formats	4K @ 30Hz, 1080P/1080i/720P/576P/576i/480P/480i
Supported Audio Format	Stereo 192Kbps
HDCP	Compliant
IR Frequency	38kHz~56kHz
RS232 Baud Rate	Default 115200bps, total 8 kinds optional
IP & GROUP ID SETTING	Default IP	Automatic allocation
Group ID	(Group 00 ~ Group 15) by DIP Switch
Request for Switch/Router	Support IGMP, support DHCP
TRANSMITTER CONNECTORS	Input	1 × HDMI Female Port 1 × USB Type-B
Output	1 × RJ45 Output 1 × Fiber Output
RS232	Phoenix RS232 port
IR	1 × IR TX Port 1 × IR RX Port, supports 38K-56kHz
RECEIVER CONNECTORS	Input	1 × RJ45 Input 1 × Fiber Input
Output	1 × HDMI Female Port 2 × USB Type-A
RS232	Phoenix RS232 Port
IR	1 × IR TX Port 1 × IR RX Port, supports 38K-56kHz
ENVIRONMENT	Operating Temperature	−5°C to +35°C (+23°F to +95°F)
Operating Humidity Range	5%~90% RH (No Condensation)
GENERAL	Power Supply	5V DC
Power Consumption	3W Max.
Dimensions	TX: 160mm × 103.2mm × 30mm RX: 160mm × 103.2mm × 30mm
Net Weight	TX: 472.8g RX:472.3g

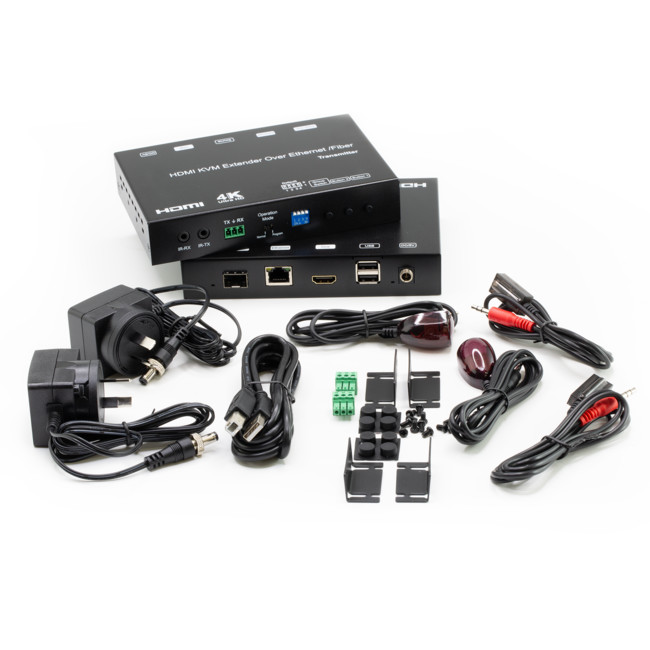

Contents	HDMIKVMIP Transmitter & Receiver 2 × 5V DC 2A Power Adapter 2 × IR TX Cables 2 × IR RX Cables 1 × USB-A to USB-B Lead 2 × Phoenix Plugs for RS232 Cable Termination 8 × Screws 4 × Detachable Mounting Ears Operating Instructions, Manual, Disc
