PRO2 HDMIMX44V2 4X4 Hdmi2.0 18Gbps 4K60 Matrix Downscaler Audio Extractor Hdr

Image 1
Image 2
Image 3
Hurry! 1 items left!
$406

Collect 406 Everyday Rewards points

Log in to MyDeal to link your card
Sold & shipped by Radio Parts
Secure ways to pay at checkout

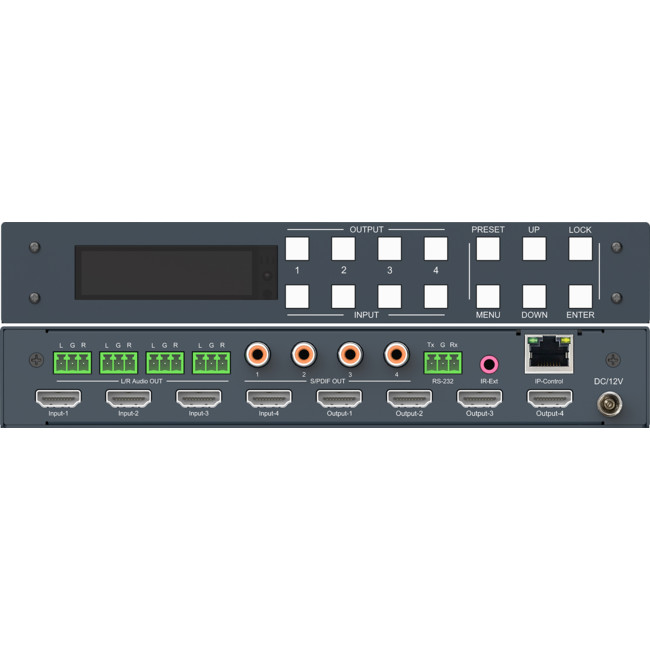

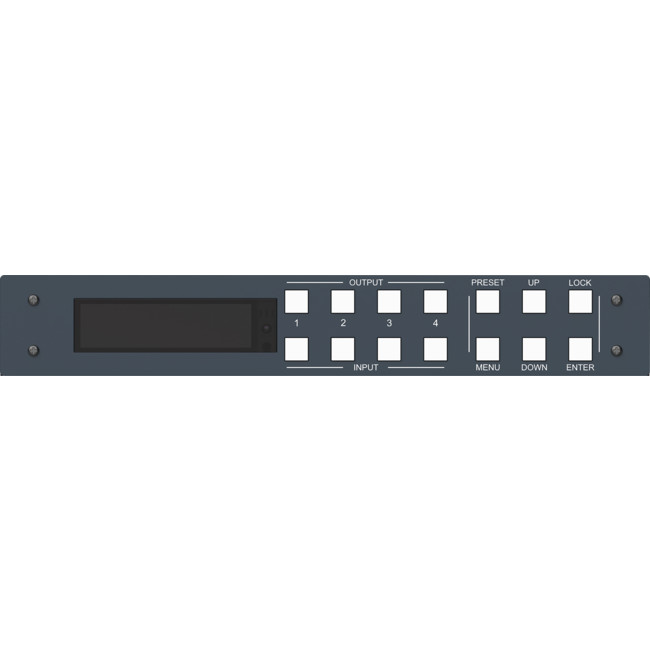

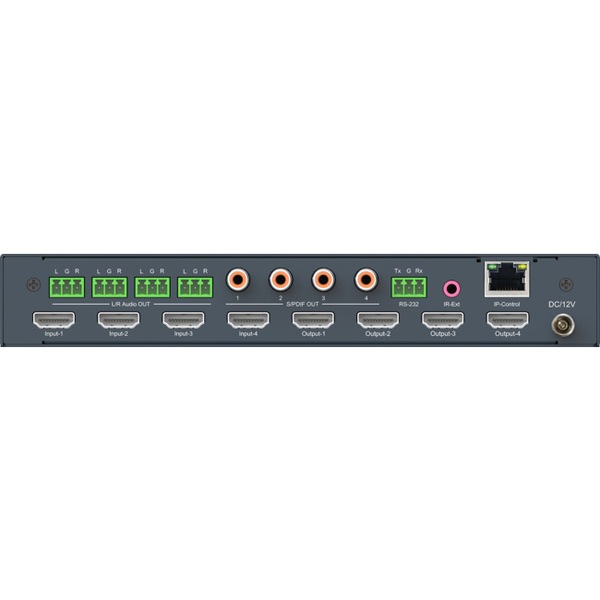

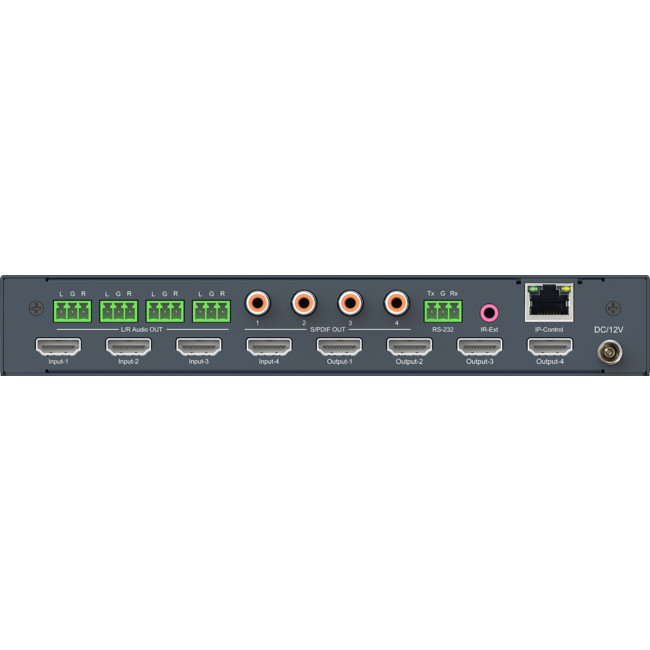

HDMIMX44V2 4x4 HDMI Matrix with 18Gbps Bandwidth and Audio Extraction

This 4x4 HDMI matrix with 18Gbps bandwidth and audio extraction is a cutting-edge device designed to manage and distribute high-quality audio and video signals across multiple sources and displays independently. Supporting 4K resolution at 60Hz, this advanced HDMI matrix ensures stunning visual clarity and smooth performance, making it perfect for home theaters, gaming setups, conference rooms, and professional AV environments.

The audio extraction feature further enhances its capabilities, allowing you to send audio to an external sound system, such as a receiver, soundbar, or speakers, for a superior audio experience. By maintaining video quality while routing audio separately, this HDMI matrix ensures that both audio and video are optimized for their respective outputs, providing the best possible AV performance.

Additionally, this HDMI matrix offers multiple control options, including IR control for long-distance operation, RS232 control, panel button control, TCP/IP control, and Web GUI control. These versatile control methods make it easy to manage and configure the matrix in any setup, whether for home entertainment, corporate environments, or professional AV installations.

Features
  • HDMI 2.0 version (Support 4K@60Hz YUV4:4:4)
  • Bandwidth upto 18Gbps
  • HDCP1.4/2.2 compliant
  • Support HDR10, HLG, Dolby vision
  • 4xHDMI Input, 4xHDMI output with 4xSPDIF coaxial Audio and 4xAnalog Audio
  • Any one of the 4 Ultra HD sources to any one of the 4 Ultra HD displays
  • Support IR control for long distance; RS232 control, Panel Button control, TCP/IP control and Web GUI Control
  • Support PCM2.0, Dolby True HD and DTS-HD master audio, LPCM7.1, audio sampling rate up to 192KHZ.
  • Support analog and S/PDIF audio extraction
  • Support EDID management and EDID study
  • Support firmware updating through RS232 port
Specifications
Operating Temperature  0°Cto+40°C(+32°Fto+104°F)
Operating Humidity  5 to 90%RH (No Condensation)
Max resolution  4K@ 60hz YUV4:4:4
HDCP Compliant  HDCP2.2 and HDCP1.4
Output Video  HDMI2.0 and HDMI 1.4
Audio Format Supported  PCM2.0,Dolby True HD and DTS-HD master audio, LPCM7.1
RS-232 serial port  3PIN terminal block connectors
Ethernet port (IP control)  RJ45, female
IR Ext port  1x3.5mm stereo jack
Bandwidth  18 Gbps
Default IP  192.168.1.168
Dimensions (WxHxD)  L216.2 X W128.5 X H34 mm
Net Weight  0.47kg
Power consumption  14W (Max)
What is in the box?
  • HDMI Matrix x 1pc
  • 12V 2A DC power supply x 1pc
  • IR Remote control x 1pc
  • IR Ext RX Cable x 1pc
  • Phoenix plugs for RS232 cable termination & L/R Audio termination x 5pcs
  • CD for control software & user manual x 1pc
