| Price |
$349
|
|---|---|
Earn 3x points and collect 1047 Everyday Rewards points.
Promotion ends 16/05/2024.
Create a MyDeal Account or
Login to link your card
|
|
| Shipping |
|

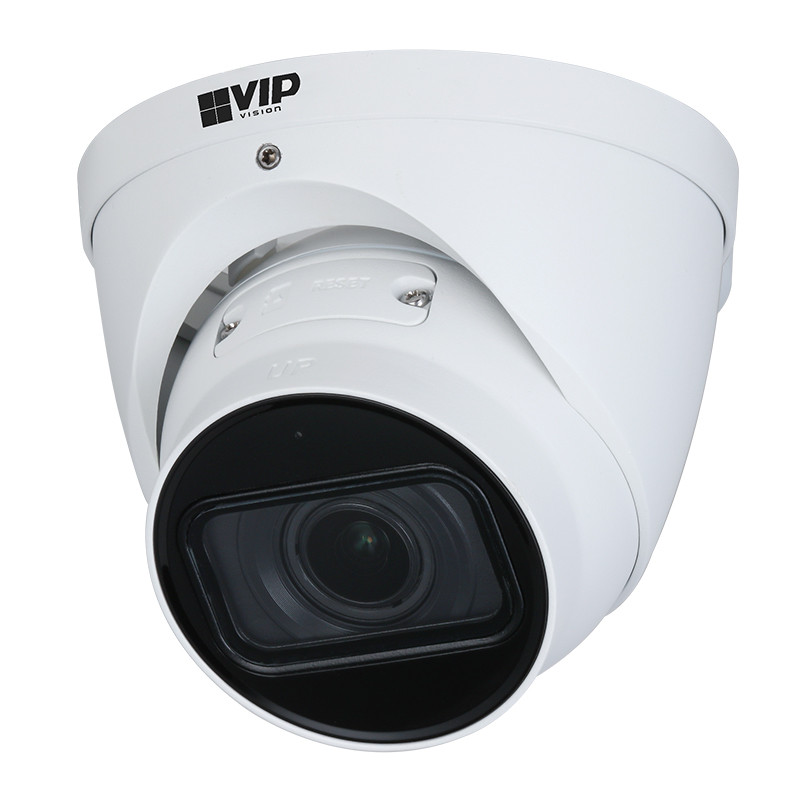

Featuring intelligent perimeter protection, the VSIPP-4DIRMG-I identifies people & vehicles during motion detection to filter out false alarms, providing reliable real-time alerts and analytics. Achieving high quality video evidence with colour in low light & true WDR, the series excels at outdoors motion detection applications.
Camera features:
* Stream up to 4.0MP (2688 x 1520) at 20fps
* 2.7 ~ 13.5mm motorised lens with 104 ~ 27o viewing angles
* H.265 encoding for efficient storage & streaming
* Up to 40m infrared range; true day/night (auto ICR)
* MicroSD slot for recording at the edge up to 256GB
* AI powered perimeter protection video analytics
* Set up AI powered tripwire & intrusion rules, receive alerts and search footage by people or vehicles
* Back/highlight compensation & true WDR (120dB)
* 3D digital noise reduction & auto white balance
* IP67 weather rated housing for outdoor use
Specifications
Camera
Image Sensor
1/3'' 4.0MP Progressive Scan CMOS
Effective Pixels
2688 (H) x 1520 (V)
RAM / ROM
512MB / 128MB
Min Illumination
0.005 Lux/F1.5 (Color)
S/N Ratio
> 50dB
Infrared System
2 x Infrared LED, 40m range, Auto/manual on/off control
Lens
Lens / Iris
2.7 ~ 13.5mm F1.5 Motorised Varifocal Lens with Fixed Iris
Field of View
Horizontal: 104o~27o, Vertical: 55o~15o (5x Optical Zoom)
Focus
Auto Focus / 0.8m Min. Focus Distance
DORI
Detect (25px/m)
64m (wide) / 220m (tele)
Observe (63px/m)
26m (wide) / 88m (tele)
Recognise (125px/m)
13m (wide) / 44m (tele)
Identify (250px/m)
6m (wide) / 22m (tele)
Video
Resolution
4.0MP (2688 x 1520) to CIF (352 x 288)
Frame Rate (Main)
4.0MP (1 ~ 20fps) / 3.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
720p (1 ~ 25fps)
Video Compression
H.265 / H.264 / H.264B / MJPEG
Bit Rate
H.265: 12 ~ 6144Kbps / H.264: 32 ~ 6144Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0o, 90o, 180o, 270o)
IVS
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Perimeter Protection
Tripwire, Intrusion (recognition of human or vehicle)
Face Detection
N/A
Face Attributes
N/A
People Counting
N/A
Heat Map
N/A
Event Trigger
N/A
Intelligent Search
Search tripwire / intrusion events by people or vehicle (requires AI NVR)
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
Streaming Method
Unicast / Multicast
Max. User Access
20 Users
Interface
Video Interface
N/A
Audio Interface
Built-in Mic / Audio Compression - G.711a; G.711Mu; G726; AAC
Alarm Interface
N/A
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / NAS
Interoperability
ONVIF / P2P / CGI / Milestone / Genetec
Environmental
Power Supply
12VDC / PoE (802.3af)
Power Consumption
<6.5W
Operating Conditions
-30oC ~ +60oC / 95% RH
Ingress Protection
IP67
Vandal Resistance
N/A
Housing
Metal
Pan/Tilt/Rotation
Pan: 0o ~ 360o, Tilt: 0o ~ 78o, Rotation: 0o ~ 360o
Dimensions
O122mm x 108mm
Net Weight
0.68kg
Other
Series
Professional AI Series Cameras
Warranty (Years)
4
