Professional Thickness Tester Ultrasonic Thickness Gauge Handheld LCD Digital Depth Meter

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7
Limited Stock
$134.98

Collect 134 Everyday Rewards points

Log in to MyDeal to link your card
Free Shipping
Take 10% Off Purchases Over $100
Exclusive to Emutree Group Pty Ltd products only. Expires 11.59pm 11/07/2025. Excludes Shipping.
Sold & shipped by Emutree Group Pty Ltd
Secure ways to pay at checkout
This professional ultrasonic thickness gauge is an intelligent handheld thickness tester, which adopts ultrasonic measuring principle, and is controlled by micro processor, provides quick and precise measurement of thickness for most of industrial material. This ultrasonic

thickness gauge is widely used in various precise measurement for different hardware / parts in industrial realm. One of its important application is to monitor the level of thickness-decreasing during operation of various and pressure container.



Specifications:

Brand Name:

Color: White + Black

Material: ABS PLastic

Display: LCD Backlight 4 Digits Display

LCD Size: 45 * 53mm / 1.77 * 2.09in

Minimum Display Unit: 0.1mm

Measuring Probe: ∅10mm 5MHz

Measuring Range: 1.2��225mm (Steel)

Minimum Limit for Tube Measuring: 20*3mm (Steel)

Accuracy: ±(1%H+0.1)mm, H dtes the measured thickness

Resolution: 0.1mm

Working Frequency: 5MHz

Sound Velocity Range: 1000��9999m/s, When the given thickness is over 20mm, the accuracy is ±5%; when the given thickness is less than 20mm, the accuracy is: ±1mm/H-100%

Operation temperature/humidity: 0 �� 40��, ��90%RH

Power Supply: 3 * 1.5V AA Battery(NOT Included)

Item Size: 66 * 30 * 160mm / 2.60 * 1.18 * 6.30in

Item Weight: 146g / 5.14oz

Package Size: 25 * 21 * 6cm / 9.84 * 8.27 * 2.36in

Package Weight: 647g / 22.81oz



Package List:

1 * Ultrasonic Thickness Gauge

1 * Φ10mm 5MHz Transducer

1 * 4mm Sampling Block

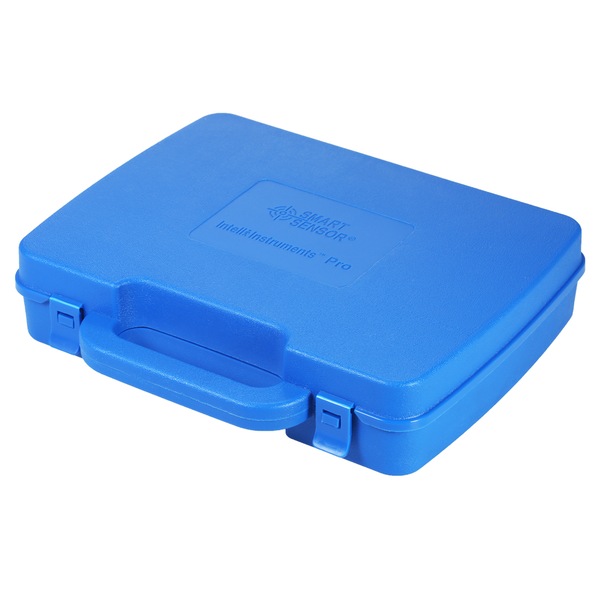

1 * Storage Box

1 * User Manual

GTIN: 777816493776
