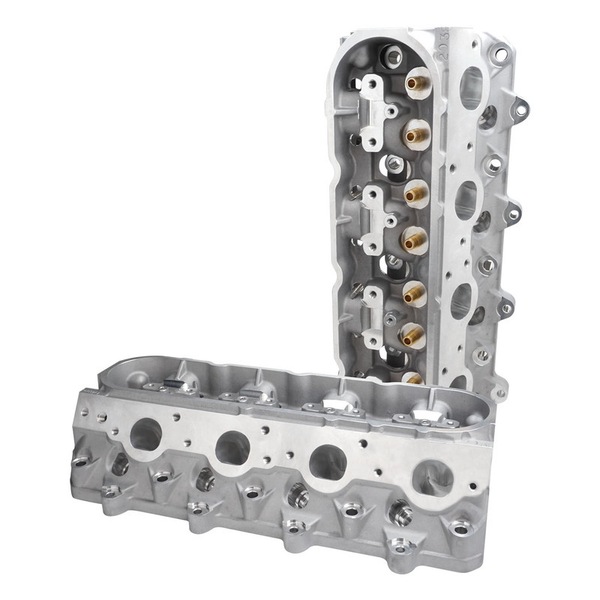

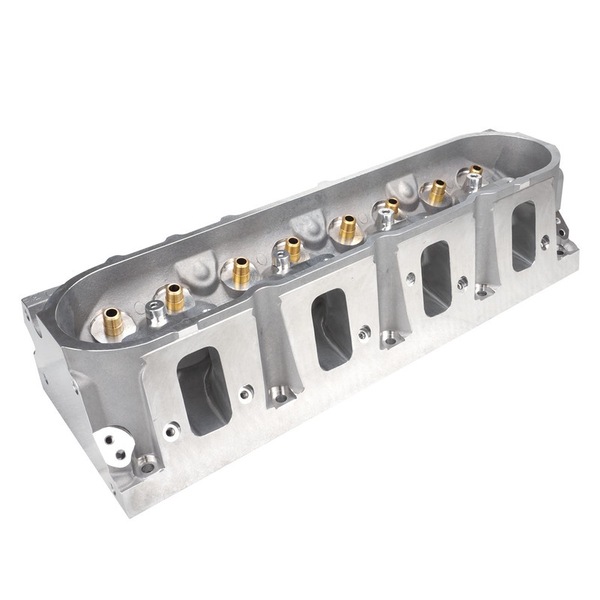

Proflow Cylinder Heads LS SuperMax 276 Aluminium Bare Cylinder (6-Bolt ) LS3/L76/L77/L92/L98/LSX 275cc Intake 70cc Chamber CNC Ported Pair PFEAHCLS3-276-6BOLT-PORT

Image 1
Image 2
Image 3
$2073.83

Sold Out

Notify me when this product is back in stock

To understand how we handle your personal information, see our Privacy Collection Notice and Privacy Policy.

Shop More Products
Sold & shipped by Speed Parts
Proflow does not sacrifice quality for a low price- you get both with our aluminium cylinder heads. Our LS3 cylinder heads are designed for street / race performance engines to give the ultimate in flow at a competitive price. Cast from A356 aluminium, these 15° LS3 rectangle port heads are designed to fit LS series engines with a 4.00" or larger bore. These bare 275cc heads accept 2.165" diameter intake valves and 1.60" exhaust valves and have a 0.625" deck thickness. Suits 6-bolt standard or LSX block designs. Specifications: Material: A356 Aluminium Combustion Chamber: 70cc Intake Port Volume: 275cc Intake Port Dimension: 1.285" x 2.60" Exhaust Port Volume: 90cc Exhaust Port Dimension: 1.47" H x 1.64" W Spark Plug Location: OE Intake Valve Diameter: 2.165" x 4.89" Exhaust Valve Diameter: 1.59" x 4.89" Valve Stem Diameter: 8mm Valve Spring Pocket I.D.: 1.30" Valve Guide Material: Manganese Bronze Valve Guide O.D.: 0.502" (.560" at base) Rocker Design: LS3 Rails required Valve Angle: 15° Deck Thickness: 0.625"

SKU: PFEAHCLS3-276-6BOLT-PORT

Reference ID: 8801945
